SB300

Features | Documents | Accessories | Related Products

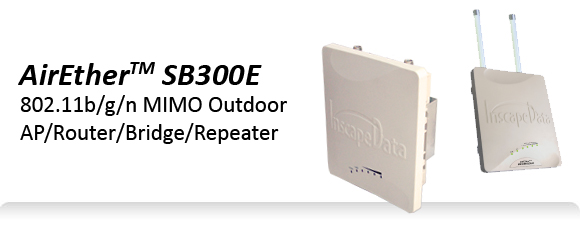

Inscape Data's AirEther™ SB300E 802.11b/g/n 2x2 MIMO Outdoor AP/Router/Bridge/Repeater System is designed for long-range wireless broadband access solution for fixed or mobile networks. Based on the IEEE 802.11b/g/n standards operating on 2.4GHz frequency, the AirEther SB300E is the ideal cost-effective solutions for campus or city wide wireless to support WiFi enabled smart phones, tablet computers, notebook computers, and mobile devices. The SB300E product is capable of operating in multiple modes including: access point bridge, access point router, bridge, and repeater. The SB300E offers two external type N antenna connectors. The ruggedness of IP68 rated enclosure and extreme temperature ratings along with host of product features makes the AirEther SB300E the product choice for Wifi mobility applications.



Our AirEther wireless products are designed with the Power over Ethernet (PoE) feature, which allows power and data transmitted over a single network cable. This capability provides for simple, convenient installation. When you use with one of the Inscape Data LPS1000/2000/3000 Outdoor PoE Switch products and network with any of the NVC Series Cameras, all the wireless devices and the cameras are networked within a single outdoor LAN (local Area Network). It becomes much easier to manage, integrate, install, maintain, and troubleshoot. Based on Inscape Data's patent-pending technology, our new Outdoor PoE Switch greatly lessens challenges for outdoor LAN design, integration, and deployment.

» Key Features

Key Features

» Documents

Datasheet note

Datasheet

Application Note



» Accessories

MB001

2x2 MIMO Dish Antennas

MB0001

Mast Mounting Kit

Outdoor Ethernet Cable Low Loss Antenna Cable

WC Series Outdoor UV protected Cat5
Network Cable

AC100 Low Loss Antenna Cable

Highly Recommended Surge Suppressors!
PIS200

PIS100



PIS200 2-Port PoE DC Injector with Surge Suppressor

PIS100
1-Port Ethernet
Surge Suppressor







» Related Products

LPS1000

LPS2000/3000-T2 BR300SB300

LPS2000/3000-T1

Outdoor 5-Port Gigabit Managed and Non-Managed

PoE Switches

LPS2000/3000-T2

Outdoor 5-Port Gigabit Managed and Non-Managed

PoE Switches

BR300/BR300E

802.11a/n Outdoor Wireless AP/Bridge/Router

/Repeater System





NVC

NVC IP Video
Camera Series

NVS

NVS IP Video Servers
