LinkPower2000 Outdoor Gigabit PoE Switch - 3KV Network Port Surge Protection -40~ +75°C Working Temperature IP68 Outdoor Compliant

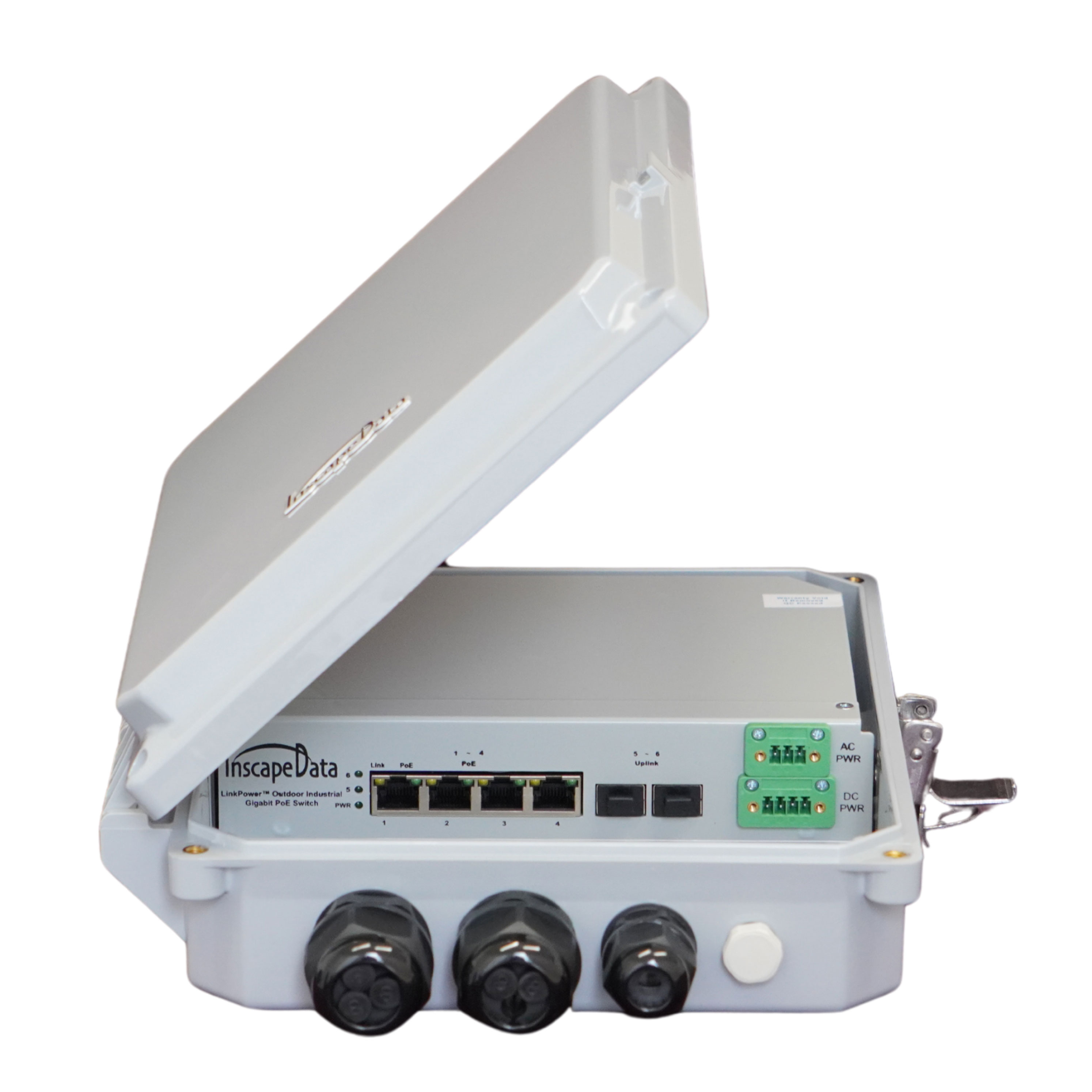

The LinkPower™ LPS2000-T1 Series is All Weather Multi-Port, i.e., 4 and 8 Port, Unmanged Gigabit PoE (Power over Ethernet) Switch with dual power output redundancy, i.e., 120V~240AC and/or 48V DC, is the industry first outdoor weatherproof ready high speed gigabit Ethernet switch that delivers data and power over one single network cable protected with an IP66/68 compliant weatherproof enclosure.  The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.  The hinged enclosure offers great convenience for outdoor network applications required frequent changes of network configuration. The PoE port output from 15.4W to 30W per port based on the models (see the model table below).


The LPS2000-T1 is designed for outdoor industrial and commercial network applications, e.g., video surveillance, remote security, wifi/wireless mesh, and telco carrier installations. Inscape Data offers two different lines of LPS2000, i.e., T1 & T2 models. The design of the T1 and T2 models are based on the different requirements of today's broad outdoor network applications, such as installation security, ease of installation, and product cost. The T1 models offer up to IP67 waterproof rating and meet higher installation security by hiding the network cable and power connectors securely inside of a weatherproof enclosure and reduce the product cost by using fewer connectors, while the T2 models offer IP68 waterproof rating and ease of installation, i.e., plug and play connectors for applications demanding rapid change of network configuration.

The key difference between the LPS2000-T1 (Type 1) models and LPS2000-T2 (Type 2) models outdoor PoE switch products is illustrated as follow:

PoE T1 T2 Differences


The LinkPower LPS2000-T1 Unmanaged Outdoor Gigabit PoE Network Switch Series offers several sub-models as shown below:


Product Line

Product Model

Model Name Description

PoE Output

LPS2000-T1 Outdoor Unmanaged Gigabit PoE Network Switch Series


Outdoor Unmanaged 10/100/1000Mbps 4-Port 802.3af/at PoE Switch with 2 SFP Fiber Uplink Ports, Up to 30W and an Average of 15.4W per PoE Port, Not to Exceed 62W for a Total of 4 PoE Ports

30W per Port / 62W Total


Outdoor Unmanaged 10/100/1000Mbps 4-Port 802.3af/at PoE Switch with 2 SFP Fiber Uplink Ports, Up to 30W per PoE Port

30W per Port / 120W Total


Outdoor Unmanaged 10/100/1000Mbps 8-Port 802.3af/at PoE Switch with Only 2 Gigabit SFP Fiber Uplink Ports, Up to 30W and an Average of 15.4W per PoE Port, Not to Exceed 150W for a Total of 8 PoE Ports

30W per Port / 150W Total


Outdoor Unmanaged 10/100/1000Mbps 8-Port 802.3af/at PoE Switch with Only 2 Gigabit SFP Fiber Uplink Ports, Up to 30W per PoE Port

30W per Port / 240W Total


The LPS2000-T1 Series All Weather 4 to 8-Port Gigabit PoE Switch is an unmanageable network switch and is designed to meet the accelerating demand for powering the most demanding outdoor PoE devices without the requirement for the management feature. In addition, the LPS2000-T1 Series All Weather Unmanaged Gigabit PoE Switch uses LED displays that show device status for easy power management and troubleshooting. The PoE Technoloy significantly reduces the installation cost by eliminating the separate power supply units for PoE enable network devices, such as Inscape Data’s IP cameras and SB3000/BR3000 wireless products, thereby reducing equipment and installation costs.


  • Dual Power Input Redundancy with 120V~240AC and/or 48V DC
  • IP66/68 Compliant All Weather Enclosure
  • MTBF:300,000 hours
  • Integrated Industrial 3KV Ethernet surge protection
  • IEEE 802.3af and 802.3at Type 2 Power over Ethernet (PoE) standard
  • 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Gigabit Power over Ethernet RJ45 ports
  • Supports 802.3af PoE Power maximum 15.4 watts and 802.3at PoE Plus maximum 30Watts and 48V DC for each PoE port
  • Internal LEDs for individual port status: Network Activity, PoE Power, & System Power
  • Full wire-speed non-blocking, 12G for LPS2400-T1 & 48G for LPS2802 T1 reception and transmission
  • 1MBit frame buffer memory and 8K entries MAC address table
  • IEEE802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
  • Supports Link Aggregation IEEE 802.3ad and fail over
  • Each SFP fiber port supports single mode (9/125um) fiber transmission, the transmission distance can be up to 25km( Default dual fiber, can be customized single fiber)
  • Supports Jumbo Frame in all speeds (up to 10K bytes packet frame size)
  • Operating Temperature:-30 Degree C ~ +70 Degree C
  • Three-Year Limited Warranty

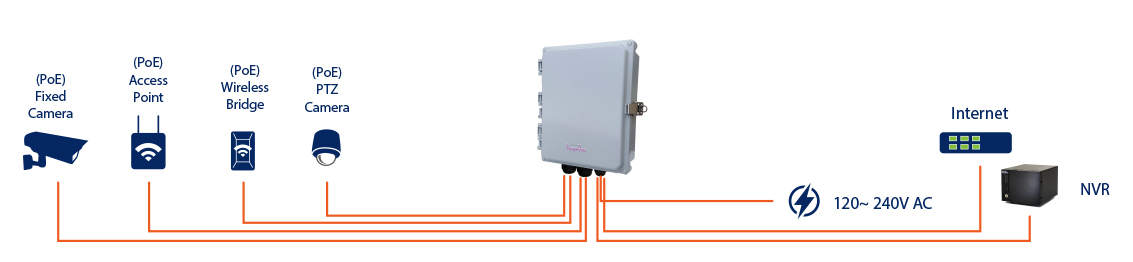

sys config

Internal View

LPS2800 internal internal



Standard Accessories

Power & Fiber Connector Kit

Power and Fiber Connector Kit

Ethernet Connector Kit

Ethernet Connector Kit


Wall Mounting Kit


AC Power Cord Kit

AC Power Cable Kit

DC Power Cord Kit

DC Power Cable Kit

Optional Accessories


Mast Mounting Kit

For LPS2400 Models



Mast Mounting Kit

For LPS2800 Models


MMK0001 MMK0001

SFP Module Accessories

SFP-Single-ModeSFP Duplex 1.25Gbps 3.3V Single-Mode Transceiver (Datasheet)

SFP-Single-ModeSFP Duplex 1.25Gbps 3.3V Multi-Mode Transceiver (Datasheet)
