home > products >poe & surge protection > lps2000-t2 & lps3000-t2

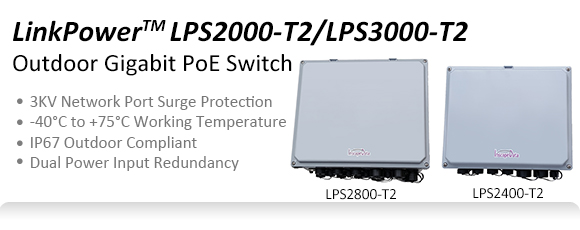

LinkPower2000 Outdoor Gigabit PoE Switch - 3KV Network Port Surge Protection -40~ +75°C Working Temperature IP67 Outdoor Compliant

The LinkPower™ LPS2000/3000-T2 Series is All Weather Multi-Port Gigabit PoE (Power over Ethernet) Switch with individual fast field attachable and detachable weatherproof Ethernet and fiber optic connectors, and the products are the industry first outdoor weatherproof high speed gigabit Ethernet switch that delivers data and power over one single network cable protected with an IP67 compliant weatherproof enclosure. The LPS2000/3000-T2 Series all weather gigabit PoE switch is designed for industrial and commercial applications, e.g., video surveillance, remote security, wireles mesh, and carrier wifi installations. The remote manageable features offered by the LPS3000-T2 Series will greatly reduce the daily maintainance cost. The LinkPower LPS2000-T2/3000-T2 models are differentiated mainly by the field installable eatherproof connectors used in the weatherproof housing, as descried below.



The key difference between the Type 1 (T1) and Type 2 (T2) outdoor PoE switch products is as follow:

PoE T1 T2 Differences



The LinkPower LPS2000-T2/3000-T2 Series offers several sub-models as shown below:



Product Line

Product Model

Model Name

PoE Port Output

LPS2000-T2 Outdoor Unmanaged Gigabit PoE Network Switch Series

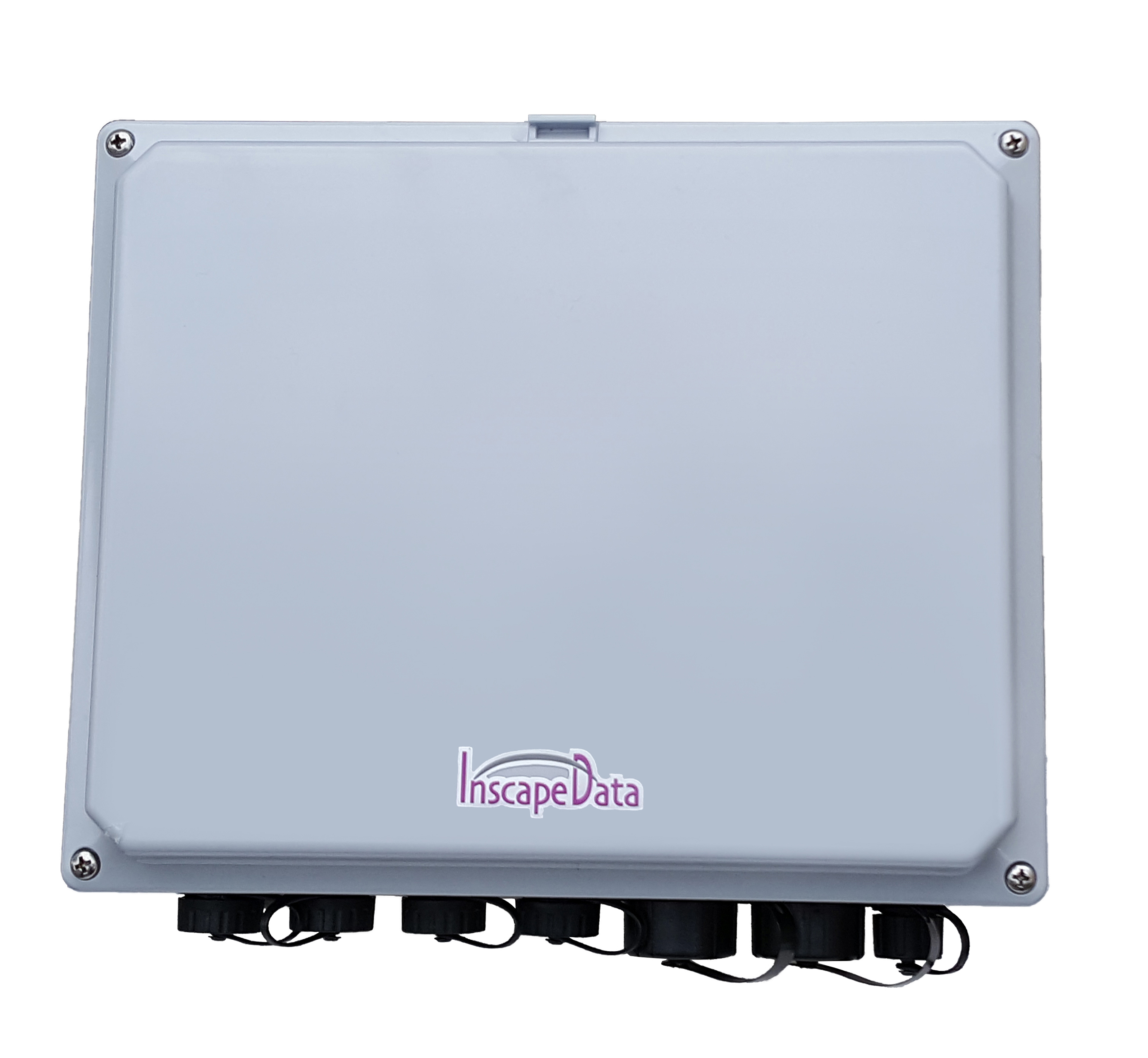

LPS2400af-T2

Outdoor Unmanaged 10/100/1000Mbps 4-Port 802.3af PoE Switch with 2 SFP Fiber Uplink Ports

15.4W

LPS2400at-T2

Outdoor Unmanaged 10/100/1000Mbps 4-Port 802.3af/at PoE Switch with 2 SFP Fiber Uplink Ports

30W

LPS2800af-T2

Outdoor Unmanaged 10/100/1000Mbps 8-Port 802.3af PoE Switch with 4 Gigabit SFP Fiber Ports and 2 Gigabit RJ45 Uplink Ports

15.4W

LPS2800at-T2

Outdoor Unmanaged 10/100/1000Mbps 8-Port 802.3af/at PoE Switch with 4 Gigabit SFP Fiber Ports and 2 Gigabit RJ45 Uplink Ports

30W

LPS3000-T2 Outdoor Managed Gigabit PoE Network Switch Series

LPS3400afm-T2

Outdoor Managed 10/100/1000Mbps 4-Port 802.3af PoE Switch with 2 Gigabit SFP Fiber Ports

15.4W

LPS3400atm-T2

Outdoor Managed 10/100/1000Mbps 4-Port 802.3af/at PoE Switch with 2 Gigabit SFP Fiber Ports

30W

LPS3800afm-T2

Outdoor Managed 10/100/1000Mbps 8-Port 802.3af PoE Switch with 4 Gigabit SFP Fiber Ports and 2 Gigabit RJ45 Uplink Ports

15.4W

LPS3800atm-T2

Outdoor Managed 10/100/1000Mbps 8-Port 802.3af/at PoE Switch with 4 Gigabit SFP Fiber Ports and 2 Gigabit RJ45 Uplink Ports

30W



The LPS3000-T2 All Weather 8-Port Gigabit PoE is a manageable network switch, while the LPS2000-T2 Gigabit PoE Switch is an unmanaged network switch with Link Aggregation, VLAN, Trunking, and QoS technology to meet the accelerating demand for powering the most demanding outdoor PoE devices. In addition, the LPS3000-T2 Gigabit Managed PoE Switch supports IEEE802.1g VLAN and port based IEEE 802.1p QoS. The LPS2000/3000-T2 Series All Weather Gigabit PoE Switch provide LED displays that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices, such as Inscape Data’s IP cameras and SB300/BR300, and SB3000/BR3000 wireless products, thereby reducing equipment and installation costs.

Features

  • Supports Dual Power Input Redundancy with 120V~240AC and/or 48V DC
  • IP67 Compliant All Weather Enclosure with individual field attached and detachable weatherproof Ethernet and optic fiber connectors
  • MTBF:190,000 hours (about 21 years)
  • Remote manageable, remote reset, auto pin, network statistics, and SNMP on all LPS3000-T2 models
  • Supports integrated Industrial 3KV Ethernet surge protection
  • 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Gigabit Power over Ethernet RJ45 ports
  • Supports IEEE802.1p QoS & IEEE802.1Q
  • Delivers the 802.3af PoE Power up to 15.4 watts and 802.3at PoE Plus up to 30 Watts 48V DC for each of PoE ports
  • Supports system power LED and reset switch
  • Full wire-speed non-blocking reception and transmission
  • 1MBit frame buffer memory and 8K entries MAC address table
  • IEEE802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
  • Supports integrated address look-up engine, automatic address learning and address aging
  • Supports link aggregation IEEE 802.3ad and fail over
  • Each SFP fiber port supports single mode (9/125um) fiber transmission, the transmission distance can be up to 25km( Default dual fiber, can be customized single fiber)
  • Supports jumbo frame in all speeds (up to 10K bytes packet frame size)
  • Supports operating temperature: -40 Degree C ~ +75 Degree C

Application Diagrams

applications

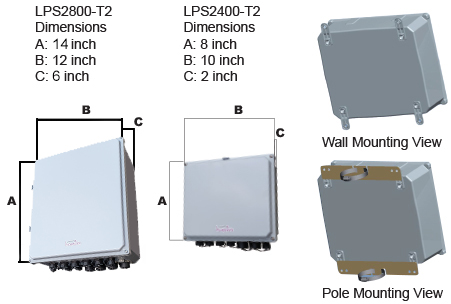

dimension drawing

Standard Accessories

WECK0001
Waterproof Ethernet
Connector Kit

Power and Fiber Connector Kit

WMK0001

Wall Mounting Kit

MMK0001

WPCK0001
Waterproof Power Cable Kit



Power and Ethernet Condult Kit



Optional Accessories

MMK0001-S

Mast Mounting Kit

Datasheet

MMK0001-L

Mast Mounting Kit

Datasheet

MMK0001 MMK0001

WRCK0001
Waterproof RJ45
Coupler Kit

WPCCK0001
Waterproof Power
Cable Couple Kit

FOWC0001
Singlemode SFP Waterproof
Connector Kit

FOWC0001
MultimodeSFP Waterproof
Connector Kit

MMK0001

SFP Module Accessories

SFP-Single-ModeSFP Duplex 1.25Gbps 3.3V Single-Mode Transceiver (Datasheet)

SFP-Single-ModeSFP Duplex 1.25Gbps 3.3V Multi-Mode Transceiver (Datasheet)
