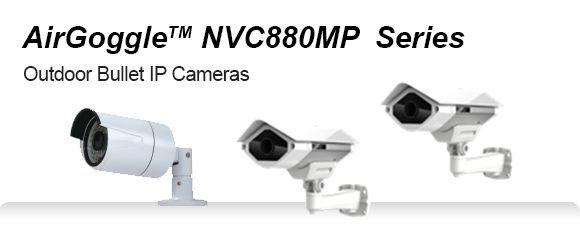

AirGoggle™ NVC880MP Series is based on H.264 and H.265 HD megapixel technology. The NVC880MP Series covers four sub-models, i.e., Standard, Professional, and Ultimate. The Professional and Ultimate models of the NVC880MP offer outdoor motorized P-Iris features. The latest H.265 compression to cut bandwidth and storage requirements in half. Edge IVS (built-in analytics) to reduce server loading and false alarms. Class-leading WDR to handle the most challenging lighting conditions. Superior low-light sensitivity that still sees when you don’t. Adaptive IR Pro that not only automatically adjusts the power of the IR illuminators, but also it’s angle, to fit the view angle of the motorized lens, which can be easily focused by the Smart Focus function, remotely of course. Built-in fan and heater allow the camera to operate in the most extreme environments (-40°C to 60°C).
The NVC880MP Series enables network cameras to provide higher resolution of video images than analog CCTV, i.e. the ability to see more details or have a wider coverage – a key consideration in video surveillance applications. With an HDTV or megapixel network camera, the resolution is at least three times better than an analog CCTV camera. Combining HD/megapixel network cameras with a selection of non-megapixel network cameras that are optimized for other needs (such as powerful optical zoom, extreme light sensitivity or low cost) creates video surveillance installations that are effective, reliable and cost-efficient.
|
|
|
|
• H.265 / H.264 and Motion JPEG compression
• Day & night functionality with automatic
• removable IR-cut filter
• 6 high performance IR LEDs and up to 40m distance
• 2.8 - 12 mm, F1.6, motorized, P-iris lens
• Smart focus system for remote focal & focus .control
• Analog video output through RCA connector
• Built-in SD card slot
• Built-in fan & heater, enabling camera in .severe environment (-40 - 60°C)
• Power over Ethernet (IEEE 802.3af/at)
• RTC with built-in battery
• Tampering detection
• 2 x alarm input, 2 x alarm output .Two-way audio, line in and line out
• IP66 rated weatherproof housing
• SSL v3 advanced HTTPS encryption
• Supports Samba network storage
• Multi-lingual user interface
• Free 32-channel NVR software |
|
|
Applications |
|
Dimensions |
NVC880MP2
NVC880MP2 Pro, NVC880MP2 ULT, NVC880MP5 ULT
|
|
|
|
|
|
|
Models and Technical Specifications |
Product Image |
|
|
|
|
Model Name |
NVC880MP2 |
NVC880MP2 Pro |
NVC880MP2 ULT |
NVC880MP5 ULT |
Camera Type |
Outdoor IR Compact Bullet |
Motorized Lens Outdoor IR Bullet |
Motorized Lens Outdoor IR Bullet |
Motorized Lens Outdoor IR Bullet |
Unique Feature |
ROI, Corridor Mode |
H.264
2 Megapixel @ 30fps
Digital WDR
Motorized Zoom/Focus
-40°C Low Temperature
40m Adaptive IR
Easy Focus |
H.265, 50% lower bitrate
IVS Pro
1080p @ 60fps
WDR Extreme
Motorized Zoom/Focus
-40°C Low Temperature
40m Adaptive IR
Easy Focus |
H.265, 50% lower bitrate
IVS Pro
5MP @ 30fps
WDR
Motorized Zoom/Focus
-40°C Low Temperature
40m Adaptive IR
Easy Focus |
Max Resolution |
1920 x 1080 (Full HD) |
1920 x 1080 (2MP) |
1920 x 1080 (2MP) |
2560 x 1920 (5MP) |
Video Compression |
H.264/MJPEG |
H.264/MJPEG |
H.265 / H.264/MJPEG |
H.265 / H.264/MJPEG |
Max Frame Rate |
25fps@1920x1080 |
30fps@1920x1080 |
60fps@1920x1080 |
30fps@2560x1920 |
Image Sensor |
1/2.8" CMOS |
1/2.8" CMOS(IMX222) |
1/3" CMOS (Panasonic MN34229) |
1/1.8" CMOS (Panasonic MN34229) |
Lens |
3.6mm |
2.8 - 12mm Motorized zoom/focus |
2.8 - 12mm Motorized zoom/focus |
3.6 - 10mm Motorized zoom/focus |
Horizontal View Angel |
70° |
100° |
33° - 104° |
109° - 42° |
Iris |
Fixed |
P-Iris |
P-Iris |
P-Iris |
Mechanical IR-Cut Filter |
Yes |
Mechanical IR cut filter with Light sensor |
Mechanical IR cut filter with Light sensor |
Yes |
Built-in IR Illumination |
15m range |
40m range Adaptive IR |
40m range Adaptive IR |
40m range Adaptive IR |
Audio |
- |
Two-way Line in & out |
Two-way Line in & out |
Two-way Line in & out |
Analog Video Output |
- |
Yes |
Yes |
Yes |
Alarm Input / Output |
- |
2 Input/2 Output |
2 Input/2 Output |
2 Input/2 Output |
RS-485 |
- |
Yes |
Yes |
Yes |
Edge Storage |
- |
SD card slot |
SD card slot |
SD card slot |
POE (Power over Ethernet) |
802.3af |
802.3af/802.3at |
802.3af/802.3at |
802.3af/802.3at |
Wireless |
- |
- |
- |
- |
Pan / Tilt |
- |
RS-485 supports Pan/tilt scanner |
RS-485 supports Pan/tilt scanner |
RS-485 supports Pan/tilt scanner |
Built-in Fan / Heater |
- |
Yes |
Yes |
Yes |
Operating Temperature |
-10°C - 60°C |
Extended Temperature -40°C - 60°C |
Extended Temperature -40°C - 60°C |
Extended Temperature -40°C - 60°C |
Weatherproof |
IP66 |
IP66 |
IP66 |
IP66 |
Vandal-proof |
-
|
- |
- |
- |
Datasheet |
|
|
|
|
|
Accessories |
ID000112 IP66 Junction Box
|
|
ID000815 Pole Mount Bracket
|
|
|
|
|
|
|
