AirEtherTM Wireless Accessories
|
Inscape Data provides a wide range of accessories to complement its AirEther outdoor wireless radios and to simplify your AirEther installation. Turnkey-style product kits for various applications from wireless infrastructure to wireless video are also available. |
MB0001 |
AC100 |
WECK0001 |
|
|
|

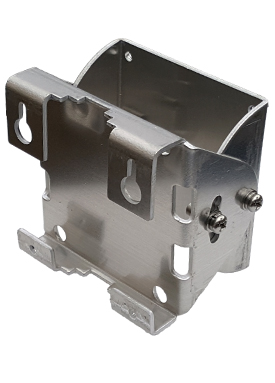

Adjustable Mast Mounting Bracket
Mast Mounting Kit, Stainless L-Bracket Adjustable Tilt for Mast Mounting |
Low-Loss Antenna Cable
Use to connect an antenna to either theCB54E, AB54E (AC100, N-Male to N-Male) or the AB54E Pro Multimode Base Statio: BR108 |
Water-Tight Connector Kit
Waterproof Connector Set |
|
|
|
WC025, WC050, WC075, WC100,WC200, WC300 |
PIS1000 |
ID10002/ID10004 |
|
|
|
Outdoor Ethernet Cable
CAT5 Outdoor FTP version, UV resistant PE jacket, outdoor grade Ethernet cable with water-tight connector. Available in 25, 50, 75, 100, 200, and 300 feet lengths. |
LPS PIS1000 Gigabit 802.3af PoE Injector
Datasheet |
Power Supplies
ID10002: 12V DC, 2 Amp
ID10004: 12V DC, 3 Amp
|
|
|
|
PIS100 |
PIS200 |
LSS0001 |
|
|
|
PIS100 1-Port PoE DC Injector with Surge Suppressor |
PIS200 2-Port PoE DC Injector with Surge Suppressor |
RF Lightning Arrestor
This product is used In-line between radio and external antenna to minimize transient voltage damage to sensitive RF equipment. The LSS0001 is installed on the transceiver antenna connector and is designed with a Type N male on one end and Type N female on the other end.
Frequency |
0 ~ 6GHz |
V.S.W.R. |
0 ~ 5GHz, 1:1.5 |
|
5 ~ 6GHz, 1:2.0 |
Insertion Loss |
0.5dB |
Electrode Capacitance |
<1.5P |
Impedance |
50ohms±5Ω |
Impulse breakdown voltage |
< 600V (@1KV/μS) |
Connector |
N-Male and N-Female |
|
|
|
|
|
|
|
