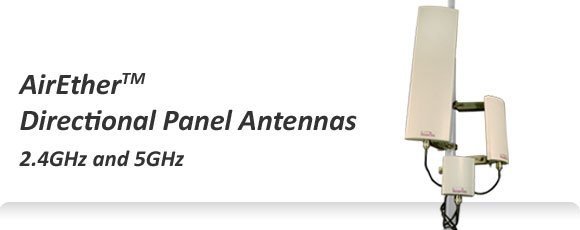

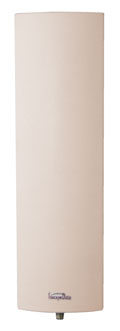

AirEtherTM Directional Panel Antenna PA Series

Inscape Data’s AirEther line of directional panel antennas offers 9, 12, 15, 18 and 21 dBi gain for various IEEE 802.11 b/g short-distance (one to five miles) or long-haul (more than 10 miles) wireless communications, such as 802.ll b/g access points or wireless bridges/routers. The AirEther antennas deliver extended wireless access point range in a single-floor environment with the antenna, ideally, secured at a corner of the building floor. These antennas also work wellfor a point-to-point network so that wireless connections can be achieved with LANs between buildings in a campus-type environment or between two remote areas. Our antennas alsoprovide multi-floor transmission when placed on a ceiling, as the higher power output extends the range through typical flooring materials. Our antenna package includesfixed, wall-adjustable, and pole mounting options. Inscape Data offers five different types of panel antennas.



Key Features

Compact and Durable
Antenna materials are carefully

chosen to minimize electrolytic

corrision and maximize rugged

mechanical aspects to provide

users with maintenance

free operation

High Performance

Radiation Pattern
Superior RF and Ground Plane

Design to Ensure Maximum

Directivity and Minimizes Leakages

Low Loss High Efficiency

Radiation System
Exceptional VSWR ranging from

1.3 to 1.5 to maximize electrical

to wireless power transfer

Technical Specifications

Band

2.4GHz

Model Name

PA09

PA12

PA15

PA18

PA21



PA09

PA12

PA16

Electrical

Frequency Range

2400 ~ 2500MHz

Gain

9 dBi

12 dBi

15 dBi

18dBi

21dBi

VSWR

1:1.5 Max

Polarization

Vertical

Impedenace

50 ± 5 Ohms

3dB Horizontal Beamwidth

75o

50o

45o

30o

20o

3dB Vertical

Beamwidth

75o

30o

25o

20o

15o

Front to Back Ratio

15dB

20dB

25dB

30dB

35dB

Max Power Input

10W

20W

Mechanical

Connector

N Female

Weight

280g

560g

800g

900g

2.1kg

Dimensions

107x90x30mm

215x90x30mm

454x134x30mm

263x263x30mm

370x370x35mm

Temperature Range

-20o ~ +60o

Randome Color

White

Randome Material

PVC

Mounting Method

Vertical

Max Pole Size

2 inches

Reflector Material

Aluminum Alloy



Band

5GHz

Model Name

PA5G18

PA5G21



PA5G18 PA5G21

Electrical

Frequency Range

5100 ~ 5900MHz

Gain

18dBi

21dBi

VSWR

1:1.5 Max

1:1.3 Max

Polarization

Linear

Impedenace

50 ± 5 Ohms

3dB Horizontal Beamwidth

10o

10o

3dB Vertical

Beamwidth

10o

8o

Front to Back Ratio

30dB

35dB

Max Power Input

10W

20W

Mechanical

Connector

N Female

Weight

1.68kg

2.1kg

Dimensions

263x263x48mm

370x370x35mm

Temperature Range

-20o ~ +60o

Randome Color

Gray & White

White

Randome Material

PC & ABS

PVC

Mounting Method

Vertical

Max Pole Size

2 inches

Reflector Material

Aluminum Alloy

Download Datasheet
