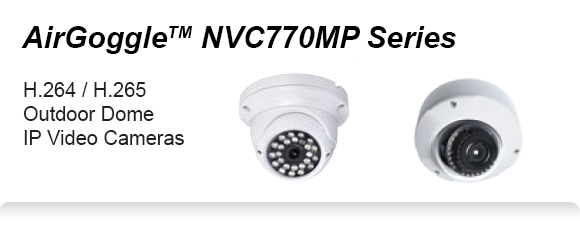

AirGoggle™ NVC770MP2 Pro 2MP outdoor motorized dome can keep consistent visibility all the time, is a perfect surveillance solution for monitoring 24x7 outdoor activities.

NVC770MP2 Pro outdoor dome is extremely comprehensive, can work in almost any location, including banks, residential or public area. It features a motorized lens for remote focus and zoon control, the installer/user can remote control the focal length and precisely adjust the camera focus. This made DM5302 hassle-free installation and maintenance.

Besides, NVC770MP2 Pro comes with AdaptiveIR and P-iris to provide great clarity image all day. Compared to traditional IR, Smart IR can automatically adjusting IR output in response to the distance of the object to avoid over-exposure. P-iris can provide a clear image with better contrast and depth of field. That’s why NVC770MP2 Pro can overcome variation light condition to have clear image.

Key Features

• Full HD 1080p
• H.265 / H.264 and Motion JPEG compression
• True day & night with automatic removable IR-cut filter
• Smart focus system for remote focal & focus control
• Smart feature: Adaptive IR, Corridor Mode, ROI
• Adaptive IR 20m
• Two-way audio and built-in microphone
• RTC with built-in battery
• 2 x alarm input, 2 x alarm output
• Tampering detection
• IK10 vandal-proof
• IP66weatherproof
• Screwless 3-axis angle adjustment for easy
• Installation on wall or ceiling
• SSL v3 advanced HTTPS encryption
• Full support for Firefox, Safari and Mac OS
• Supports Samba network storage
• Multi-lingual user interface
• Free 32-channel NVR software
• Built-in SD card slot

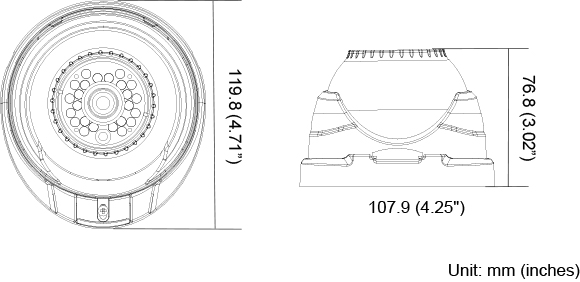

Dimensions

NVC770MP2

nvc880mp2

NVC770MP2 Pro, NVC770MP2 ULT, NVC770MP5 ULT

Models and Technical Specifications

Product Image
Model Name	NVC770MP2	NVC770MP2 Pro	NVC770MP2 ULT	NVC770MP5 ULT
Camera Type	Outdoor IR Eyeball Dome	Motorized Lens Outdoor IR Dome	Motorized Lens Outdoor IR Dome	Motorized Lens Outdoor IR Dome
Unique Feature	ROI, Corridor Mode	H.264 2 Megapixel @ 30fps Digital WDR Motorized Zoom/Focus -40°C Low Temperature 25m Adaptive IR Easy Focus	H.265, 50% lower bitrate IVS Pro 1080p @ 60fps WDR Extreme Motorized Zoom/Focus -40°C Low Temperature Adaptive IR Easy Focus	H.265, 50% lower bitrate IVS Pro 5MP @ 30fps WDR Motorized Zoom/Focus -40°C Low Temperature Adaptive IR Easy Focus
Max Resolution	1920 x 1080 (2MP)	1920 x 1080 (2MP)	1920 x 1080 (2MP)	2560 x 1920 (5MP)
Video Compression	H.264/MJPEG	H.264/MJPEG	H.265 / H.264/MJPEG	H.265 / H.264/MJPEG
Max Frame Rate	25fps@1920x1080	30fps@1920x1080	60fps@1920x1080	30fps@2560x1920
Image Sensor	1/2.8" CMOS	1/2.8" CMOS(IMX222)	1/3" CMOS	1/1.8" CMOS (Panasonic MN34229)
Lens	2.8mm	2.8 - 12mm Motorized zoom/focus	2.8 - 12mm Motorized zoom/focus	3.6 - 10mm Motorized zoom/focus
Horizontal View Angel	94°	100°	33° - 104°	109° - 42°
Iris	Fixed	P-Iris	P-Iris	P-Iris
Mechanical IR-Cut Filter	Mechanical IR cut filter with Light sensor	Mechanical IR cut filter with Light sensor	Mechanical IR cut filter with Light sensor	Yes
Built-in IR Illumination	15m range	25m range Adaptive IR	20m range Adaptive IR	20m range Adaptive IR
Audio	-	Two-way Line in & out	Two-way Line in & out	Two-way Line in & out
Analog Video Output	-	Yes	Yes	Yes
Alarm Input / Output	-	1 Input / 1Output	1 Input / 1Output	1 Input / 1Output
RS-485	-	-	-	Yes
Edge Storage	-	SD card slot	SD card slot	SD card slot
POE (Power over Ethernet)	802.3af	802.3af/802.3at	802.3af/802.3at	802.3af/802.3at
Wireless	-	-	-	-
Pan / Tilt	-	-	RS-485 supports Pan/tilt scanner	-
Built-in Fan / Heater	-	Yes	Yes	Yes
Operating Temperature	-10°C - 60°C	Extended Temperature -40°C - 60°C	Extended Temperature -40°C - 60°C	Extended Temperature -40°C - 60°C
Weatherproof	IP66	IP66	IP66	IP66
Vandal-proof	-	IK10	IK10	IK10
Datasheet				TBA

Accessories

ID000112 IP66 Junction Box

CI112

ID000815 Pole Mount Bracket

CI815

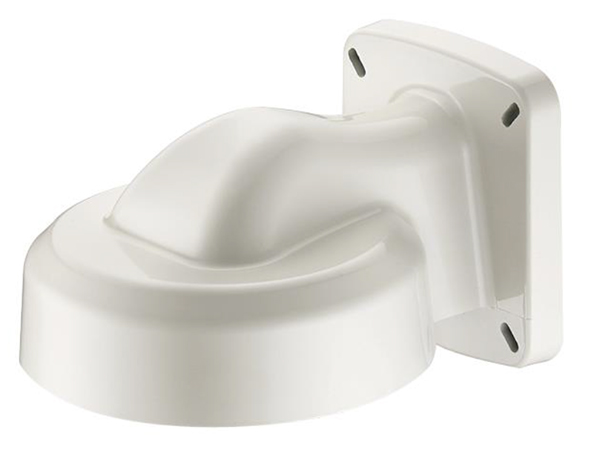

ID000817 Dome Housing Bracket

CI817
