home > products > AirEther > omni antennas

oa

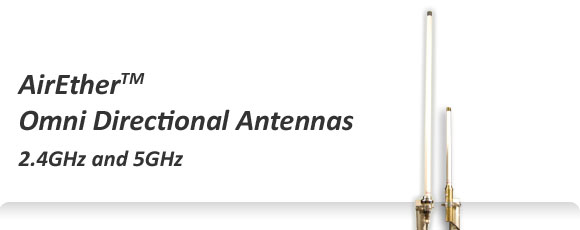

AirEtherTM Omni Antenna OA Series

Inscape Data’s AirEther line of omni-directional antennas are designed to radiate radio-frequency energy equally in all directions for widespread and all-point wireless deployment. This antenna is especially useful for optimizing coverage when you want to place your wireless access point or router out of plain view --- in a wiring closet or above a ceiling pad. Inscape Data offers three different types of omni antennas:



Key Features

1 2 3

Compact and Durable
Antenna materials are carefully

chosen to minimize electrolytic

corrision and maximize rugged

mechanical aspects to provid

users with maintenance

free operation

High Performance

Radiation Pattern
Superior RF and Ground Plane

Design to Ensure Maximum

Directivity and Minimizes Leakages

Low Loss High Efficiency

Radiation System
Exceptional VSWR ranging from

1.3 to 1.5 to maximize electrical

to wireless power transfer

Technical Specifications

Band

2.4GHz

Model Name

OA09

OA12

OA15



oa9

oa12 oa15

Electrical

Frequency Range

2400 ~ 2500MHz

Gain

9dBi

12dBi

15dBi

VSWR

1:1.3 Max

Polarization

Linear

Impedenace

50 ± 5 Ohms

3dB Horizontal Beamwidth

360o

3dB Vertical

Beamwidth

10o

Max Power Input

15W

Mechanical

Connector

N Female

Weight

430g

910g

910g

Dimensions

ø 35 x 420mm

ø 51 x 900mm

ø 51 x 1600mm

Temperature Range

-20o ~ +60o

Randome Color

White

Randome Material

Fiber Glass

Mounting Method

Vertical

Max Pole Size

2 inches

Reflector Material

Copper



Band

5GHz

Model Name

OA5G09

OA5G12



oa5G9 OA5G12

Electrical

Frequency Range

5100 ~ 5900MHz

Gain

9dBi

12dBi

VSWR

1:1.3 Max

Polarization

Linear

Impedenace

50 ± 5 Ohms

3dB Horizontal Beamwidth

360o

3dB Vertical

Beamwidth

6o

Max Power Input

10W

Mechanical

Connector

N Female

Weight

410g

430g

Dimensions

ø 35 x 420mm

ø 35 x 420mm

Temperature Range

-20o ~ +60o

Randome Color

White

Randome Material

Fiber Glass

Mounting Method

Vertical

Max Pole Size

2 inches

Reflector Material

Copper
