home > products > AirEther > sector antennas

sa

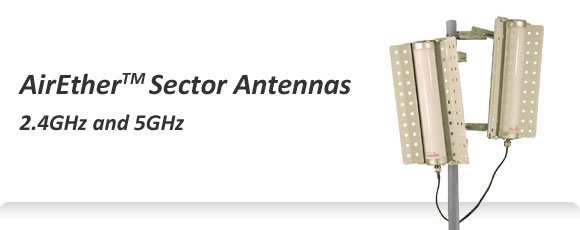

AirEtherTM Sector Antenna SA Series

Inscape Data’s AirEther line of Sector Directional Antennas offers 15, 18, and 21 dBi gain with a wide beam width. Designed primarily for carrier-class applications and service providers, these antennas include a professional quality "cell site" base station antenna. The antennas come packaged with a directional orientation bracket that makes the main beam width and angle adjustable when an antenna is installed on the top of a mountain, radio tower or high-rise building. This feature offers maximum signal strength for both reception and transmission in the desired area. The directional characteristic also allows you  to adjust the transmitting and receiving angle of your antenna. This feature works well in outdoor building-to-building application with buildings of various height. Inscape Data offers four different types of sector antennas:



Key Features

antenna1 antenna2 antenna3

Compact and Durable
Cross drilled corrosion resistant

coated galvanized steel refelctor

and stainless steel bracket mounts

maximize rugged mechanical

aspects and minimize wind loading

to procide users with maintenance

free operation

High Performance

Radiation Pattern
Superior RF and Ground Plane

Design to Ensure Maximum

Directivity and Minimizes Leakages

Low Loss High Efficiency

Radiation System
Exceptional VSWR ranging from

1.3 to 1.5 to maximize electrical

to wireless power transfer

Technical Specifications

Band

2.4GHz

Model Name

SA15

SA1218

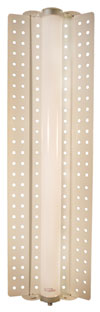

SA1821



sa15

sa1218 sa1821

Electrical

Frequency Range

2400 ~ 2500MHz

Gain

15dBi

12~18dBi

18~21dBi

VSWR

1:1.3 Max

Polarization

Linear

Impedenace

50 ± 5 Ohms

3dB Horizontal Beamwidth

120o

60o~120o

60o~120o

3dB Vertical

Beamwidth

10o

Front to Back Ratio

30dB

25dB

30dB

Max Power Input

15W

Mechanical

Connector

N Female

Weight

3.4kg

3.05kg

4.84kg

Dimensions

865x130x65mm

370x130x65mm

865x130x65mm

Temperature Range

-20o ~ +60o

Randome Color

Gray Corrosion Resistant Enamel

Randome Material

ABS

Mounting Method

Vertical

Max Pole Size

2 inches

Reflector Material

Galvanized Steel



Band

5GHz

Model Name

SA5G15

SA5G1521



SA5G15 SA5G1521

Electrical

Frequency Range

5100 ~ 5900MHz

Gain

15dBi

15~21dBi

VSWR

1:1.5 Max

1:1.3 Max

Polarization

Linear

Impedenace

50 ± 5 Ohms

3dB Horizontal Beamwidth

120o

60o~120o

3dB Vertical

Beamwidth

10o

Front to Back Ratio

30dB

Max Power Input

15W

Mechanical

Connector

N Female

Weight

2.4kg

3.09kg

Dimensions

370x130x65mm

370x130x65mm

Temperature Range

-20o ~ +60o

Randome Color

Gray Corrosion Resistant Enamel

Randome Material

ABS

Mounting Method

Vertical

Max Pole Size

2 inches

Reflector Material

Galvanized Steel
