SB3000

Features | Documents | Dimensions | Accessories | Related Products

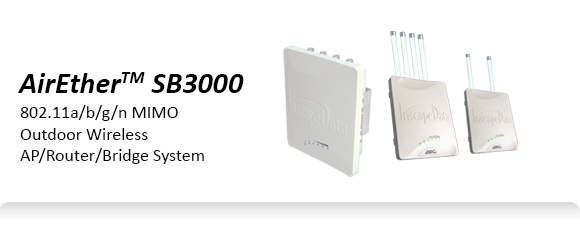

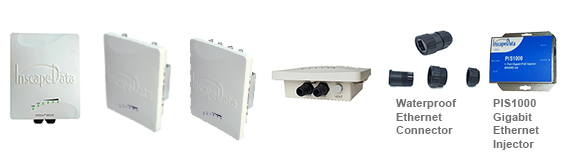

The AirEther SB3000 802.11 b/g/n/ac MIMO Outdoor AP/Router/Bridge System is a family of high performance radio products and is a carrier class outdoor wireless AP/router/bridge system that delivers maximum network performance up to 300Mbps on Solo model per radio and aggregated 600Mbps throughput on Duo/Trio/Quartette models.  The SB3000 outdoor radio product family consists of the following four models:



AirEther SB3000 802.11 b/g/n/ac MIMO Outdoor AP/Router/Bridge System

» Application Note PDF

• SB3240 – 802.11 b/g/n MIMO Outdoor AP (Access Point)

◦ Maximum 26dBm output power 802.11a and 28dBm MIMO aggregate

◦ Two external antenna connectors
◦ 300Mbps Bandwidth

• SB3245 – 802.11 b/g/n/ac MIMO Outdoor AP (Access Point)

◦ One 2.4GHz & one 5GHz high aggregate power 26dBm radio per chain
◦ Four external antenna connectors

◦ Dual radio concurrent AP

◦ 300Mbps Bandwidth

• SB3245 Duo Pro – 802.11 b/g/n/ac MIMO Outdoor AP/Router/Bridge

◦ One 2.4GHz high power 26 dBm radio per chain and one 5GHz high power 26 dBm radio per chain
◦ One integrated 5GHz 18dBi 2x2 MIMO patch antenna
◦ Two external antenna connectors

◦ Dual radio system

◦300Mbps Aggregated Bandwidth





The AirEther SB3000 outdoor radio system is a powerful and unprecedented 802.11 b/g/n/ac MIMO Outdoor AP/Router/Bridge System that offers deployment flexibility for highly traffic Wifi hotspots, school campuses, industrial yards or plants, warehouses, seaport container/airport facilities, extreme industrial production areas, and other harsh environmental applications.

In addition to rich network features, the AirEther SB3000 outdoor radio system is designed with either one or two 2x2 MIMO high power radio(s), i.e., 29dBm on 2.4GHz and 28dBm on 5GHz, together with two or four 5 dBi omni directional antenna delivering up to 300 Mbps per radio or 600Mbps aggregated bandwidth based on the models, i.e., Solo, Duo, Trio, or Quartette.  With powerful network security, i.e., AES 128bit & IEEE802.1x, this high performance outdoor AP/Router/Bridge system is engineered to survive in harsh outdoor environments, the AirEther SB3000 is built with a diecast aluminum enclosure that is designed to compliant to IP68 outdoor rating and is capable of withstanding exposure to high and low temperatures, persistent moisture and precipitation, and is fully sealed for protection from airborne contaminants. All electrical interfaces include industrial-strength surge protection.

The AirEther SB3000 outdoor radio system is designed with the Power over Ethernet (PoE) feature and operates from a 100 ~ 240 volt AC power source, which allows power and data transmitted over a single network cable. This capability provides for simple, convenient installation. Furthermore, when you use the LPS1000/2000/3000 Outdoor PoE Switch and networking with any of the NVC Series H.264 and Mega-pixel Cameras, all the wireless devices and the cameras are networked within a single outdoor LAN (Local Area Network). It becomes much easier to manage, integrate, install, maintain, and troubleshoot. Based on Inscape Data's patent-pending technology, our new Outdoor PoE Switch greatly lessens challenges for outdoor LAN design, integration, and deployment.

» Key Features

Key Features

» Documents

Datasheet Datasheets: SB3000



note Application Note: SB3000

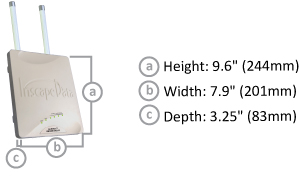

» Dimensions

Dimensions

» Accessories



Omni Antennas



WECK0001 PoE Injectors MB001

MB0001

Mast Mounting Kit



Outdoor Ethernet Cable Low Loss Antenna Cable

WC Series Outdoor UV protected Cat5
Network Cable

AC100 Low Loss Antenna Cable



» Related Products

BR3000 802.11n Outdoor Wireless Bridge/Backhaul

LPS2000-3000-T1

LPS2000/3000-T1

Outdoor 5-Port Gigabit Managed and Non-Managed

PoE Switches

LPS2000/3000-T2

LPS2000/3000-T2

Outdoor 5-Port Gigabit Managed and Non-Managed

PoE Switches
