Mounting | Dimensions | Related products



Datasheet Application Note

Key Features

Day and Night

H.264, MPEG & MJPEG Triple Codec Support

PTZ

2 Megapixels

IPCCTV

Multi-profiling

AirGoggle NVC3020MP2v2 Full HD 2 Mega-Pixel IR Speed Dome Camera with 30x optical zoom uses a triple codec supporting H.264, MPEG & Motion JPEG digital video compression standards. With full HD 1980x1080 H.264 video resolution and efficient network real-time streaming, the NVC3020MP2 PTZ speed dome IP video camera provides high quality digital video without the high demand of network bandwidth. Standard features sets of the NVC3020MP2v2 include selectable ADPCM audio, event-driven recording video motion detection or quad external sensor inputs, pan / tilt / zoom to 165 preset location, and integrated IP video web server. In addition, the NVC3020MP2 model is designed with a Pixim CMOS WDR Image Sensor for viewing in extreme lighting situations and more clearly in darkness, and it provides excellent resolution and color accuracy allows better object and person identification.



The AirGoggle NVC3020MP2v2 are offered in optical zoom lens, filter changeable day & night, or wide dynamic digital imaging optics. The rugged mechanical design, along with a host of convenient features, makes the high-performance AirGoggle NVC3020MP2v2 ideal for professional security surveillance applications.



back to top ^

Mounting Specifications


The following table shows the parts to include when using each specific mounting method.

Wall Mounting

Celing Mounting

Pole Mounting

Corner Mounting

WB202

Wall Mount Bracket

CB202

Ceiling Mount Bracket

PM202

Pole Mount Bracket

CM202

Corner Mount Bracket

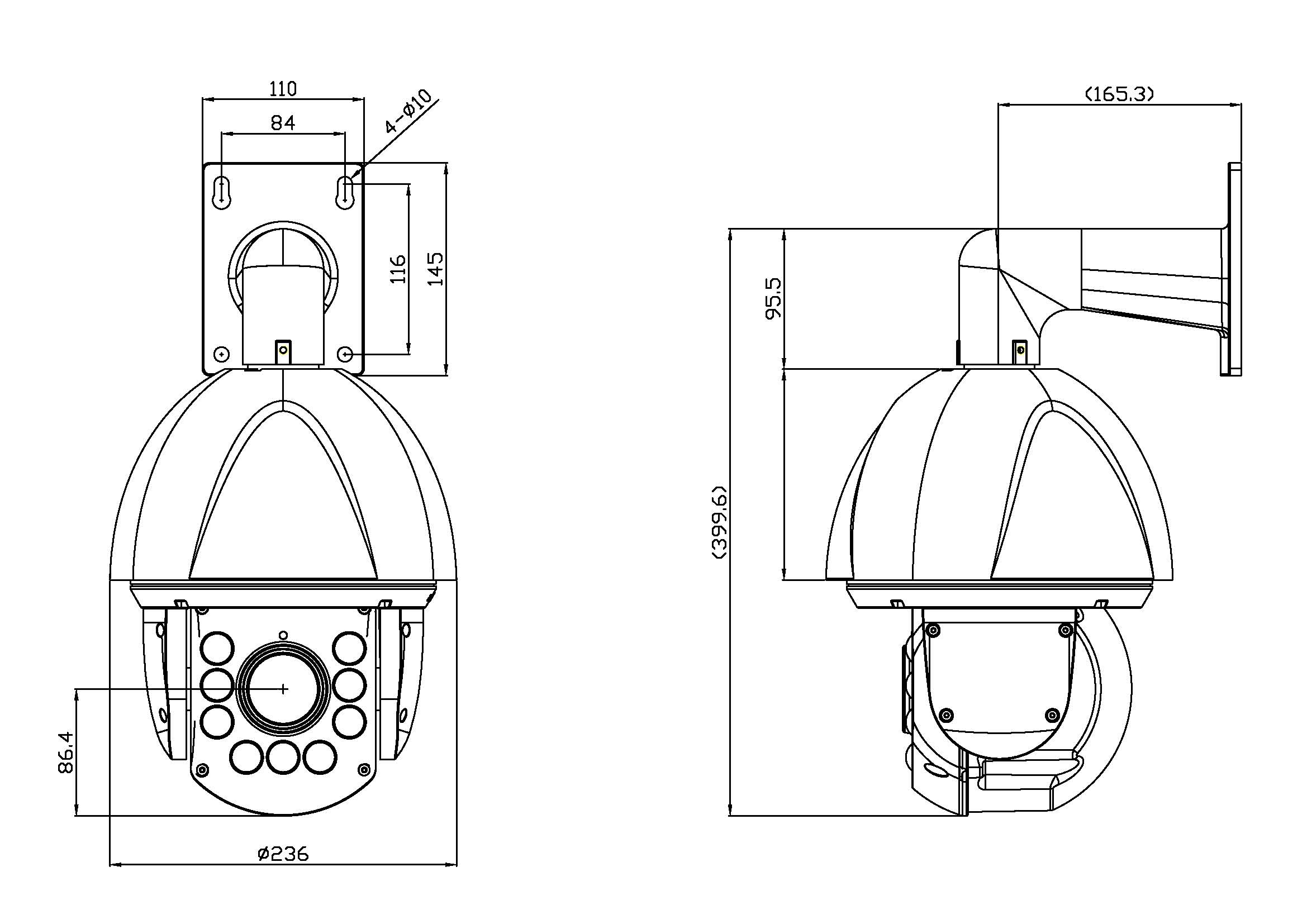

Dimensions

0
