LinkPower2000 Outdoor Gigabit PoE Switch - 3KV Network Port Surge Protection -40~ +75°C Working Temperature IP67 Outdoor Compliant

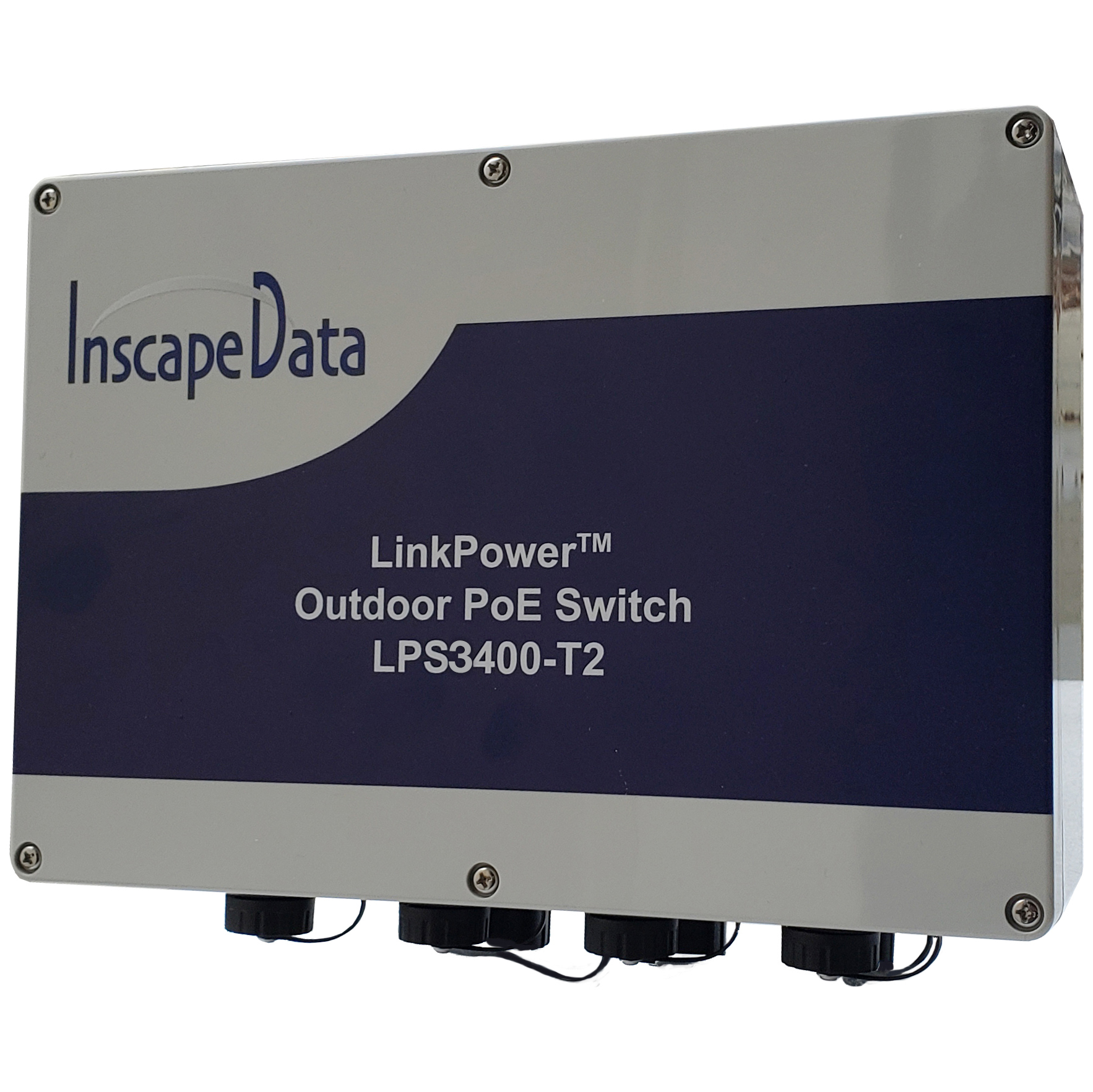

The LinkPower™ LPS3000-T2 Series is All Weather Multi-Port, i.e., 4 and 8 Port, Managed Gigabit PoE (Power over Ethernet) Switch with dual power output redundancy, i.e., 120V~240AC and/or 48V DC, is the industry first outdoor weatherproof ready high speed gigabit Ethernet switch that delivers data and power over one single network cable protected with an IP67 compliant weatherproof enclosure.  The LPS3000-T2 is designed for outdoor industrial and commercial network applications, e.g., video surveillance, remote security, wireless mesh, and carrier wifi installations.   The PoE port output from 15.4W to 30W per port based on the models (see the model table below), and LPS3400ATMP-T2 offers 60W per PoE port based on the IEEE 802.3bt standard. In addition, the management feature enables remote monitoring, management, and control of the devices' status, including the following key management functions:

  1. Remote system reset
  2. QoS per port on policing, scheduler, traffic shaping, and store control
  3. Supports VLAN, IGMP, LACP Aggregation, STP, ERPS, & LLDP
  4. Port configuration, i.e., enable/disable, speed control
  5. PoE configuration, i.e., PoE modes (802.3af, 802.3at, 802.3at Plus)& PoE Priority
  6. Port security, allows setting different security level on each port with password, 802.1x, IP&MAC address Guard, & AAA
  7. Port thermal protection, turn off port when temperature exceeding the setting for device protection


The LPS3000-T2 Managed Outdoor PoE Series is designed for outdoor industrial and commercial network applications, e.g., video surveillance, remote security, wifi/wireless mesh, and telco carrier installations. Inscape Data offers two different lines of LPS3000, i.e., T1 & T2 models. The design of the T1 and T2 models are based on the different requirements of today's broad outdoor network applications, such as installation security, ease of installation, and product cost. The T1 models offer up to IP67 waterproof rating and meet higher installation security by hiding the network cable and power connectors securely inside of a weatherproof enclosure and reduce the product cost by using fewer connectors, while the T2 models offer IP68 waterproof rating and ease of installation, i.e., plug and play connectors for applications demanding rapid change of network configuration.

The key difference between the LPS3000-T2 (Type 2) models and LPS3000-T1 (Type 1) models outdoor PoE switch products is illustrated as follow:

PoE T1 T2 Differences


The LinkPower LPS3000-T2 Managed Outdoor Gigabit PoE Network Switch Series offers several sub-models as shown below:


Product Line

Product Model

Model Name Description

PoE Port Output

LPS3000-T2 Outdoor Managed Gigabit PoE Network Switch Series


Outdoor Managed 10/100/1000Mbps 4-Port 802.3af/at PoE Switch with 2 Gigabit SFP Fiber Ports



Outdoor Managed 10/100/1000Mbps 4-Port 802.3af/at+ PoE Switch with 2 Gigabit SFP Fiber Ports



Outdoor Managed 10/100/1000Mbps 4-Port 802.3af/at++ PoE Switch with 2 Gigabit SFP Fiber Ports



Outdoor Managed 10/100/1000Mbps 8-Port 802.3af/at PoE Switch with 4 Gigabit SFP Fiber Ports and 2 Gigabit RJ45 Uplink Ports



Outdoor Managed 10/100/1000Mbps 8-Port 802.3af/at+ PoE Switch with 4 Gigabit SFP Fiber Ports and 2 Gigabit RJ45 Uplink Ports



Outdoor Managed 10/100/1000Mbps 8-Port 802.3af/at PoE Switch with Only 2 Gigabit SFP Uplink Ports



Outdoor Managed 10/100/1000Mbps 8-Port 802.3af/at+ PoE Switch with Only 2 Gigabit SFP Uplink Ports



The LPS3000-T2 Series All Weather 4 to 8-Port Gigabit PoE is a manageable network switch and is designed to meet the accelerating demand for powering the most demanding outdoor PoE devices without the requirement for the management feature. In addition, the LPS3000-T2 Series All Weather managed Gigabit PoE Switch provide LED displays that show device status for easy power management and troubleshooting. The PoE technology significantly reduces the installation cost by eliminating the separate power supply units for PoE enable network devices, such as Inscape Data’s IP cameras and SB3000/BR3000 wireless products, thereby reducing equipment and installation costs.


  • Dual Power Input Redundancy with 120V~240AC and/or 48V DC
  • Supports 2.5Gbps on SFP 13 & 14 Uplink Ports
  • IP67 Compliant All Weather Enclosure
  • MTBF:190,000 hours (about 21 years)
  • Remote manageable, remote reset, auto pin, network statistics, and SNMP on all LPS3000-T2 models
  • Integrated Industrial 3KV Ethernet surge protection
  • Supports IEEE802.1p QoS & IEEE802.1Q
  • IEEE 802.3af and 802.3at Type 2 Power over Ethernet (PoE) standard
  • 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Gigabit Power over Ethernet RJ45 ports
  • Supports 802.3af PoE Power maximum 15.4 watts and 802.3at PoE Plus maximum 30Watts and 48V DC for each PoE port
  • Internal LEDs for individual port status: Network Activity, PoE Power, & System Power
  • Full wire-speed non-blocking reception and transmission
  • 1MBit frame buffer memory and 8K entries MAC address table
  • IEEE802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
  • Supports integrated address look-up engine, automatic address learning and address aging
  • Supports Link Aggregation IEEE 802.3ad and fail over
  • Each SFP fiber port supports single mode (9/125um) fiber transmission, the transmission distance can be up to 25km( Default dual fiber, can be customized single fiber)
  • Supports Jumbo Frame in all speeds (up to 10K bytes packet frame size)
  • Operating Temperature:  -30 Degree C ~ +70 Degree C
  • Three-Year Limited Warranty

Application Diagrams


dimension drawing

Standard Accessories

Waterproof Ethernet
Connector Kit

Power and Fiber Connector Kit


Wall Mounting Kit


Waterproof Power Cable Kit


Power and Ethernet Condult Kit


Optional Accessories


Mast Mounting Kit



Waterproof RJ45
Coupler Kit

Waterproof Power
Cable Couple Kit

Singlemode SFP Waterproof
Connector Kit

MultimodeSFP Waterproof
Connector Kit


SFP Module Accessories

SFP-Single-ModeSFP Duplex 1.25Gbps 3.3V Single-Mode Transceiver (Datasheet)

SFP-Single-ModeSFP Duplex 1.25Gbps 3.3V Multi-Mode Transceiver (Datasheet)
