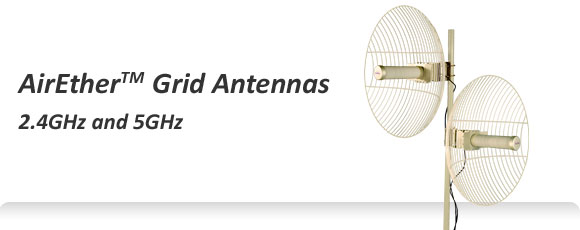

AirEtherTM Grid Antenna GA Series

Inscape Data Corporation, the leading outdoor network appliance company, offers a broad range of high gain antennas, 9dBi to 29dBi, for every major license free air interface technology with broad deployments in all regions. The portfolio of Inscape Data grid antenna system includes all-weather antennas for outdoor long range license free radios and WiFi systems in bands ranging from 2.4GHz up to 6GHz. The high performance and low loss grid antennas are built ground up with focus on reliability, durability, and performance. Inscape Data grid antenna offers the best return on investment for the license free long range wireless industry.



Key Features

1 2 3

Compact and Durable
High quality construction of

corrosion resistant coated

galvanized steel with stainless

steel bracket system offers

precise rugged mechanical aspects

and maintenance free operation

High Performance

Radiation Pattern
Superior RF and Ground Plane

Design to Ensure Maximum

Directivity and Minimizes Leakages

Low Loss High Efficiency

Radiation System
Exceptional VSWR ranging from

1.3 to 1.5 to maximize electrical

to wireless power transfer



Technical Specifications

Band

2.4GHz

5GHz

Model Name

GA21

GA24

GA5G24

GA5G26

GA5G29



GA21

GA24 GA5G24 GA5G26 GA5G29

Electrical

Frequency Range

2400 ~ 2500MHz

5100 ~ 5900MHz

Gain

21dBi

24dBi

24dBi

26dBi

29dBi

VSWR

1:1.5 Max

1:1.5 Max

1:1.3 Max

1:1.3 Max

Polarization

Linear

Impedenace

50 ± 5 Ohms

3dB Horizontal Beamwidth

8o

3dB Vertical

Beamwidth

5o

Max Power Input

15W

25W

20W

20W

25W

Front-to-Back Ratio

30dB

35dB

30dB

30dB

35dB

Mechanical

Connector

N Female

Weight

1.4Kg

4.21Kg

1.4Kg

2.87Kg

4.86Kg

Dimensions (mm)

L600xH435xD250

ø900x250mm

L600xH435xD250

ø610x250mm

ø900x250mm

Temperature Range

-20o ~ +60o

Randome Color

White Corrosion Resistant Enamel

Randome Material

ABS

Mounting Method

Vertical

Max Pole Size

2 inches

Reflector Material

Galvanized Steel
