home > products > wireless all weather fixed bullet camera

feature



Package includes...

NVC880MP Series


BR300 Wireless Bridge


PIS100 Ethernet Injector with Ethernet Surge Suppressor



Related Datasheets

Wireless

Camera

BR300 PDF

NVC880MP2 ProPDF

NVC880MP2 UltPDF

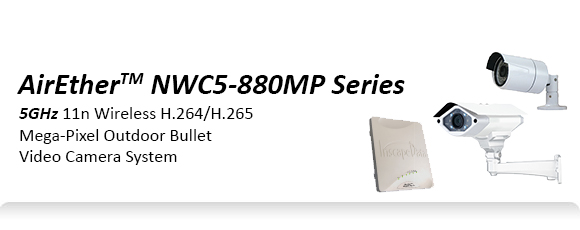

The NWC5-880MP Series is a professional wireless all weather fixed video camera consisting of two parts: a long range wireless radio with 5GHz built-in 18dBi panel antenna, and an all weather proof IP day/night IR camera with a dual CCD senor.  The wireless radio is compliant to IEEE802.11a/ b/g standards using 5GHz frequencies and is capable of operating as a Wireless Bridge for point-to-point or point-to-multi-point communication.  The NWC5-880MP Series wireless All Weather IP camera comes standard with a dual codec supporting H.264 & Motion JPEG digital video compression standards, a 3.5mm ~ 16mm auto-iris vari-focal lens, with an optional 6mm ~ 50mm lens, and supports full D1 720 x 480 video resolution.  The NWC5-880MP Series product offers the following four key benefits:

  1. IEEE 802.11n Standard Radio with 5GHz Frequency - Integrated with a 5GHz, 18dBi dual polarity 2x2 panel antenna, the wireless video camera system operates at the 5GHz wireless frequency with minimum interference for reliable with 300Mbps data rate and secure video transmission.
  2. Proven Cost Effective Products – Complete cost effective wireless and IP video day/night camera product ready for outdoor deployment and installation
  3. Secure Video Transmission – Secure video transmission over the wireless link by the secure MAC layer access control (ACL) and WPA2 with AES encryption (Wi-Fi Protected Access) security as a point-to-point wireless bridge
  4. All Weather Enclosures – Designed for all weather outdoor applications based on the IP66 camera and IP68 radio compliant enclosures



Wireless Features

Camera Features

802.11n

802.11n 5GHz

Day and Night

H.264/H.265, MPEG & MJPEG Triple Codec Support

Antenna

18 dBi 2x2 Integrated Antenna

Multi Profile

Multiprofile Streaming

Wireless Media

Wireless Multimedia

D/N

IR Compatible Day and Night Operation



^back to top



Main Product Features

Wireless

Video Camera

Carrier Class Quality
Carrier class broadband wireless access solution provides scalability, reliability, and superior performance in the most challenging environments.



License Free Long Range 5GHz Frequency Operation
5 GHz operation offers over 20 non-overlapping channels for the most flexible interference free application scenario without the need for regulatory frequency licensing.



Integrated 18dBi 2x2 Dual Polarity Antenna
Integrated 5GHz 18 dBi 2x2 dual polarity high gain and high sensitive antenna offers longer wireless range. If extended range up to 50km is desired, the use of higher gain DA5G28M or DA5G32M antenna is optional.


Wireless Multimedia
Based on the IEEE 802.11e standard, Wireless multimedia (WMM) provides enhancement for voice and video over IP applications



Rugged Outdoor Weatherproof Design
The IP68 compliant weatherproof enclosure, connectors, and extreme weather rating electronic components continue to perform in the most extreme weather conditions.



Multi-Mode Configuration
Single device with up to four modes of operation: IEEE compliant 802.11a/b/g Access Point, Wireless Bridge, Wireless Repeater, and IEEE compliant 802.11a/b/g Client.



Power over Ethernet
The built-in PoE feature eliminates power connection at the camera location. This eliminates the need of running an additional power line cable.



Integrated RF Site Survey Tool
RF wireless site survey tool built into every radio for simplified frequency planning and installation.



Secure Wireless Transmission
Equipped with Government Strength Advance Encryption System (AES), transmission of top level information is highly secure with the AirEther outdoor wireless system.



H.264/H.265, MPGE, & MJPEG Triple Codec Operation

State of the art H.264 digital video encoding allows for the highest quality D1 video at the lowest bandwidth possible. Motion JPEG (MJPEG) and MPEG digital still video encoding allows for high quality recording



Multiprofile Streaming

High performance streaming profiles offers 3 streams of different resolution & frame rates providing IP video flexibility for the most demanding IP video applications



IR Compatible Day and Night Operation

Available with all but the NVC800H, the day & night features provides filter removable color operation for day-time and black/white operation for night time operation. Integrated IR LED design



Vandal Proof and IP66 Weather Resistant

High impact vandal proof poly carbonate clear dome cover and reinforced aluminum chassis with heater and blower to ensure reliable and durability in the harshest indoor or outdoor operating environment



Synchronized Audio/Video and Two-Way Audio Communication

Audio line in and line out interface(s) with software selectable audio feature provides synchronized audio surveillance and announcement capabilities from the monitoring station



Event Driven Real-Time Notification

The integrated sensor input, alarm output, and video motion detection provides actionable event trigger functionality able to send a video clip via email or FTP and turn on/off external relays



Embedded Streaming Web Server

The suite of functions from the embedded streaming web server make accessing real-time video easy from any Internet Explorer enabled computer



Optional flash memory for local storage
