Key Features

Mega-pixels

2.0 & 3.0 Mega-Pixel color video resolution

Triple Codecs

Triple-Codec supporting H.264, MPEG & MJPEG

IR Day & Light

IR Compatible Day & Night Operation

PTZ

Multi-profile streaming

More Features

Progressive scan Mega pixel, Mega Pixel CMOS image sensor



Power over Ethernet (PoE)



Two-way audio support



3-axis lens mount



Vandal proof & weather proof,
IP66 compliant



Analog video output, CVBS (Composite Video Baseband Signal)



Op��onal flash memory for local storage

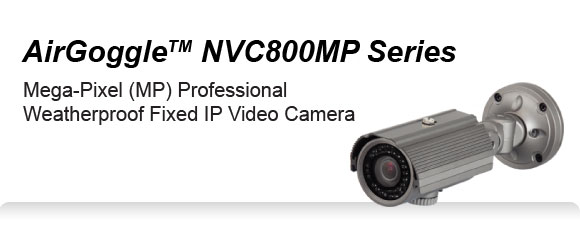

AirGoggle™ NVC800MP IP Camera Series includes three models of outdoor-ready fixed cameras that deliver superb mega-pixel image quality with H.264 compression and are ideal for high-performance surveillance in any outdoor environment. The NVC800MP Series offers cameras supporting a range of HDTV video resolutions from 1.3 megapixel to 3 megapixel, i.e., from 720p to 1080p, and a 5 megapixel model will be released by Q2/2013.



One of the key features provided by the NVC800MP cameras is WDR (Wide Dynamic Range, and day and night functionality for superb image quality in daylight and dark conditions. The Wide Dynamic Range feature with dynamic capture works by acquiring several images with different exposure times. The infrared LED feature allows the cameras to operate under total darkness, and the advanced image processing results in video with exceptional clarity and sharpness. All NVC800MP cameras deliver multiple H.264, MPEG-4, and Motion JPEG video streams. H.264 greatly reduces bandwidth and storage needs without compromising image quality. The NVC800MP Series supports Power over Ethernet (PoE) based on IEEE802.3at that uses only one RJ45 Ethernet cable from a power injector to the camera for easy installation. When integrated with Inscape Data's AirEther™ wireless systems, the wireless camera systems are capable of delivering high quality video streams wirelessly many miles away. The wireless video cameras are perfect for monitoring remote parking lots, large stadiums, city streets, seaport, and airports.



App



back to top^

Model Selections

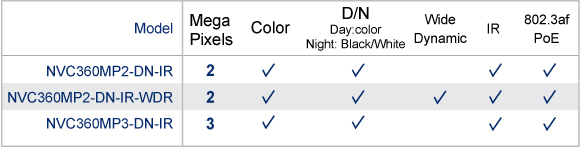

360MP Models
