Key Features

Day and Night

2.0 megapixel color video resolution

Weather Vandal Resistant

Dual-Codec supporting H.264 & MJPEG

PTZ

Multi-profile streaming

More Features

Progressive scan Mega pixel, 2.0 Mega Pixel CMOS image sensor



Power over Ethernet (PoE)



Two-way audio support



Analog video output, CVBS (Composite Video Baseband Signal)



Optional flash memory for local storage

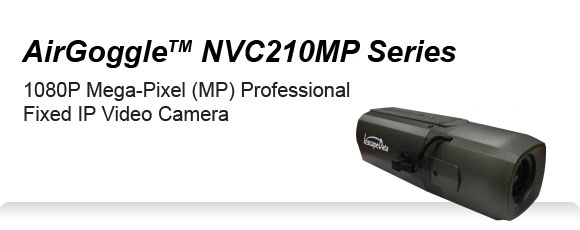

AirGoggle NVC210MP-DN Megpixel Fixed IP Day/Night Video Camera uses a dual codec supporting H.264 & Motion JPEG digital video compression standards. The NVC210MP-DN megapixel video camera uses a 2.0 megapixel CMOS image sensor that delivers crisp and clear images, perfect for the identification of objects and persons, and the resolution is at least three times better than an analog CCTV camera. The high quality lens uses DC-iris control for improving the depth of field and protecting the sensor at intensely illuminated scenes.



Another powerful features include optional flash memory for local storage and multiple simultaneous video streams of differentiated resolutions and frame rates, and these two powerful features will secure video storage if the network becomes unavailable and ensure the highest video quality service while enabling simultaneous connections through lower speed networks. Other key features including built-in PoE and analog video output that will add convenience in the installation while saving the installation cost.



The NVC210MP-DN megapixel fixed network camera is the best choice when a traditional camera design is preferred for deterrence. The viewing direction is set once the camera is mounted. Housings are also available for mounting the camera outdoors or in harsh environments. The megapixel resolution allows important areas like entrances or checkouts to be monitored in great detail.



Applications

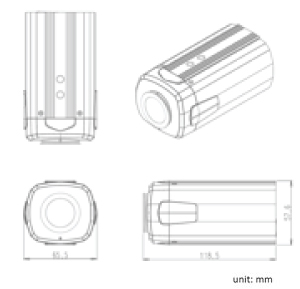

Dimensions

dimensions W. 58mm
H. 66mm

D.119mm






Accessories

PoE Ready Housings

PCHB1300

PCHB1300
All-Weather Camera Housing (CH100HB) with Cable Management and Cable Housing Bracket (CB300)

PCHB2200

PCHB2200
Outdoor Camera Housing (CH200HB) with Standard Enclosure and Cable Housing Bracket (CB200)

PCHB3100

PCHB3100
All-Weather (IP66) Camera Housing (CH300HB) with Cable Housing Bracket (CB100) *Wiper Optional

Lens

AL06060A

AL06060A
Auto Iris Lens, Vari-Focal, 6.0 to 60mm Focal Length

AL1230A

AL1230A
Auto Iris Lens, Vari-Focal, 12.0 - 30.0mm Focal Length

AL0284A

AL0284A
Wide Angle, Max View 94o, 2.8mm Focal Length

Power

PIA100Power over Ethernet Injector





Related Products


NVC300MP

NVC300MP-DN-IR
Megapixel Mini Dome Day/Night Video Camera


NVC360MP

NVC360MP-DN-IR
Megapixel Vandal Proof Dome Day/Night Video Camera
