Key Features
	Filter Changeable True Day and Night Operation for Low Light Application
	Vandal Proof and IP66 Weather Resistant
	Synchronized Audio/Video and Two-Way Audio Communication

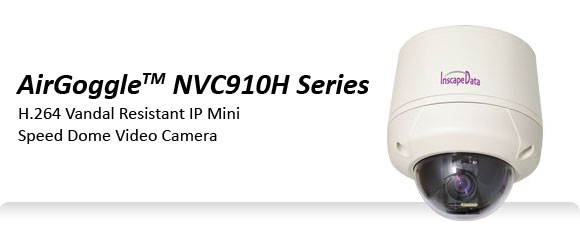

The AirGoggle NVC 910 Professional Network PTZ Mini Dome Day/Night Camera is an all-in-one, high-performance speed dome camera. This low-cost color camera operates effectively both in day and night lighting. It offers full D1 720x480 pixels video resolution and efficient network real-time streaming via MPEG-4 and JPEG video technology. Built-in synchronized audio is software selectable. The embedded web server allows camera access across the network using a standard web browser. An event-driven recording option via video motion detection or  single external sensor inputs allows pre-alarm video images sent via e-mail or FTP. The camera capably pans, tilts, and zooms to one of 165 preset locations. The NVC 910 mini speed dome video cameras is the industry's most silent and reliable pan-tilt-zoom camera. The NVC 910 boasts a 100X zoom (10X optical & 10x digital). The true day and night ICR removable filter is standard with the NVC910 series camera. The rugged mechanical design and IP66 weatherproofing, along with host of convenient features, make the high-performance AirGoggle NVC910 mini speed dome camera ideal for low-cost professional security surveillance applications.

When you use the LPS1000 Outdoor PoE Switch with any of the AirEther Series Wireless products, all the wireless devices and the cameras are networked within a single outdoor LAN (local Area Network). It becomes much easier to manage, integrate, install, maintain, and troubleshoot. Based on Inscape Data's patent-protected technology, this new Outdoor PoE Switch greatly lessens challenges for outdoor LAN design, integration, and deployment.

back to top^

The following table shows the parts to include when using each specific mounting method.

⁽¹⁾ Wiring kit junction box for Ethernet, Power, Relay, I/O Port, RS485

⁽²⁾ Using the embedded mount to hide camera body and show glass dome bubble only

a. 167mm

b. 157mm

c. 100 mm
