Datasheet Application Note

Key Features

Day and Night

2.0 megapixel color video resolution

Weather Vandal Resistant

Dual-Codec supporting H.264 & MJPEG

PTZ

Multi-profile streaming

More Features

Progressive scan Mega pixel, 2.0 Mega Pixel CMOS image sensor



Power over Ethernet (PoE)



Two-way audio support



3-axis lens mount



Vandal proof & weather proof,
IP66 compliant



Analog video output, CVBS (Composite Video Baseband Signal)



Op��onal flash memory for local storage

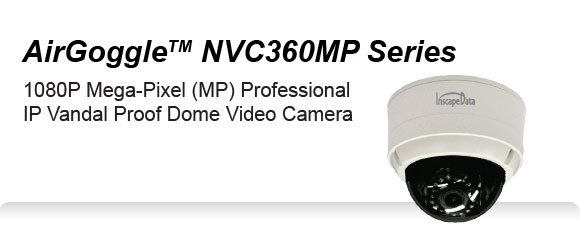

AirGoggle NVC360MP-DN-IR Megpixel Vandal Proof Dome Day/Night Video Camera uses a dual codec supporting H.264 & Motion JPEG digital video compression standards. The NVC360MP-DN-IR megapixel vandal proof dome video camera uses a 2.0 megapixel CMOS image sensor that delivers crisp and clear images, perfect for the identification of objects and persons, and the resolution is at least three times better than an analog CCTV camera. The high quality lens uses DC-iris control for improving the depth of field and protecting the sensor at intensely illuminated scenes.

Another powerful features include optional flash memory for local storage and multiple simultaneous video streams of differentiated resolutions and frame rates, and these two powerful features will secure video storage if the network becomes unavailable and ensure the highest video quality service while enabling simultaneous connections through lower speed networks. Other key features including built-in PoE and analog video output that will add convenience in the installation while saving the installation cost.

The NVC360MP-DN-IR megapixel vandal proof dome IP video camera is designed with a dome style housing and presents friendly looking appearance that can be blended with surrounding structure more smoothly, i.e., ceiling or wall, and it is the best choice when a traditional camera design is preferred for deterrence. The viewing direction is set once the camera is mounted. The megapixel resolution allows important areas like entrances or checkouts to be monitored in great detail.



App



back to top^

Mounting

The following table shows the parts to include when using each specific mounting method.

Wall Mounting

Ceiling Mounting

SDWM001v2



SDWM001M

Outdoor Wall Bracket Kit

SDPM001v2

SDCM001M

Outdoor Ceiling Bracket Kit



back to top^

Dimensions



back to top^

Related Products


NVC210MP

NVC210MP-DN
Megapixel Day/Night Fixed Camera


NVC300MP

NVC300MP-DN-IR
Megapixel Mini Dome Day/Night Video Camera
