home > products >poe & surge protection > LPS1000FE-T1 fast ethernet poe

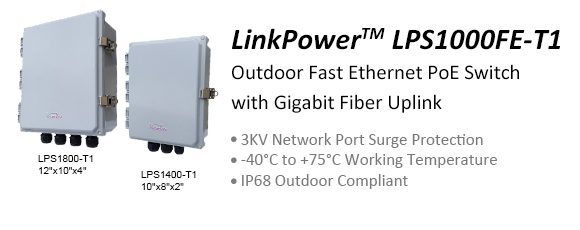

LinkPower1000 Outdoor Fast Ethernet PoE Switch - 3KV Network Port Surge Protection -40~ +75°C Working Temperature IP68 Outdoor Compliant

The LinkPower™ LPS1000FE-T1 Outdoor Fast Ethernet PoE Switch Series offers from 4 to 8-Port 10/100Mbps Managed IEEE802.3af and IEEE802.3at PoE (Power over Ethernet) Network Switch with 1-Port Gigabit Fiber and 1-Combo Gigabit Fiber/RJ45 Port and is the industry first outdoor weatherproof industrial 10/100Mbps Ethernet switch that delivers data and power over one single network cable protected with an IP68 compliant weatherproof enclosure. The LPS1000FE-T1 Fast Ethernet PoE Switch Series has the following six sub-models:



Product Line

Product Model

Model Name

PoE Port Output

LPS1000FE-T1 Outdoor Fast Ethernet PoE Switch Series

LPS1400af-T1

Outdoor Unmanaged 10/100Mbps 4-Port 802.3af PoE Switch with 2 SFP Fiber Uplink Ports

15.4W

LPS1400at-T1

Outdoor Unmanaged 10/100Mbps 802.3af/at 4-Port PoE Switch with 2 SFP Fiber Uplink Ports

30W

LPS1800af-T1

Outdoor Unmanaged 10/100Mbps 802.3af 8-Port PoE Switch with 1 SFP Fiber Port and 1 Combo 10/100Mbps SFP/RJ45 Uplink Ports

15.4W

LPS1800at-T1

Outdoor Unmanaged 10/100Mbps 8-Port 802.3af/at PoE Switch with 1 SFP Fiber Port and 1 Combo Gigabit SFP/RJ45 Uplink Ports

30W

LPS1800afm-T1

Outdoor Managed 10/100Mbps 8-Port 802.3af PoE Switch with 1 SFP Fiber Port and 1 Combo Gigabit SFP/RJ45 Uplink Ports

15.4W

LPS1800atm-T1

Outdoor Managed 10/100Mbps 8-Port 802.3af/at PoE Switch with 1 SFP Fiber Port and 1 Combo Gigabit SFP/RJ45 Uplink Ports

30W



The LPS1000FE-T1 Outdoor 10/100Mbps PoE Series with the six sub-models is designed for industrial and commercial applications, e.g., video surveillance, remote security, wireless mesh, carrier wifi installations, and etc. The terminal equipment, i.e., powered devices, such as weather-proof IP camera, high performance wireless AP and industrial IP telephony. With the two port 10/100Mbps fiber ports, it can transfer data up to a distance of 120Km from SFP fiber port to a remote control center and the systems is also offer with powerful anti-electromagnetic interference feature. Additionally, the LPS1000FE-T1 Fast Ethernet PoE Switch Series is designed for harsh outdoor environments with features such as a wide working temperature range from -40ºC to +75ºC and 3KV Ethernet port surge protection that can ensure the reliability of the uninterrupted PoE network operations.


The LPS1000FE-T1 Outdoor 10/100Mbps PoE Series is a network switch with Link Aggregation, VLAN, Trunking, SNMP, and QoS technology to meet the accelerating demand for powering the most demanding outdoor PoE devices. The LPS1000FE-T1 Fast Ethernet PoE Switch provide LED displays internally that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices with multiple wires, such as Inscape Data's IP cameras and SB300/BR300, and SB1000/BR1000 wireless products, thereby reducing equipment and installation costs. The LPS1000FE-T1 10/100Mbps PoE Series offers the following key features:

Features

  • Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x,IEEE 802.1D, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1W, SNMP, IGMP standards
  • Four to eight 10/100Mbps self-sensing RJ45 ports, support IEEE802.3af/at PoE power based on the models
  • Two gigabit SFP fiber ports are capable of high bandwidth and long distance transmission
  • All ports support auto-flip (Auto MDI/MDIX)
  • Each PoE port can provide power up to 15.4W & 30W based on the sub-models
  • Supply power for powered devices compatible with IEEE802.3af/at
  • Support IEEE802.3x full duplex flow control and duplex backpressure flow control
  • 8.8G Backplane Bandwidth
  • 1K MAC address table
  • Its 3KV network port surge protection can adapt to harsh outdoor environment
  • Working temperature from -40C ~ +75C at full load
  • Compatible with Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocols
  • Support authentication features including TACACS+, IEEE 802.1x, HTTPS and SSH, and MAC address port locking
  • Two of the managed models support SNMP V1/V2c/V3 for different levels network management
  • Two of the managed models Adopt RMON to effectively improve network surveillance and forecasting capabilities
  • Auto accident report through E-mail and the output of electric relay

sys config

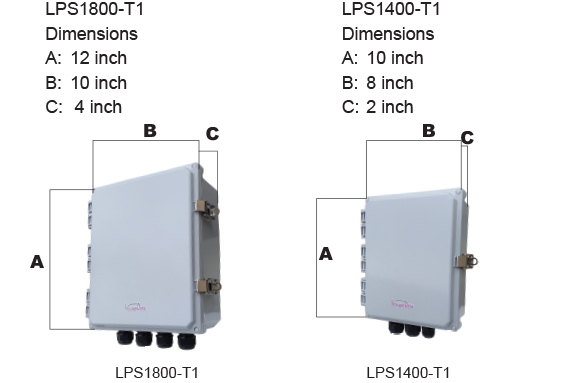

Dimensions

dimension drawing

Internal View

LPS2800 internal internal

LPS1800-T1

LPS1400-T1

Standard Accessories

PFCK0001-3
Power & Fiber Connector Kit

Power and Fiber Connector Kit

ECK0001-4
Ethernet Connector Kit

Ethernet Connector Kit

PECK0001
Power & Ethernet Conduit Kit

WMK0001

Wall Mounting Kit



Power and Ethernet Condult Kit

MMK0001

APCK0001
AC Power Cable Kit

AC Power Cable Kit



Optional Accessories

MMK0001-S

Mast Mounting Kit

Datasheet

MMK0001-L

Mast Mounting Kit

Datasheet

MMK0001 MMK0001

SFP Module Accessories

SFP-Single-ModeSFP Duplex 1.25Gbps 3.3V Single-Mode Transceiver (Datasheet)

SFP-Single-ModeSFP Duplex 1.25Gbps 3.3V Multi-Mode Transceiver (Datasheet)
