Package includes...

NVC3000H Series


NVC3018MP or NVC3020MP2

BR300 Wireless Bridge

SDWM001v2 Outdoor Wall Mount bracket

PIS100 Ethernet Injector with Ethernet Surge Suppressor


PIA200 Gigabit PoE Injector

Related Datasheets

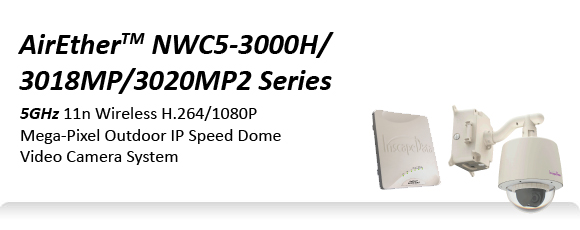

The NWC5-3000 Series are professional wireless speed dome day/night video cameras consisting of two parts: a long range wireless radio with 5GHz built-in 18dBi panel antenna, and an IP speed dome day/night camera with an 18x / 26x / 36x optical zoom Sony lens.  The wireless radio is compliant to IEEE802.11 a/b/g standards using 5Ghz frequencies and is capable of operating as a Wireless Bridge for point-to-point or point-to-multi-point communication.  The NWC3000H Series Speed dome day/night camera comes standard with 18x/26x/36x optical zoom lens and supports full D1 720 x 480 video resolution based on the H.264 and MPEG-4 video compression.  The NWC5-3000 Series products offer the following four key benefits:

  1. IEEE 802.11n Standard Radio with 5GHz Frequency - Integrated with a 5GHz, 18dBi dual polarity 2x2 panel antenna, the wireless video camera system operates at the 5GHz wireless frequency with minimum interference for reliable with 300Mbps data rate and secure video transmission.
  2. Proven Cost Effective Products – Complete cost effective wireless and IP video day/night camera product ready for outdoor deployment and installation
  3. Secure Video Transmission – Secure video transmission over the wireless link by the secure MAC layer access control (ACL) and WPA2 with AES encryption (Wi-Fi Protected Access) security as a point-to-point wireless bridge
  4. All Weather Enclosures – Designed for all weather outdoor applications based on the IP66 camera and IP68 radio compliant enclosures


Wireless Features

Camera Features


802.11n 5GHz

Day and Night

H.264, MPEG & MJPEG Triple Codec Support


18 dBi 2x2 Integrated Antenna


Multi-Profile Streaming

Wireless Media

Wireless Multimedia


IR Compatible Day and Night Operation


^back to top



Main Product Features


Video Camera

Carrier Class Quality
Carrier class broadband wireless access solution provides scalability, reliability, and superior performance in the most challenging environments.


License Free Long Range 5GHz Frequency Operation
5 GHz operation offers over 20 non-overlapping channels for the most flexible interference free application scenario without the need for regulatory frequency licensing.


Integrated 18dBi 2x2 Dual Polarity Antenna
Integrated 5GHz 18 dBi 2x2 dual polarity high gain and high sensitive antenna offers longer wireless range. If extended range up to 50km is desired, the use of higher gain DA5G28M or DA5G32M antenna is optional.

Wireless Multimedia
Based on the IEEE 802.11e standard, Wireless multimedia (WMM) provides enhancement for voice and video over IP applications


Rugged Outdoor Weatherproof Design
The IP68 compliant weatherproof enclosure, connectors, and extreme weather rating electronic components continue to perform in the most extreme weather conditions.


Multi-Mode Configuration
Single device with up to four modes of operation: IEEE compliant 802.11a/b/g Access Point, Wireless Bridge, Wireless Repeater, and IEEE compliant 802.11a/b/g Client.


Power over Ethernet
The built-in PoE feature eliminates power connection at the camera location. This eliminates the need of running an additional power line cable.


Integrated RF Site Survey Tool
RF wireless site survey tool built into every radio for simplified frequency planning and installation.


Secure Wireless Transmission
Equipped with Government Strength Advance Encryption System (AES), transmission of top level information is highly secure with the AirEther outdoor wireless system.


H.264, MPGE, & MJPEG Triple Codec Operation

State of the art H.264 digital video encoding allows for the highest quality D1 video at the lowest bandwidth possible. Motion JPEG (MJPEG) and MPEG digital still video encoding allows for high quality recording


Multi-profile Streaming

Up to 3 streams of different resolutions, frame rates and codec selections


IR Compatible Day and Night Operation

The automatic day and night functionality with removable IR cut filter (ICR) and digital shutter speed (DSS) deliver optimal day time color video and high-quality black and white video in dark conditions


Automatic Continuous Scan, Tour, and Pattern Operation

Designed for automatic continuous scan, tour, and pattern operation, this product is well suited for use in high demanding automatic 360-degree Pan-Tilt-Zoom applications


Simultaneous IP and CCTV Video Operation

This has the interface connectivity for both IP and CCTV monitoring and recording systems


Intelligent Full Featured Pan Tilt Zoom and Programming

Pan and tilt speeds are automatically adjusted based on zoom level during manual control to provide 0.024 degrees precision. Auto scan, 8 group tours, 165 preset positions, 8 programmable patterns and sectors, 24 privacy masking zones, and multiple I/O ports allows precise customized pan tilt zoom automation. Each preset locations can be individually programmed with the dwell time and pan/tilt speed



Auto-flip functionality eliminates the mechanical stop limitation allowing for continuous panning operational and Tilt Operation overcomes mechanical limitation


High Speed Pan/Tilt Operation

350 degrees per second continuous panning and 250 degrees per second tilting ensures fast transition to any of the 165 preset locations


Integrated Sensor, Alarm, and Relay Ports

Integrated sensor input, alarm output, and video motion detection provides actionable event trigger able to send a video clip via email or FTP and turn on/off external relays


Power over Ethernet (PoE)
