PRODUCTS / COMMERCIAL POE SWITCHES

LinkPower™ 2000AF, Unmanaged
Gigabit PoE Switch Series

The LinkPower 2000AF Series from Inscape Data is a reliable line of unmanaged Gigabit PoE switches designed to deliver power and data in a single, streamlined solution. Built with IEEE802.3af PoE technology, each port provides up to 15.4W of power—ideal for supporting a wide range of network devices such as IP cameras, wireless access points, VoIP phones, and other PoE-enabled equipment without the need for additional electrical wiring.

With Gigabit-speed performance across all ports, the 2000AF Series is engineered to handle real-time video streaming, large data transfers, and other bandwidth-intensive applications with ease. The series offers flexible models with varying port counts and uplink options—some with dedicated RJ45 uplinks and others with SFP fiber ports—allowing for seamless integration into both small and large-scale networks.

Designed for plug-and-play convenience and 1U rackmount installation, the LinkPower 2000AF Series helps businesses extend their networks Buy Now quickly and efficiently while maintaining high performance, simplified deployment, and reduced infrastructure costs.

  • No software or protocol configuration needed; easy 1U rackmount installation
  • All ports support full wire-speed switching; fast data transfer with frame sizes from 64 to 1536 bytes
  • IEEE 802.3af PoE supports up to 15.4W per port for IP phones, cameras, and other devices—no need for nearby AC outlets
  • Lightning protection on all network ports (AC port: ±2kV differential, ±4kV common mode)
  • Ensures critical data gets priority even during high traffic; includes auto-sensing ports and advanced certifications
  • All PoE ports auto-adjust to 10/100/1000Mbps; includes uplink ports
Product Model Description PoE Output
LinkPower2004AF-2G 10/100/1000Mbps 6-Port 802.3af PoE Switch with 2 RJ45 Gigabit Uplink Ports,
Up to 15.4W per PoE Port, Not to Exceed 60W for a Total of 4 PoE Ports
15.4W per Port / 60W Total

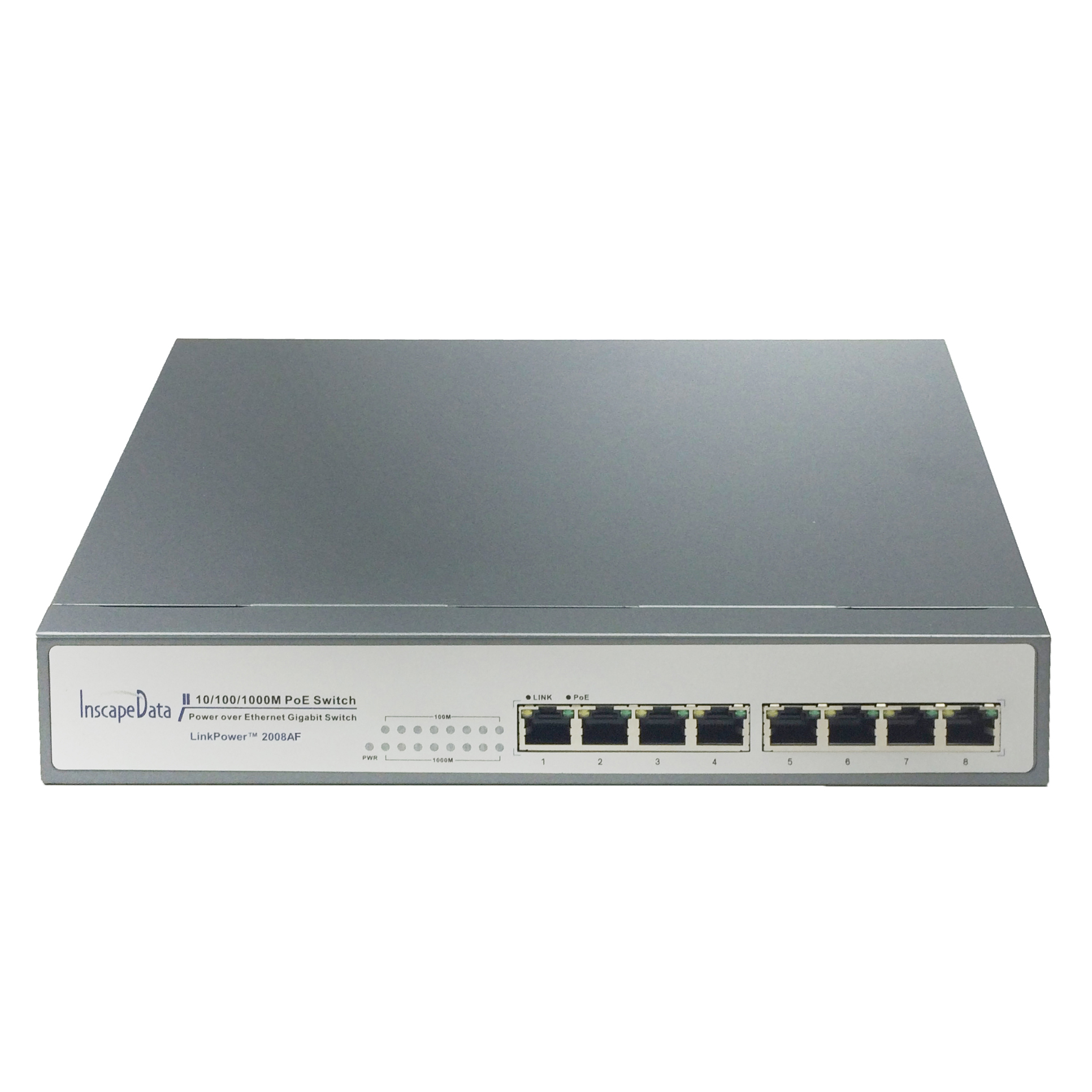

LinkPower2008AF 10/100/1000Mbps 8-Port 802.3af PoE Switch, Up to 15.4W per PoE Port,
Not to Exceed 120W for a Total of 4 PoE Ports
15.4W per Port / 120W Total

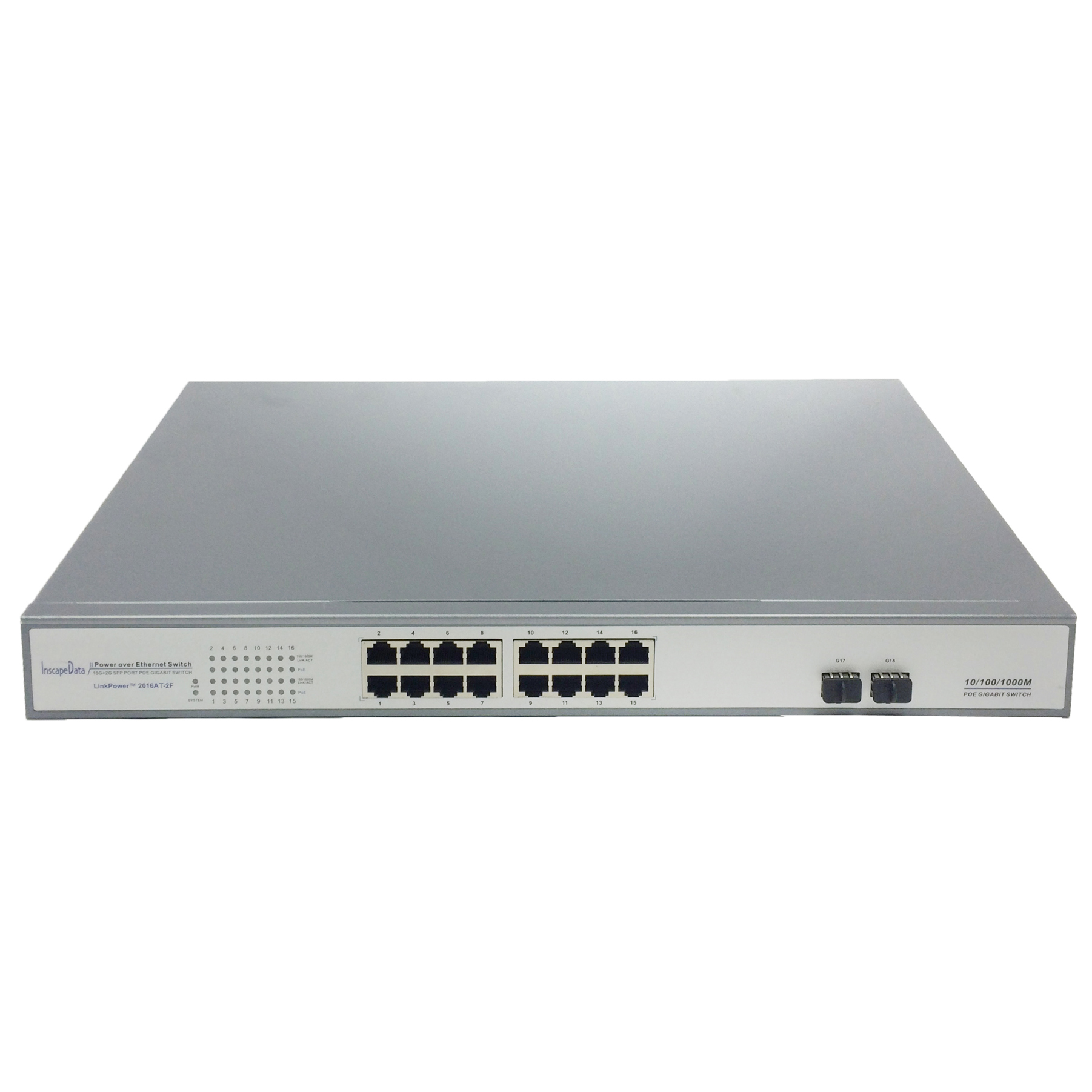

LinkPower2016AF-2F 10/100/1000Mbps 18-Port 802.3af PoE Switch with 2 SFP Gigabit Uplink Ports,
Up to 15.4W per PoE Port, Not to Exceed 260W for a Total of 4 PoE Ports
15.4W per Port / 260W Total

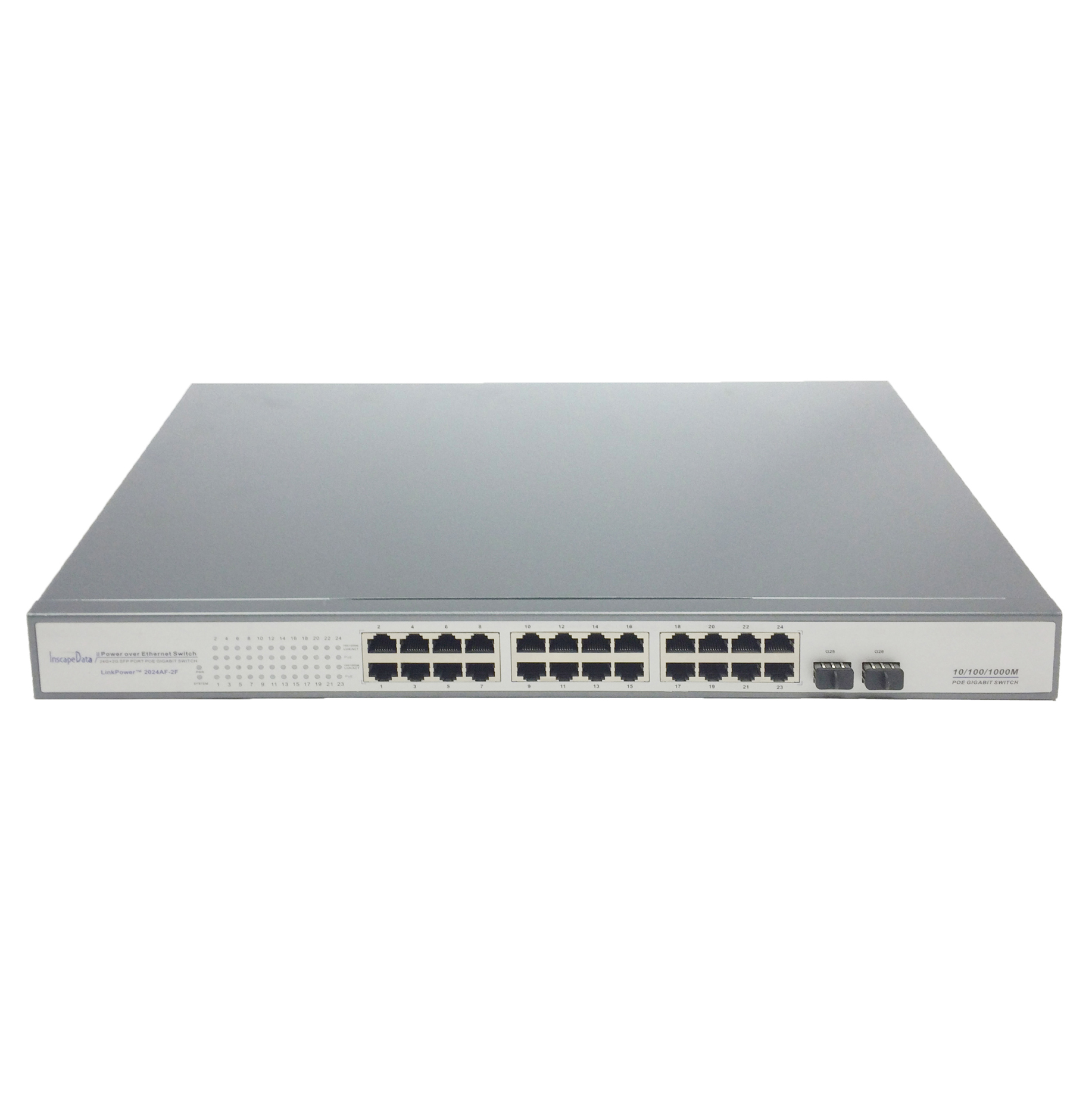

LinkPower2024AF-2F 10/100/1000Mbps 26-Port 802.3af PoE Switch with 2 SFP Gigabit Uplink Ports,
Up to 15.4W per PoE Port, Not to Exceed 440W for a Total of 4 PoE Ports
15.4W per Port / 440W Total
