(1) Wiring kit junction box for Ethernet, Power, Relay, I/O Port, RS485

home > products >airgoggle > nvc3030MP3-WDR

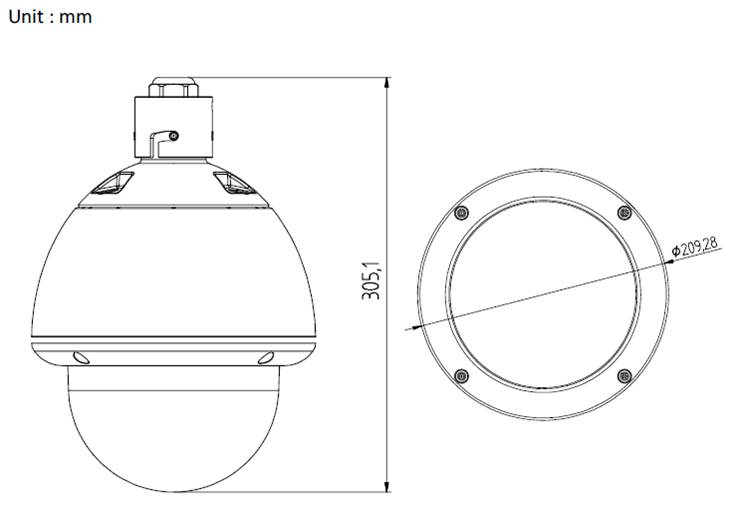

Mounting | Dimensions | Related products


Datasheet Application Note

Key Features

Day and Night

H.264, MPEG4 & MJPEG Triple Codec Support


3 Megapixels

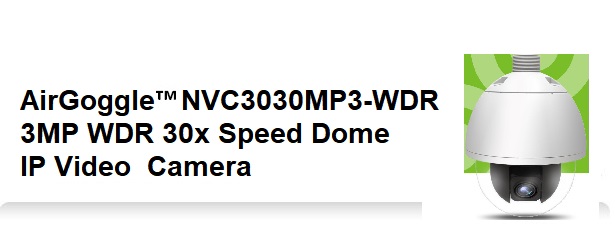

AirGoggle NVC3030MP3-WDR 3 Mega-Pixel WDR Speed Dome Camera with 30x optical zoom uses a triple codec supporting H.264, MPEG & Motion JPEG digital video compression standards. With full HD 2048x1536 H.264/PJPEG/MPEG4 video resolution and efficient network real-time streaming, the NVC3030MP3-WDR PTZ speed dome IP video camera provides high quality digital video without the high demand of network bandwidth. Standard features sets of the NVC3030MP3-WDR include selectable ADPCM audio, event-driven recording video motion detection or quad external sensor inputs, pan / tilt / zoom to 128 preset location and 4 patrol tours, and integrated IP video web server. In addition, the NVC3030MP3-WDR model is designed with a 1/3 progressive scan CMOS WDR Image Sensor for viewing in extreme lighting situations and more clearly in darkness, and it provides excellent resolution and color accuracy allows better object and person identification.


The AirGoggle NVC3030MP3-WDR are offered in a 30x optical zoom lens, filter changeable day & night, or wide dynamic digital imaging optics. The rugged mechanical design, along with a host of convenient features, makes the high-performance AirGoggle NVC3030MP3-WDR ideal for professional security surveillance applications.


back to top ^

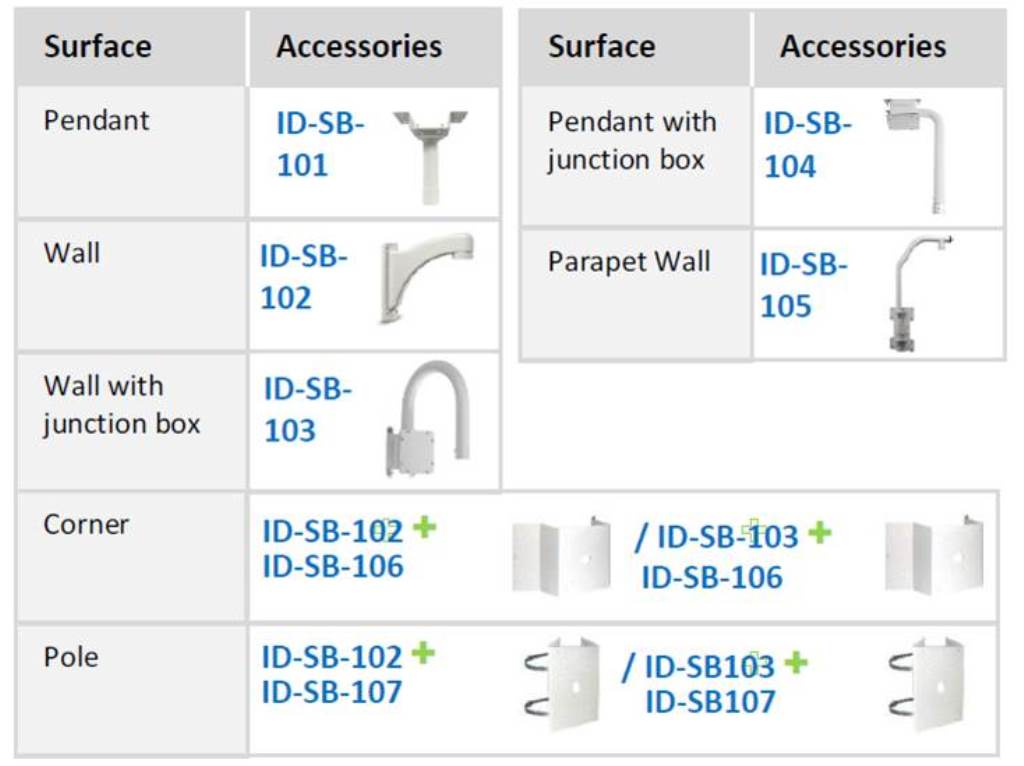

Mounting Specifications

The following table shows the parts to include when using each specific mounting method.
