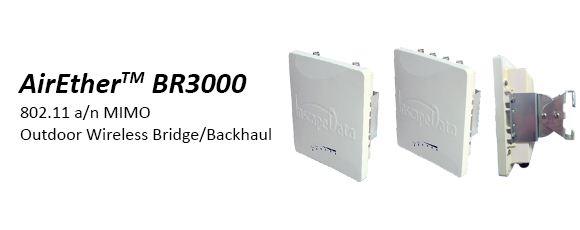

The AirEther BR3000 802.11a/n MIMO Outdoor Wireless Bridge is a family of high performance carrier class outdoor wireless bridge system with an integrated 5Ghz 18dBi panel antenna that delivers maximum network performance from 300Mbps on Solo model to aggregated 600Mbps bandwidth on the Duo and 900Mbps on the Trio models for point to point and point to multi-point high bandwidth multimedia communications, e.g., video security, or long range communication backhauls. The BR3000 outdoor radio product family consists of the following three models:
- BR3500 – 802.11 a/n MIMO Outdoor Wireless Bridge
- One 5GHz high power radio, 26 dBm transmit power per radio per chain
- Two external antenna connectors
- 300Mbps Bandwidth
- BR3500 Duo – 802.11 a/n MIMO Dual Radio Outdoor Wireless Bridge
- Two 5GHz high power radio, 26 dBm transmit power per radios per chain
- Four external antenna connectors
- 600Mbps Aggregated Bandwidth
- BR3500 Pro – 802.11 a/n MIMO Outdoor Wireless Bridge
- One 5GHz high power radio, 26 dBm transmit power per radio per chain
- One integrated 5GHz 18dBi dual polarity patch antenna
- 300Mbps Bandwidth
- BR3500 Duo Pro – 802.11 a/n MIMO Dual Radio Outdoor Wireless Bridge
- Two 5GHz high power radio, 26 dBm transmit power per radios per chain
- One integrated 5GHz 18dBi dual polarity patch antenna (Pro only)
- Two external antenna connectors
- 600Mbps Aggregated Bandwidth
The AirEther BR3000 outdoor 802.11a/n MIMO wireless bridge system is built with a diecast aluminum enclosure with a plastic upper case that is designed to compliant to IP68 outdoor rating and is capable of withstanding exposure to high and low temperatures, persistent moisture and precipitation, and is fully sealed for protection from airborne contaminants. All electrical interfaces include industrial-strength surge protection. With wall and mast mounting options, the BR3000 is built to provide years of trouble-free operation.
The AirEther BR3000 outdoor 802.11a/b/g/n MIMO wireless system is designed with the Power over Ethernet (PoE) feature and operates from a 100-240 volt AC power source, which allows power and data transmitted over a single network cable. This capability provides for simple, convenient installation. Furthermore, when you use the LPS1000 Outdoor PoE Switch and networking with any of the NVC Series H.264 and Mega-pixel Cameras, all the wireless devices and the cameras are networked within a single outdoor LAN (Local Area Network). It becomes much easier to manage, integrate, install, maintain, and troubleshoot. Based on Inscape Data's patent-pending technology, our new Outdoor PoE Switch greatly lessens challenges for outdoor LAN design, integration, and deployment.
