LinkPower™ LPS8000DRG, All-in-One Box
Outdoor DIN Rail PoE Switch System

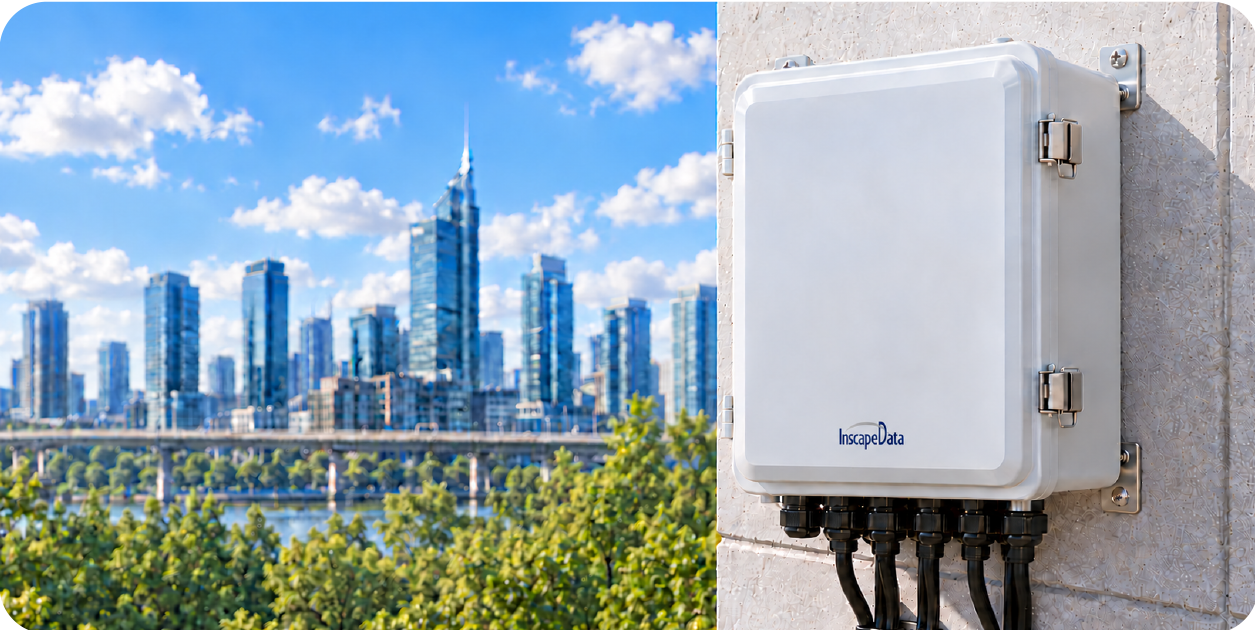

The LinkPower™ LPS8000DRG is a highly versatile outdoor networking solution, featuring Inscape Data's patented All-in-One Box outdoor enclosure. This rugged enclosure ensures your network remains protected and operational in harsh environments. Integrated with a DIN Rail 240W power supply, the LPS8000DRG supports up to seven LinkPower™ Industrial PoE Switches, including models like LPS3400ATM, LPS3400ATMP, LPS3802ATM, LPS3800ATM, LPS6844ATM, LPS7844ATM, and LPS10868ATMP.
Designed for scalability, the LPS8000DRG can accommodate up to two DIN Rail power supplies and two industrial PoE switches, providing a total of 32 ports—16 PoE and 16 uplink. This makes it an ideal choice for applications requiring extensive connectivity, such as Smart City Wifi, IP Video Security systems, and high bandwidth video transmission.
The LPS8000DRG simplifies installation by housing multiple switches and power supplies within a single, secure enclosure, reducing complexity while ensuring high performance. Whether for urban infrastructure or advanced video streaming, the LPS8000DRG delivers the reliability and flexibility needed for modern outdoor networking demands.

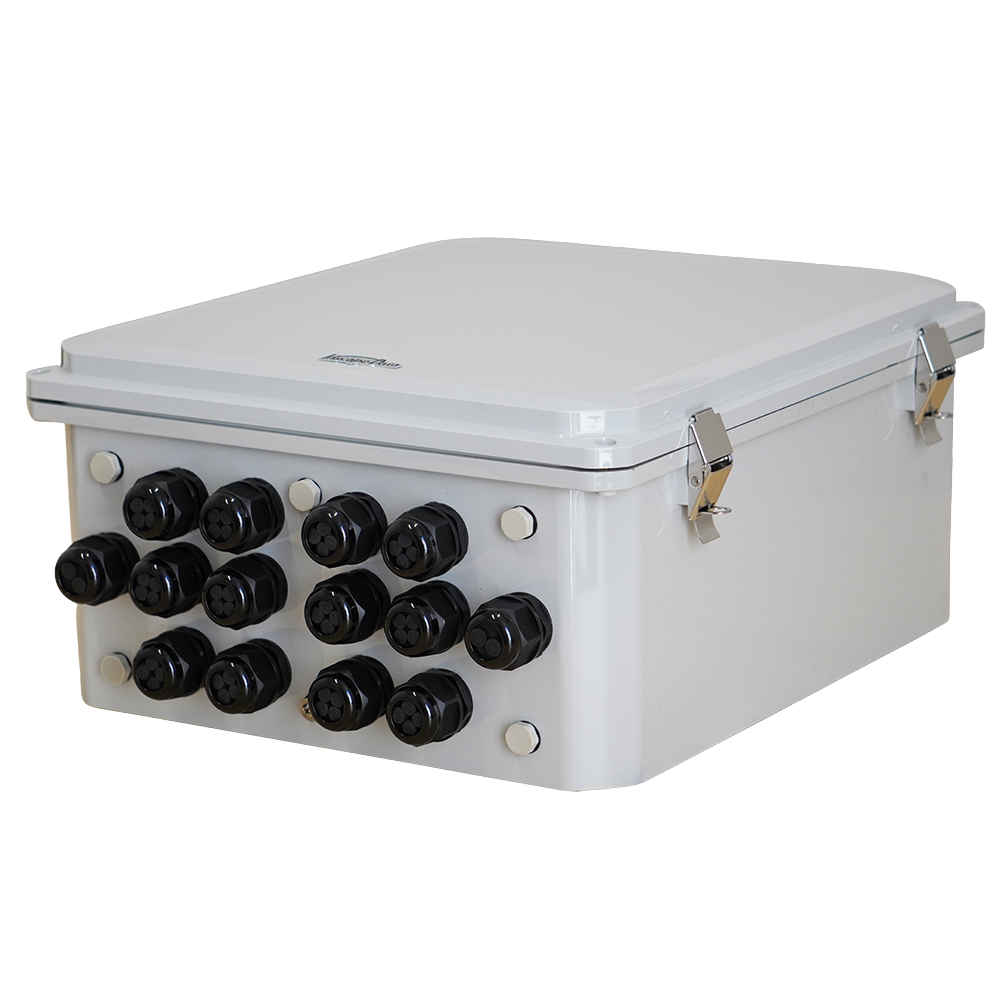

- Impact-resistant polycarbonate enclosure IP68 with hinged cover with stainless steel hardware and four cover screws
- Stainless steel latch with area for padlock
- Supports 32 Total Ports: 16 RJ45 Ports, 8 RJ45/SFP Ports, and 5 Vents, Cable Gland IP68 Waterproof Connectors
- DIN Rail 240W Power Supply
- Support Standard Din-Rail Mount Brackets
- Comply with DIN 50045, 50022 and 50035 Standards
- Custom-design inside frame for better space management and potential water immersion prevention
- Internal cable storage and management for easy access and safety
- Easy access to the switch and DIN Rail power supply
- Ventilation with thermostat controlled fan for the enclosure to reduce heat and the internal moisture
- Enclosure dimensions, 16x14x7 Inch
- Certification includes UL94 V-0, UL746C 5VA
- Convenient lugs available throughout the DIN Rail panels for securing wire harness with zip ties on your devices
Download LPS8000DRG Datasheet
