LinkPower™ LPS10240ATP-T1, All-in-One Box
Unmanaged Outdoor 2.5 Gigabit PoE Switch

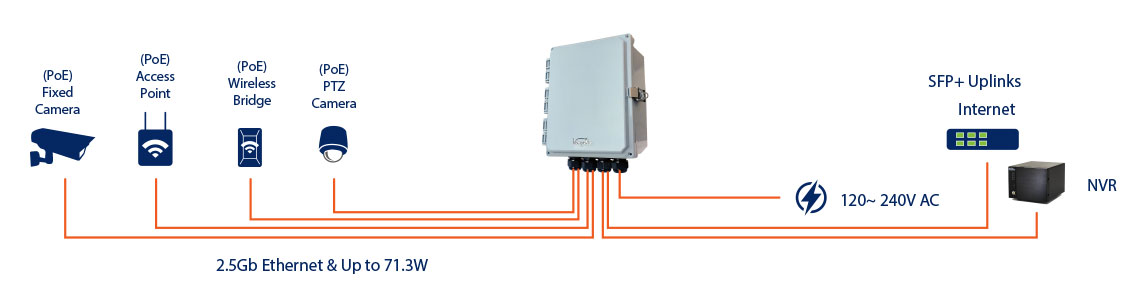

The LinkPower™ LPS10240ATP-T1 is a rugged, unmanaged outdoor 2.5Gb 802.3bt (PoE++) switch, engineered for high-performance networking in industrial environments. It features four 10/100/1000/2500Base-T PoE++ ports, each delivering up to 90W of power, alongside two 10Gb SFP+ fiber uplink ports for high-speed data transmission over long distances. With an integrated 400W power supply, this switch provides reliable power and connectivity for PTZ security cameras, wireless access points, and industrial sensors.

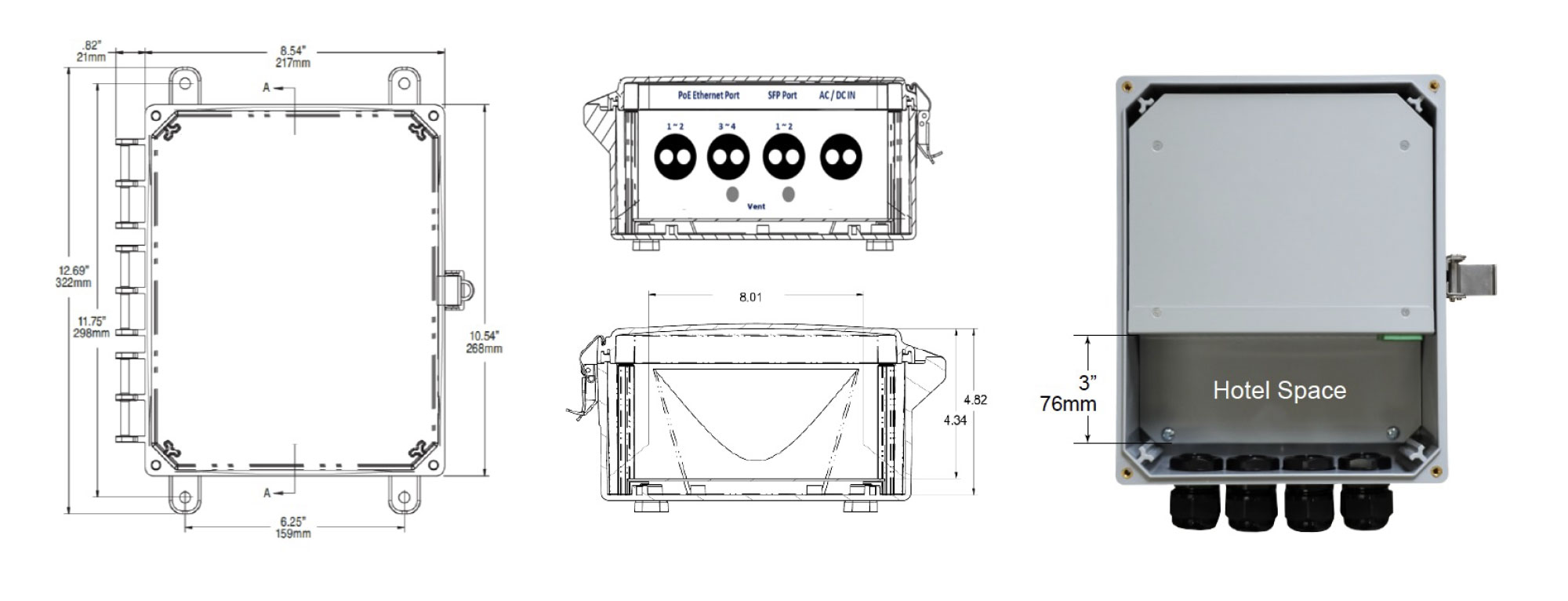

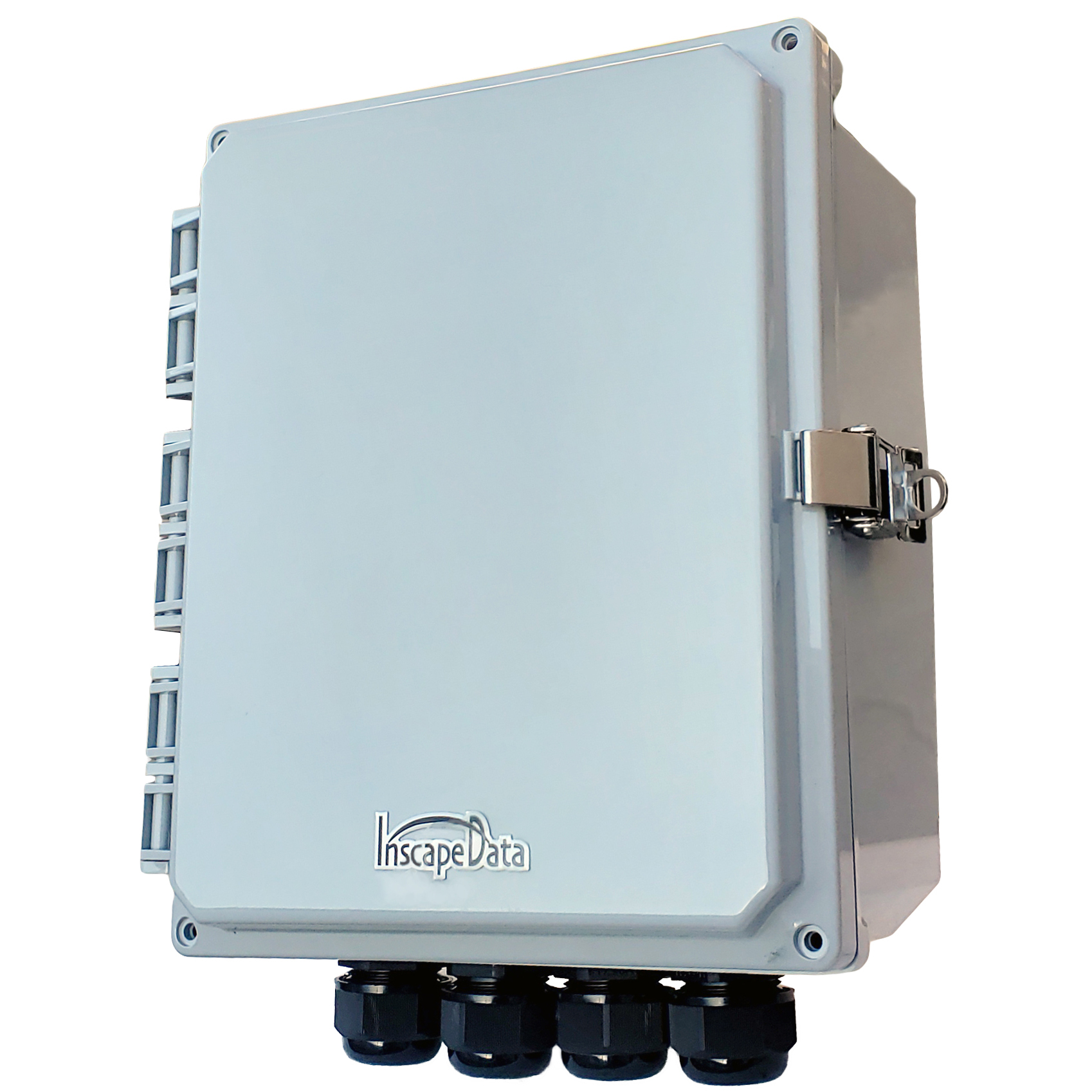

Housed in a weatherproof IP66/IP68-rated enclosure, the LPS10240ATP-T1 is built to endure harsh outdoor conditions. When securely latched, it meets IP66 protection standards, shielding against dust and water jets. When fully sealed with four corner cover screws, its protection upgrades to IP68, ensuring resistance to water immersion and extreme weather.

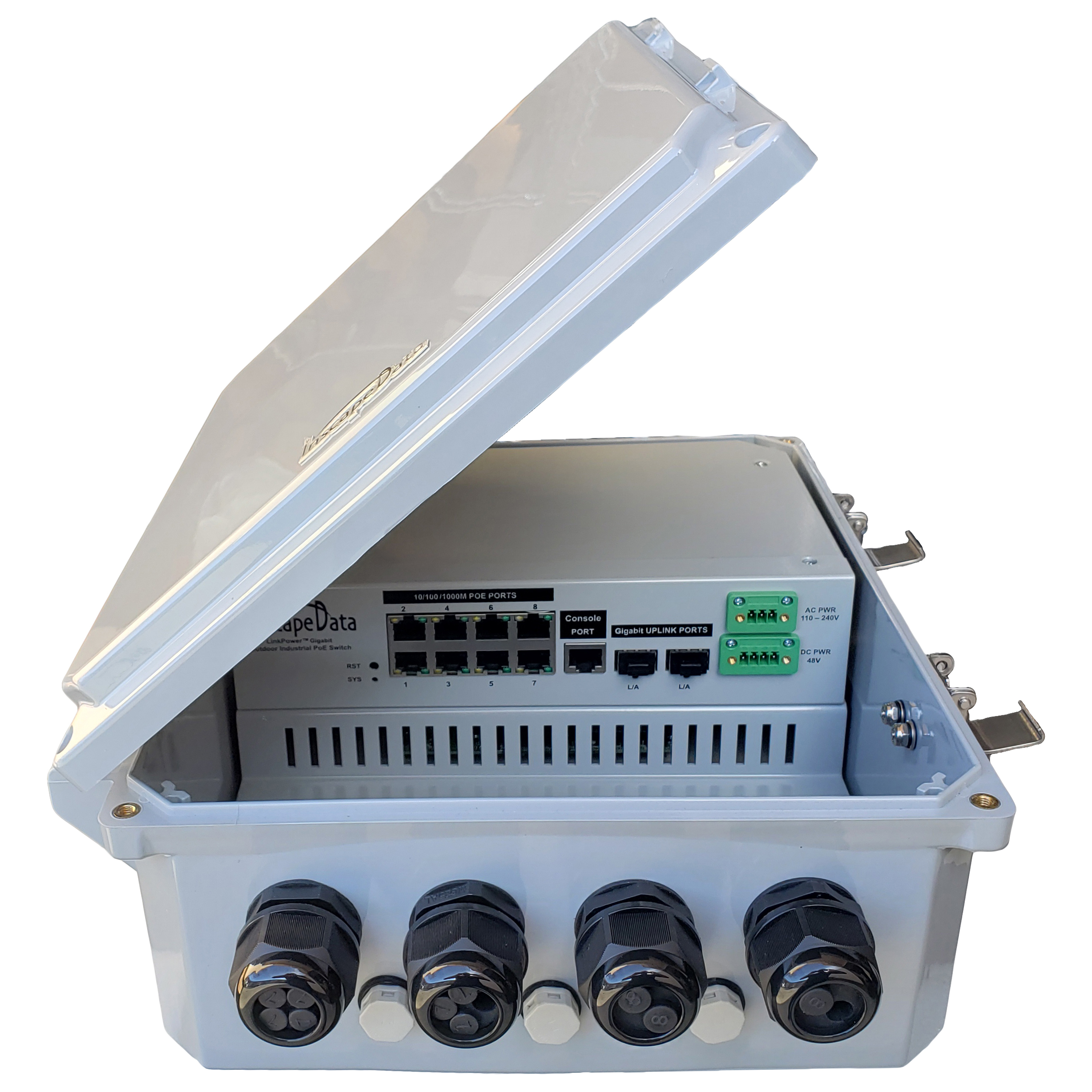

Designed as an all-in-one PoE++ networking solution, this switch eliminates the need for additional enclosures by integrating both switching and power supply functions into a single unit. Its plug-and-play unmanaged design allows for quick deployment and stable PoE networking across industries such as transportation, energy, mining, construction, and industrial automation.
With high-speed 2.5Gb connectivity, robust power delivery, and superior environmental protection, the LPS10240ATP-T1 is a cost-effective and reliable solution for demanding outdoor PoE applications.
- 4x 10/100/1000/2500Base-T RJ45 ports and 2× 1/2.5/10G SFP+ fiber • Requires no configuration, allowing for quick deployment and ports, enabling flexible, high-bandwidth networking
- Complies with IEEE 802.3x full-duplex and back pressure half-duplex standards for optimized data flow
- IEEE802.3bt PoE++ Maximum PoE power per port is 90W, backward compatible with IEEE802.3af/at, automatically detect PoE devices to supply power without damaging non-PoE device
- Features PoE power prioritization, ensuring high-priority ports receive power first when capacity is limited, preventing overloading
- Eliminates the need for external power sources, providing stable and efficient power distribution for multiple high-power PoE devices
- Built with an IP66-rated enclosure when latched and IP68 protection when fully secured with four corner cover screws, ensuring reliable operation in extreme environments
- Requires no configuration, allowing for quick deployment and stable performance in transportation, energy, mining, and industrial automation applications
- 60Gbps Non-blocking switching capacity & 44.64Mpps forwarding rate @ 64 byte
- 4M frame buffer memory and 4K entries MAC address table
- IEEE802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
- Supports integrated address look-up engine, automatic address learning and address aging
- Supports Jumbo Frame in all speeds (up to 12K bytes packet frame size)
Download LPS10240ATP-T1 Datasheet
MMK0001-L Mast Mounting Kit
(Not Included with Purchase)
WPCK0004 4-Hole Ethernet & SFP Connector Kit
WPCK0002 2-Hole Ethernet & SFP Connector Kit
WMK0001 Wall Mounting Kit
APCK0001 AC Power Cable Kit
DPCK0001 DC Power Cable Kit
(Not Included with Purchase)
LPS SM 7832i SFP+ LC 10Gb Single Mode SFP+ Transceiver
LPS MM 6630i SFP+ LC 10Gb Multimode SFP+ Transceiver
