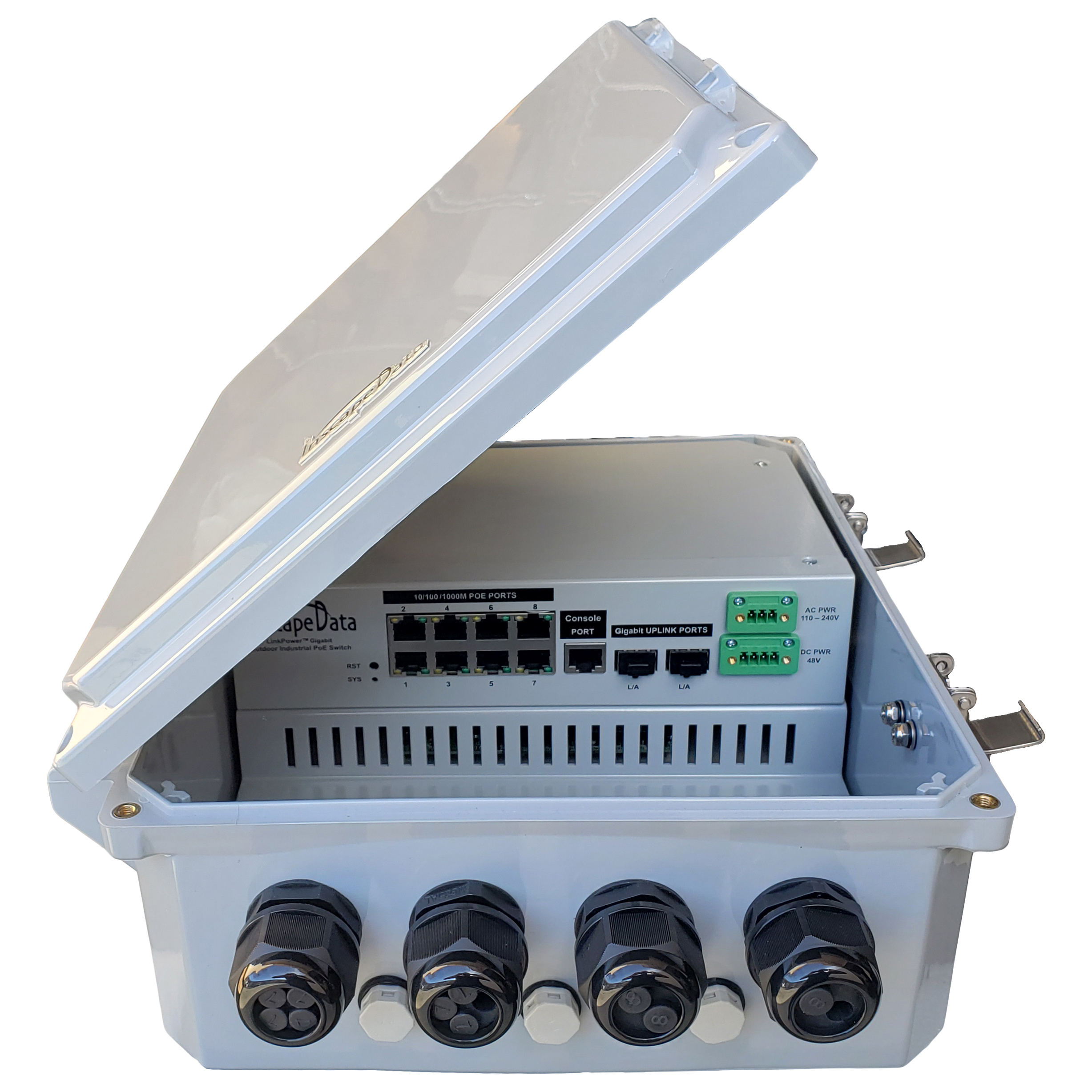

LinkPower™ LPS3802ATMP-T1
L2+ Managed Outdoor Gigabit 802.3bt PoE Switch

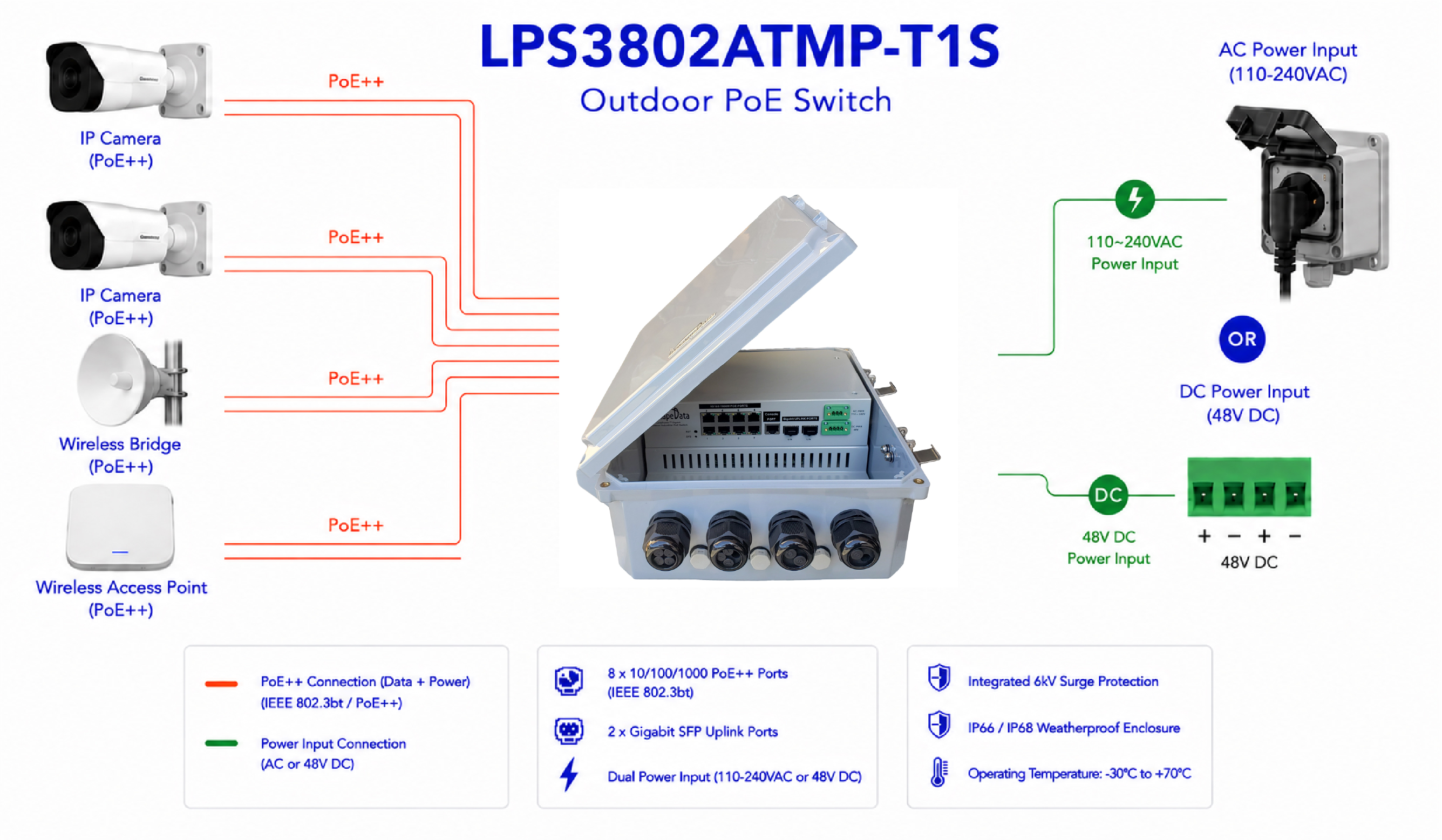

The LinkPower™ LPS3802ATMP-T1 is a Layer 2+ 10-port Gigabit Managed Outdoor PoE switch, designed to deliver high-power PoE++ (802.3bt) connectivity for industrial and commercial applications. With 8 Gigabit PoE++ ports providing up to 90W per port and a total system power of 400W, this switch is built to support IP cameras, wireless access points, and industrial telephony. Its two SFP+ fiber uplink ports ensure long-distance data transmission up to 120km, making it ideal for large-scale deployments.

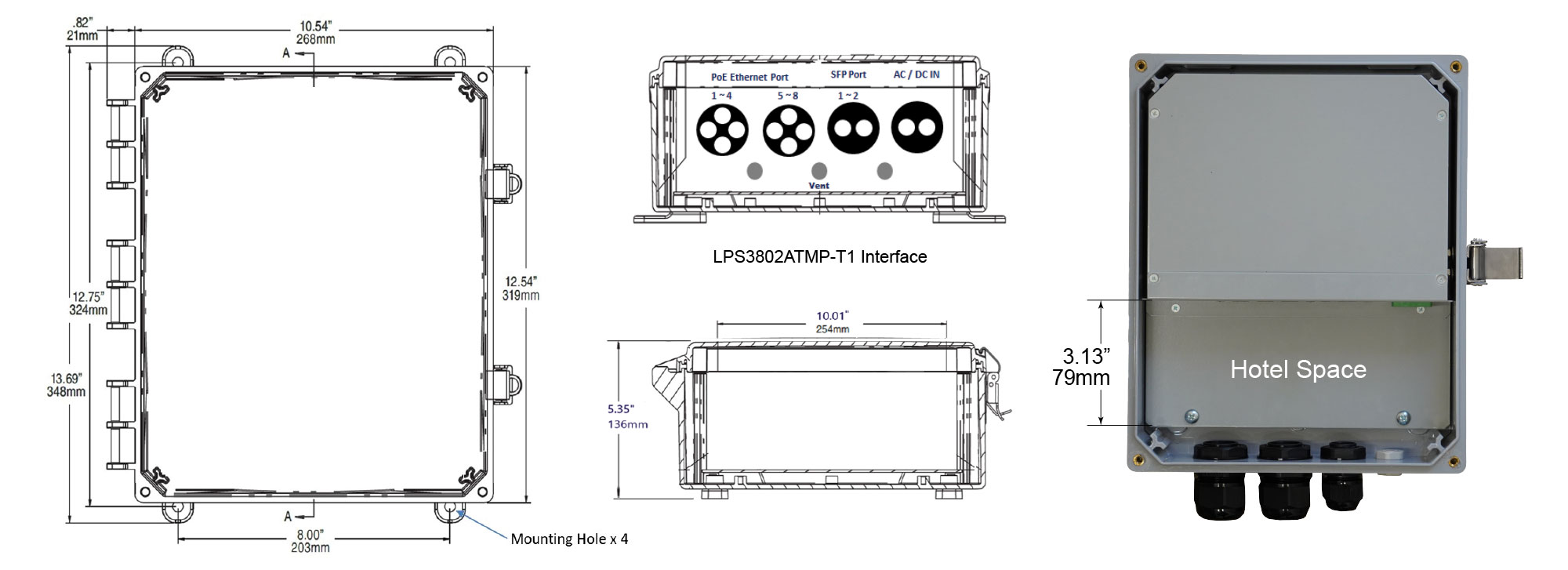

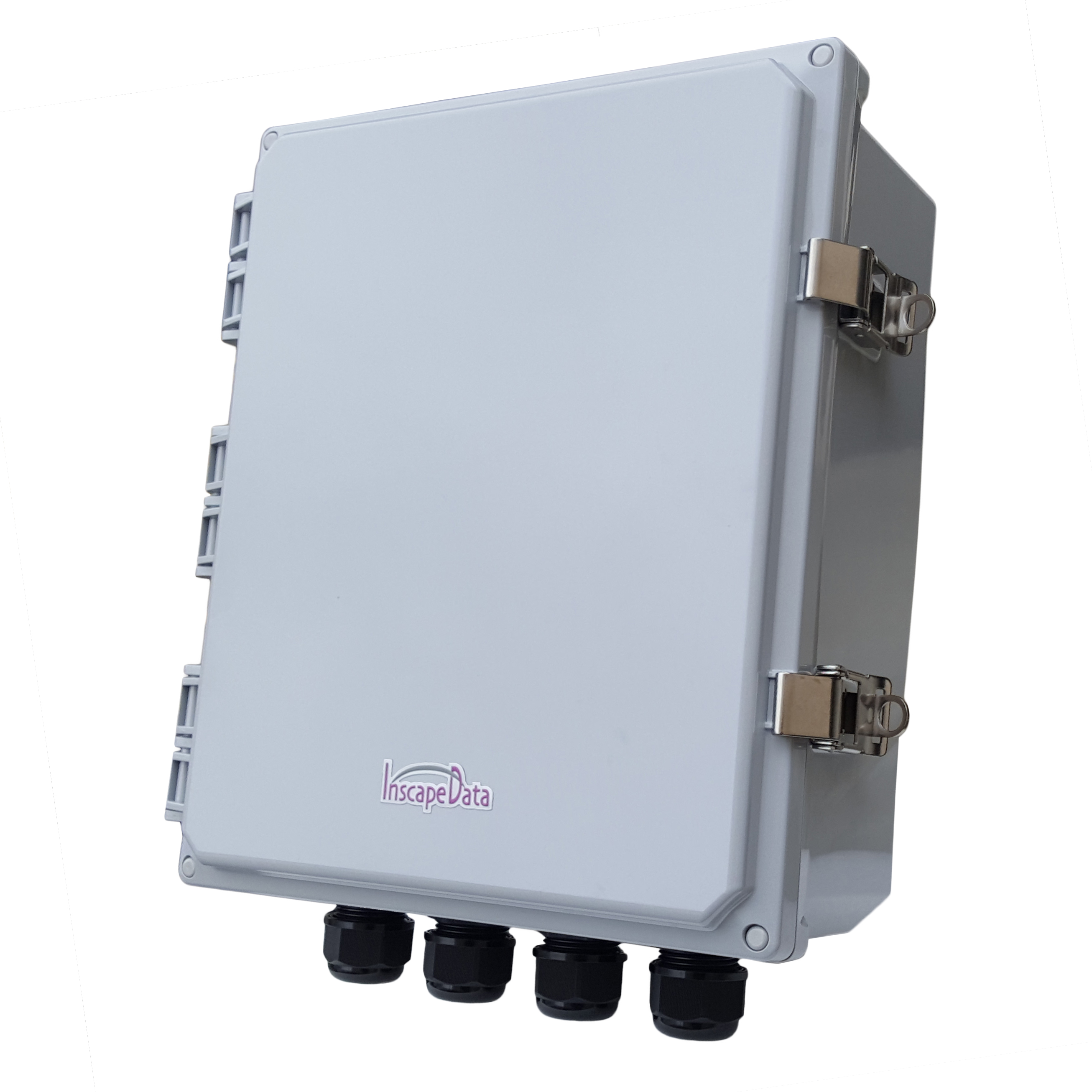

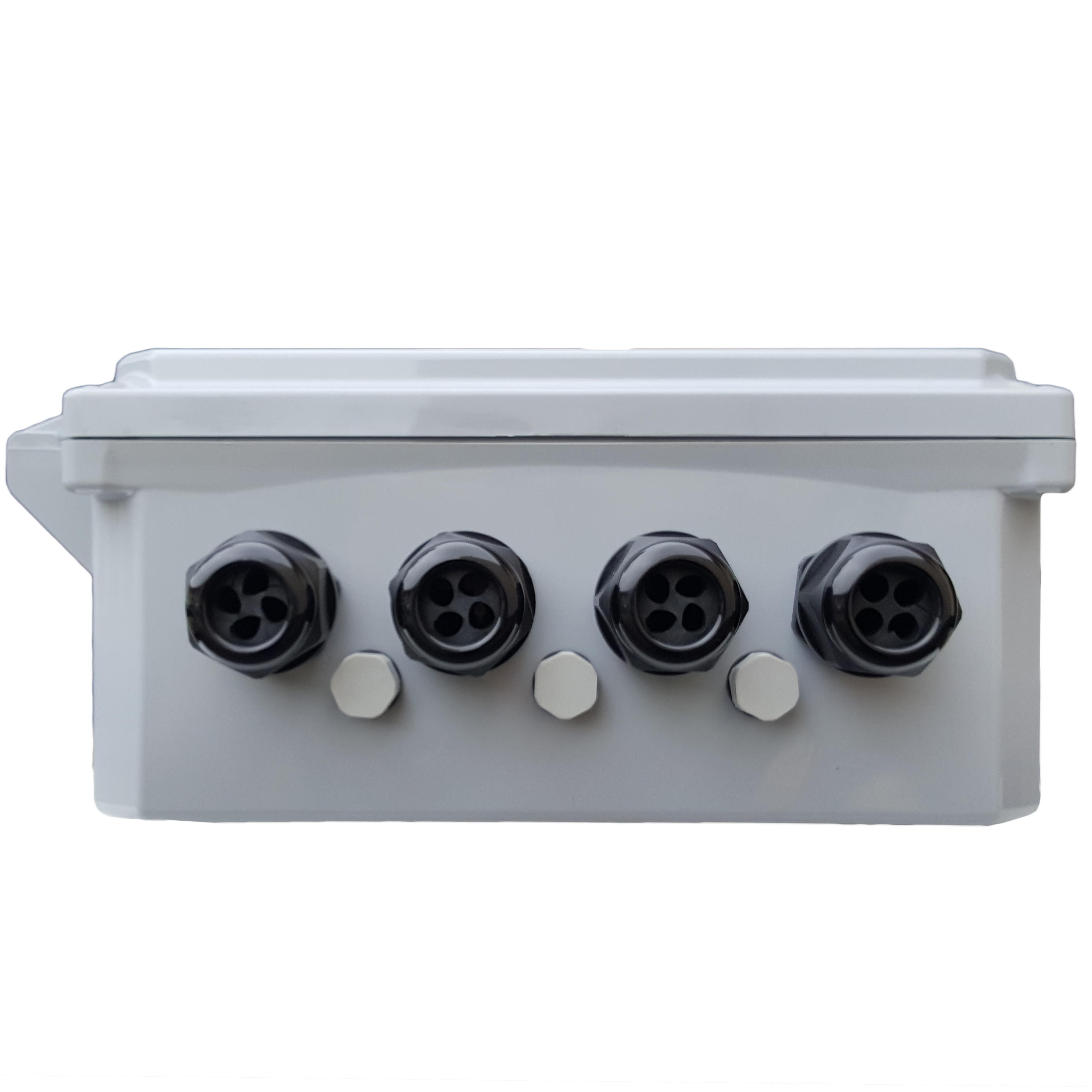

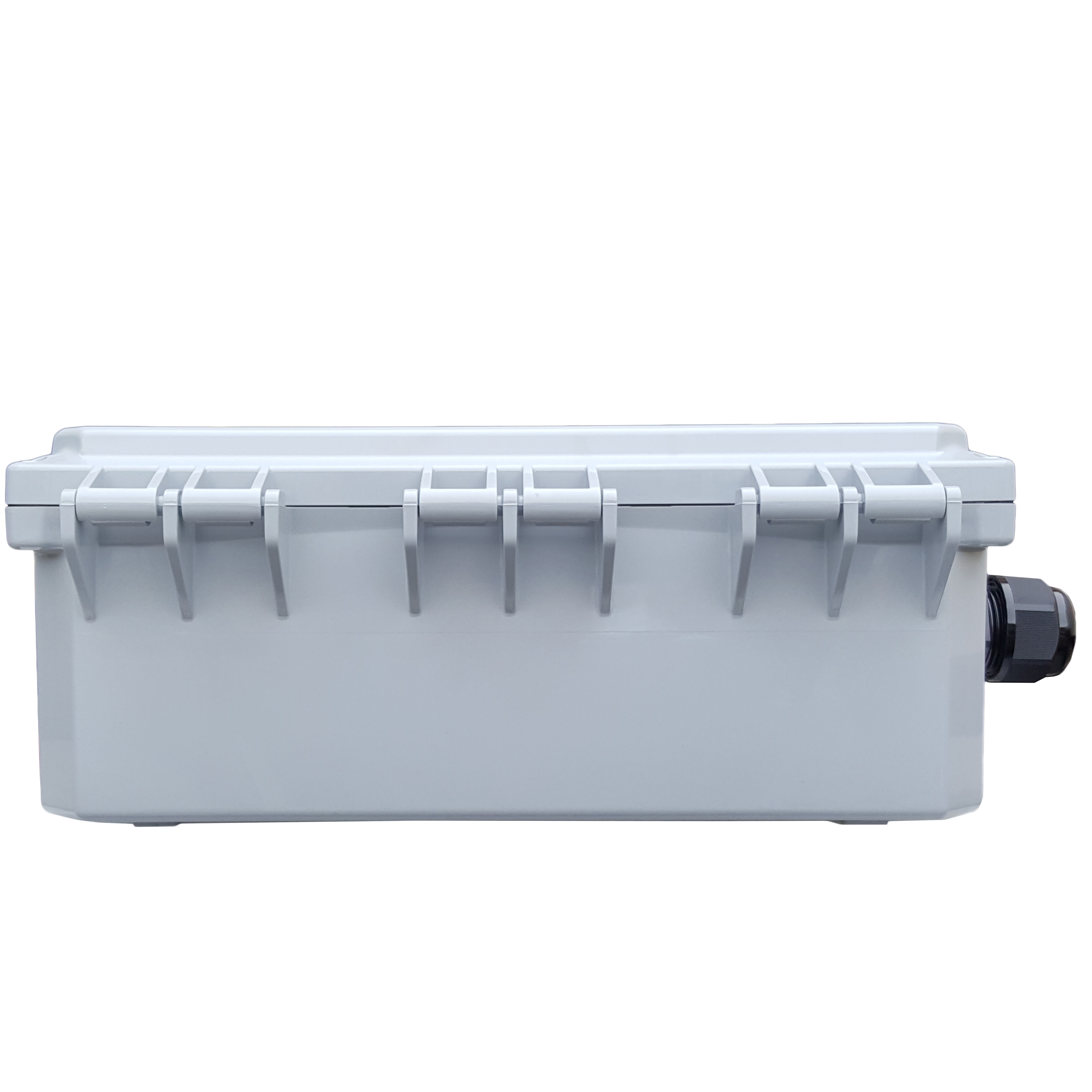

Housed in a rugged IP68-rated weatherproof enclosure, the LPS3802ATMP-T1 is engineered to withstand harsh outdoor conditions, including heavy rain, dust, and extreme temperatures from -30°C to +70°C. The enclosure's weather resistance varies based on closure method: IP66 with a hinged cover and IP68 when fully sealed with four screws. For uninterrupted operation, it features dual power input redundancy, supporting both 120V–240V AC and 48V DC power sources.
Equipped with advanced Layer 2+ network management features, including VLAN, Link Aggregation, Trunking, SNMP, and QoS, the LPS3802ATMP-T1 ensures efficient traffic control and network optimization. With 6KV surge protection on Ethernet ports, this switch safeguards against power surges and voltage spikes, making it a reliable and cost-effective solution for security surveillance, carrier WiFi, and industrial automation.
- Dual Power Input Redundancy with 120V~240AC and/or 48V DC
- Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x,IEEE 802.1D, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p, IEEE802.1x, IEEE 802.1W, SNMP, IGMP standards
- Eight 10/100/1000M self-sensing RJ45 port, support IEEE802.3bt Type 3 & Type 4 PoE power supply function
- Two gigabit SFP fiber ports are capable of high bandwidth and long distance transmission
- All ports support auto-flip (Auto MDI/MDIX)
- Each PoE port can provide power 60W and up to 95W
- Supply 95W PoE++ DC power for powered devices compatible with IEEE802.3bt
- Port security, allows setting different security level on each port with password, 802.1x, IP&MAC address Guard, RADIUS, & TACACS+
- Support IEEE802.3x full duplex flow control and duplex back pressure flow control
- 8K MAC address table, 12Gbps backplane bandwidth
- Its 6KV network port surge protection can adapt to harsh outdoor environment
- Working temperature from -30 ̊C ~ +70 ̊C at full load
- Compatible with Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocols, & Dynamic VLAN MAC Address Authentication
- Support authentication features including TACACS+, IEEE 802.1x, HTTPS and SSH, and MAC address port locking
- Support SNMP V1/V2c/V3 for different levels network management
- Adopt RMON to effectively improve network surveillance and forecasting capabilities Auto accident report through E-mail and the output of electric relay
Download LPS3802ATMP-T1 Datasheet
PFCK0001-3 Power & Fiber Connector Kit
ECK0001-4 Ethernet Connector Kit
WMK0001 Wall Mounting Kit
APCK0001 AC Power Cable Kit
DPCK0001 DC Power Cable Kit
(Not Included with Purchase)
