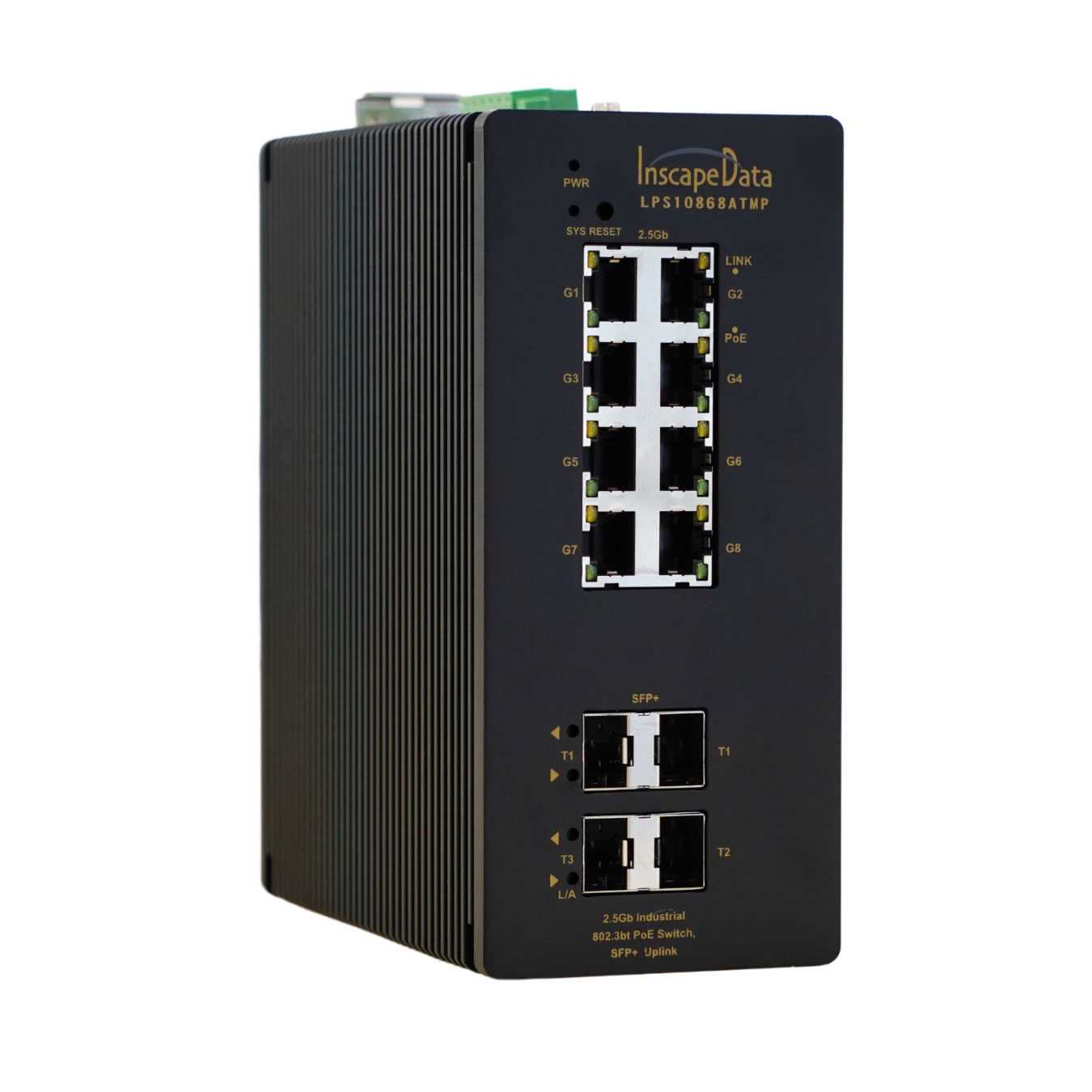

LPS10868ATMP Industrial PoE Switch


The LPS10868ATMP Industrial PoE Switch is a 2.5G L2+ Din-Rail managed industrial PoE switch with 120Gbps forwarding bandwidth for carrier Ethernet Access and Edge applications, and it offers 8 10/100/1000/2500 Base-T RJ45 ports and 4 1/10G SFP+ fiber ports. Port one to eight support IEEE802.3af/at/bt PoE standards. Single-port POE power up to 90W. It can supply power to POE terminal equipment such as wireless AP, web cameras, VoIP phones, and industrial sensors through network cables and meet the network environment that needs a high-power PoE power supply. As a PoE power supply device, it can automatically detect and recog- nize the type of power-receiving equipment that meets the IEEE 802 PoE standard and supply power through the network cable. The LPS10868ATMP Industrial PoE Switch has L2+ full network management function, supports IPV4/IPV6 management, static route forwarding, complete security protection mechanism, complete ACL/QoS policy, and 4K-entry VLAN functions, and is easy to manage and maintain. The switch has a 4K-en- try VLAN table and provides VLAN classification according to port-based, protocol-and-port- based, MAC-based, and Flow-based capability. It also supports IVL (Independent VLAN Learning), SVL (Shared VLAN Learning), and IVL/SVL (both Independent and Shared VLAN Learning) for flexible network topology architecture. In network access applications, it provides IEEE802.1ad (Q-in-Q) for double tag insertion and removal functions. In addition, the VLAN translation function also supports Metro Ethernet applications and multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. Communication can be quickly restored when a one-way network fails to ensure important uninterrupted communication for applications. According to the actual application needs, PoE power management, port management, routing address management, port flow control, VLAN division, IGMP, security policy, and other application services are configured through network management methods such as Web, CLI, SNMP, Telnet, etc.


2.5G network access, 10G optical port uplink

  • Support non-blocking 240Gb switching capacity and 120G wire-speed forwarding.
  • Support full-duplex based on IEEE802.3x and half-duplex based on Back-pressure.
  • Support eight 2.5G Ethernet port and four 10G SFP+ port combination, enabling users to build carrier networking to meet the needs of wire-speed performance.

Intelligent PoE Power Supply

  • IEEE802.3af/at/bt PoE standards without damaging non-PoE devices.
  • PoE network management, realizing PoE port on/off, priority setting, port power status viewing, time scheduling, etc.
  • The priority system for the PoE port will first supply power to the high-priority level port when the power budget is insufficient and avoid overwork of the device.
  • 8 10/100/1000/2500 Base-T RJ45 support PoE power, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

Powerful Secure Network Capability

  • Static and dynamic aggregation.
  • IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration, and IEEE802.1ad (Q-in-Q) for double tag insertion and removal function.
  • The QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.
  • ALC filters data packets by configuring matching rules, processing operations & time permission, and providing flexible and safe access control.
  • IGMP Snooping V1/V2/V3 multicast protocol meets the requirements for multi-terminal high-definition video surveillance and video conference access.

Network Security

  • Port isolation, storm control.
  • IP+MAC+port+VLAN quadruple flexible combination binding function.
  • An independent 4K-entry Multicast table is used to support Multicast functions, such as IGMP snooping.
  • 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.

Reliable & Stable

  • CCC, CE, FCC, and RoHS.
  • Low power consumption, aluminum casing with fin heat sink. No fan.
  • The user-friendly panel can show the device status through the PWR, SYS, Link,L/A, PoE LED indicators.

Design Control for Easy Operation

  • HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.
  • RMON, system log, and port traffic statistics are convenient for network optimization and transformation.
  • LLDP is convenient for the network management system to query and judge the communication status of the link.
  • Various management and maintenance methods include Web network management, CLI command line (Console, Telnet), SNMP (V1/V2C/V3), and Telnet.

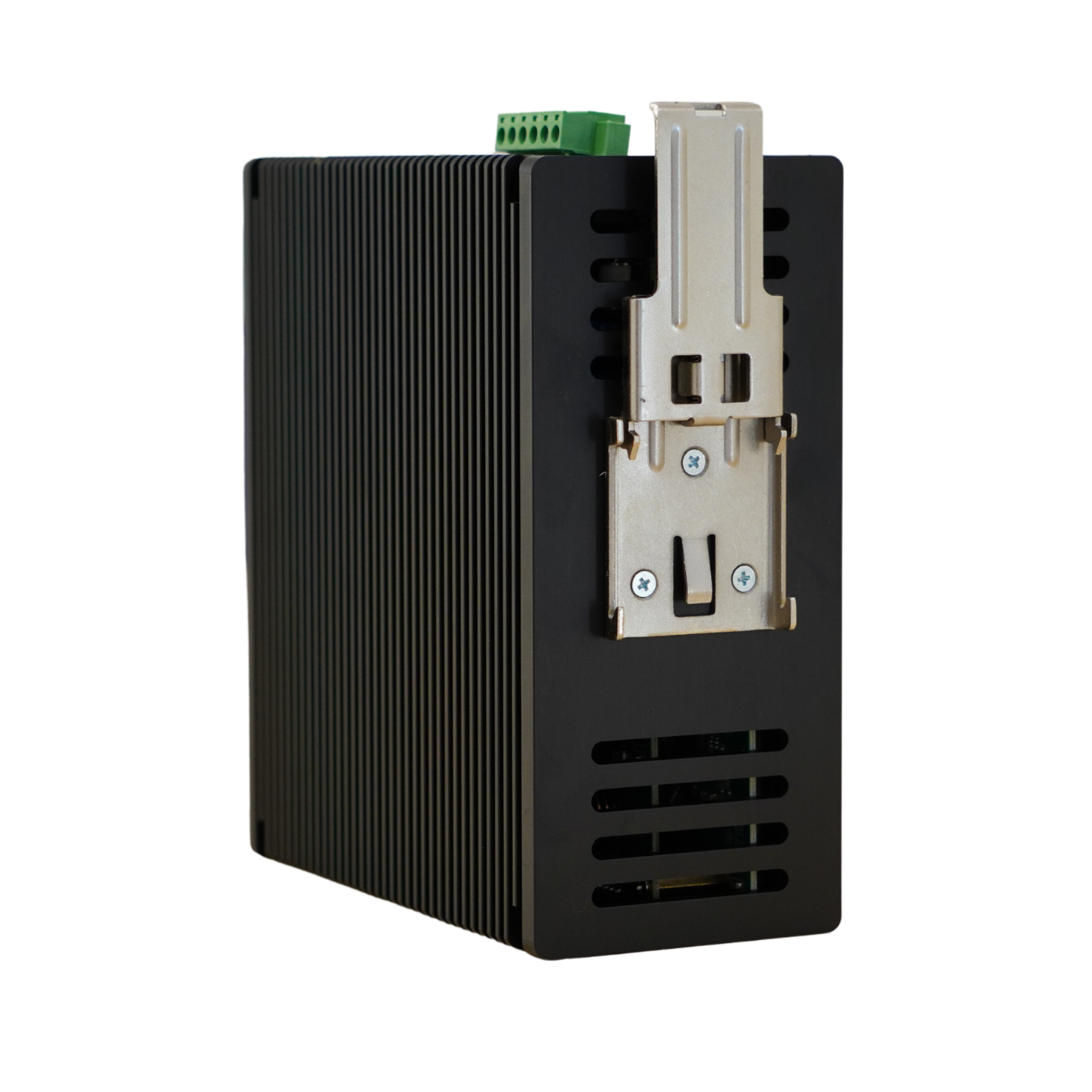

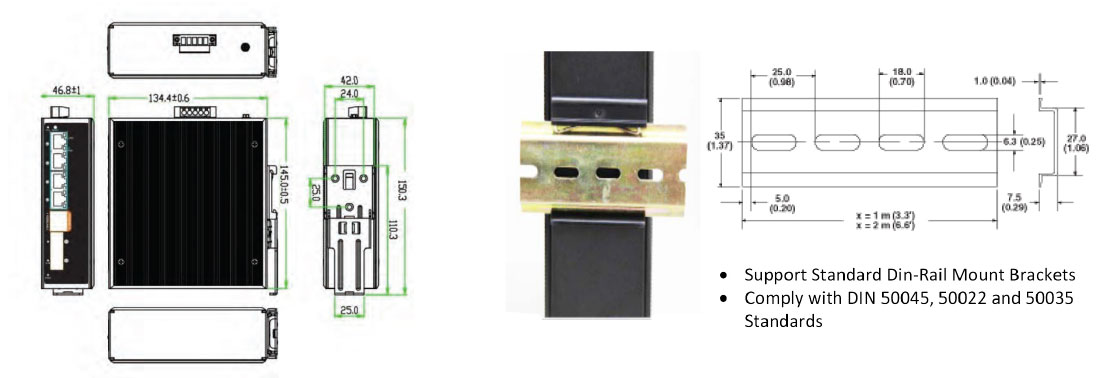

Din Rail Mount
