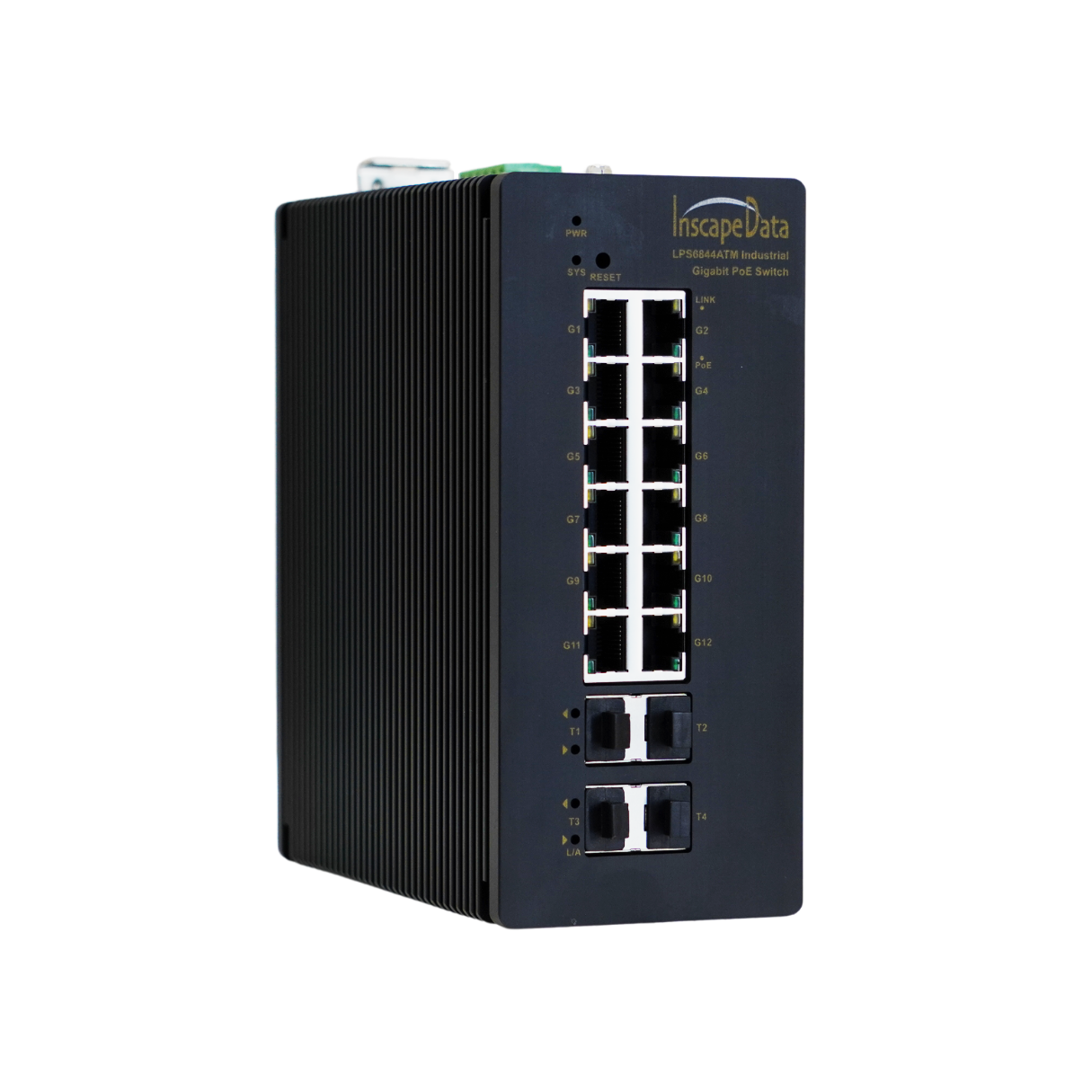

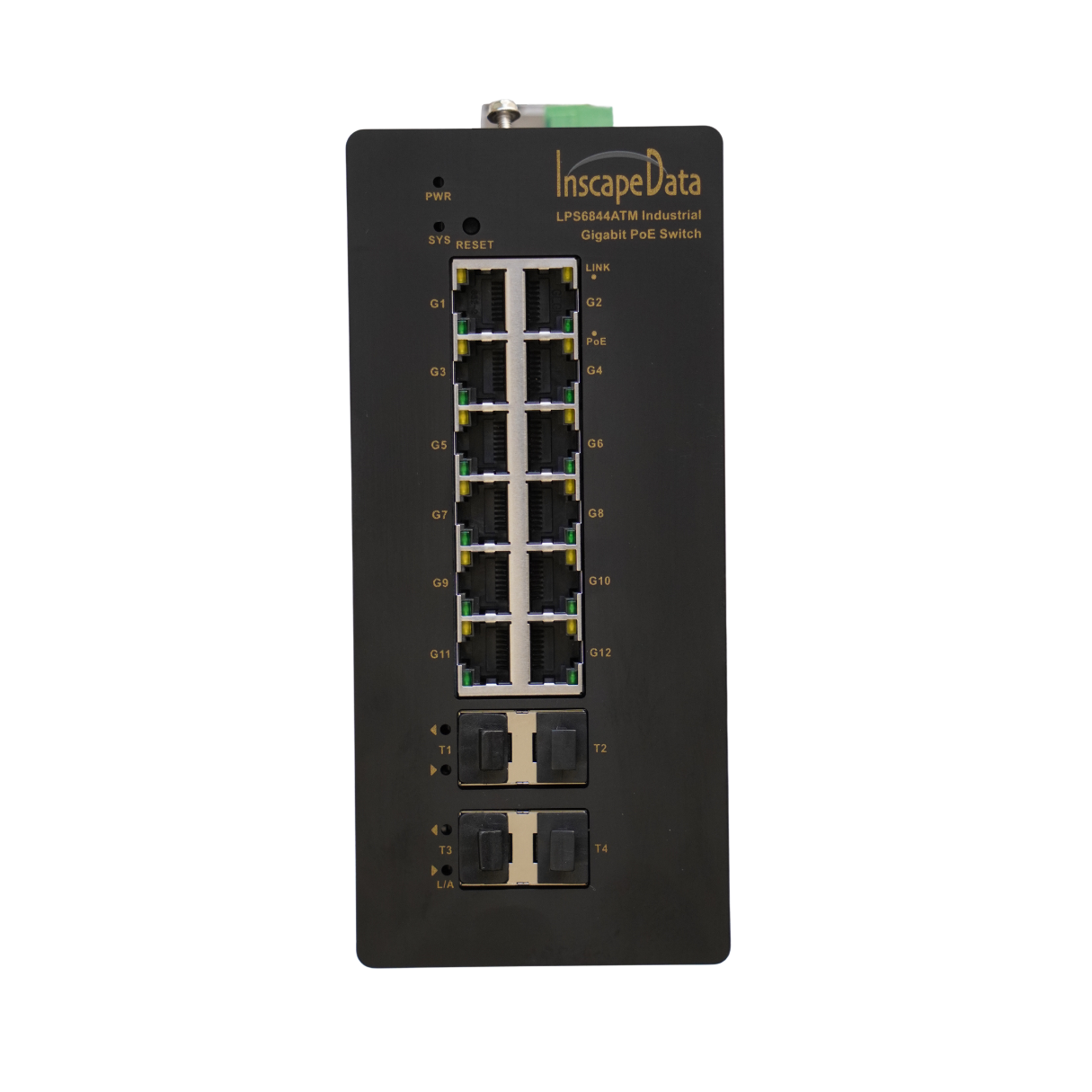

LPS6844ATM Industrial PoE Switch

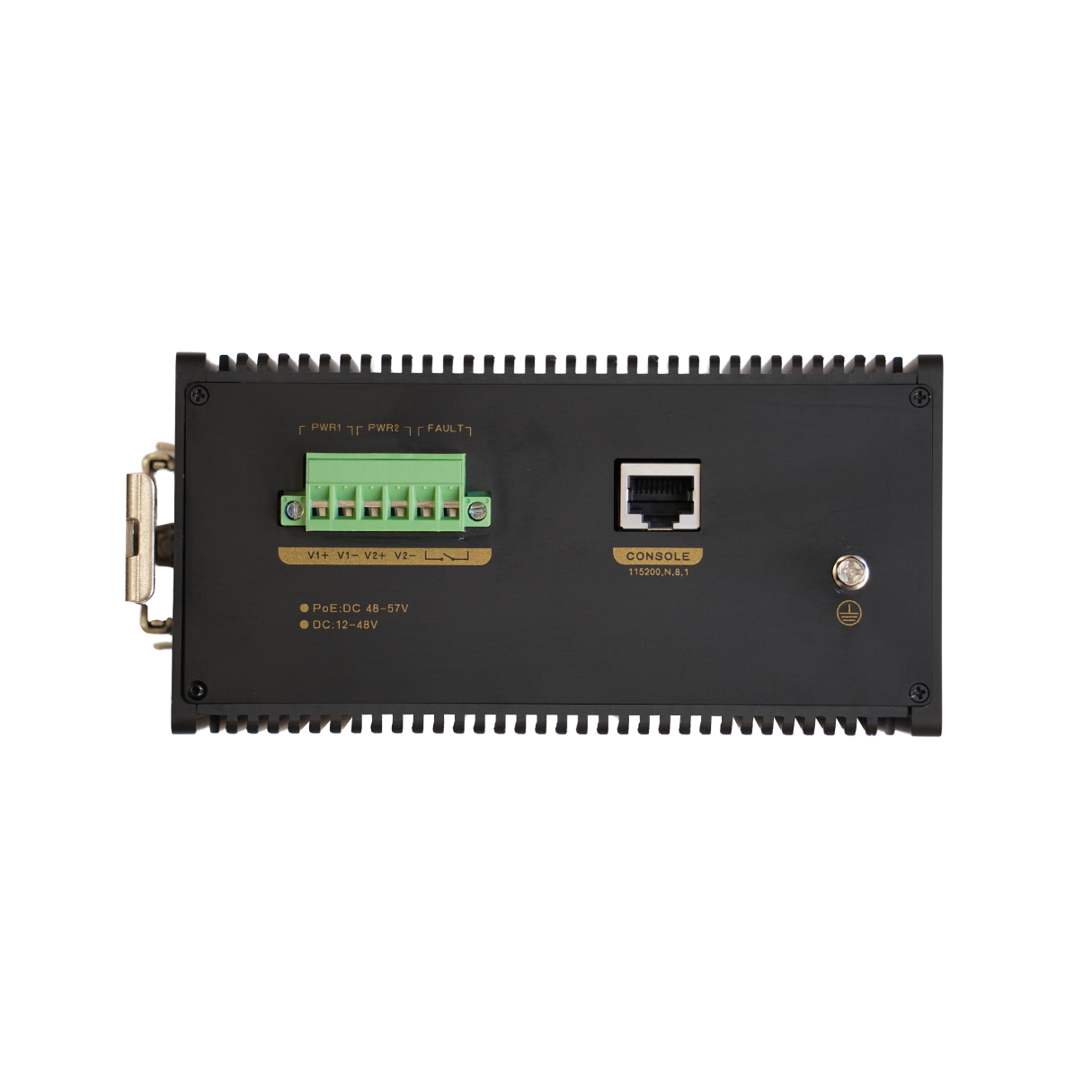

The LinkPower LPS6844ATM Din-Rail Industrial PoE (Power over Ethernet) Managed Layer 2+ Switch offers 8-Port Gigabit PoE with 8 Port Gigabit PoE with 4 Gigabit RJ45 and 4 10 Gigabit SFP+ Uplink Port Network Switch with dual power input redundancy with 48-57V DC and up to 30W Type 4 per PoE port.


  • L2+ features provide better manageability, security, QoS, and performance.
  • 12*10/100/1000M Base-TX RJ45 Ports + 4*10Gb SFP+ Ports. All ports support line-speed forwarding mode,368GB Switching Capacity.
  • Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs, etc.
  • Port security, allows setting different security level on each port with password, 802.1x, IP&MAC address Guard, RADIUS, & TACACS+.
  • Support spanning tree STP, RSTP and MSTP.
  • Jumbo frames support up to 9.6K kilobytes.
  • Support enhanced management through WEB, CLI, TELNET, SNMP.
  • Support cable diagnosis.
  • 1-8 port support PoE. Compliant with both IEEE 802.3af/at. Allow PoE configuration for each PoE port.

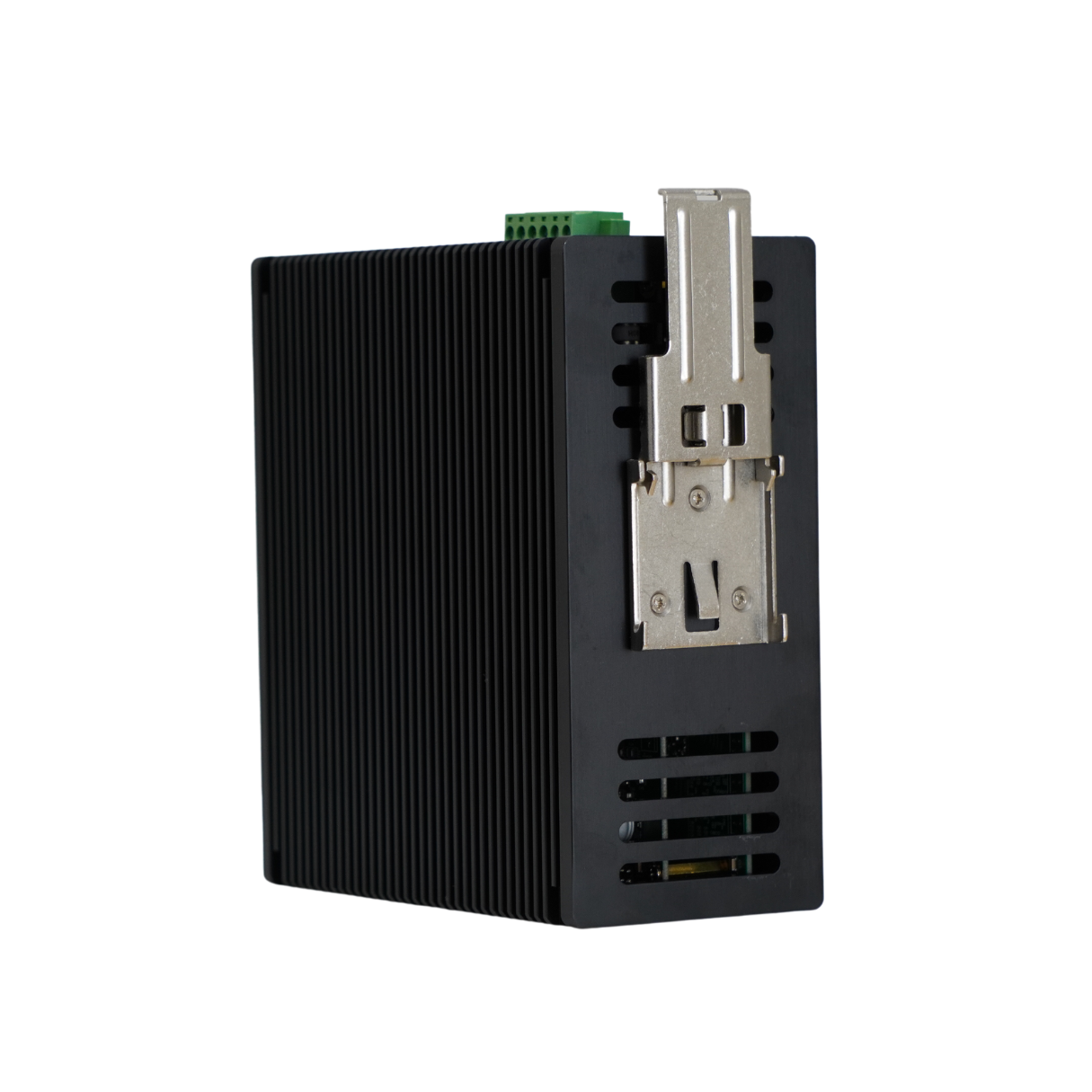

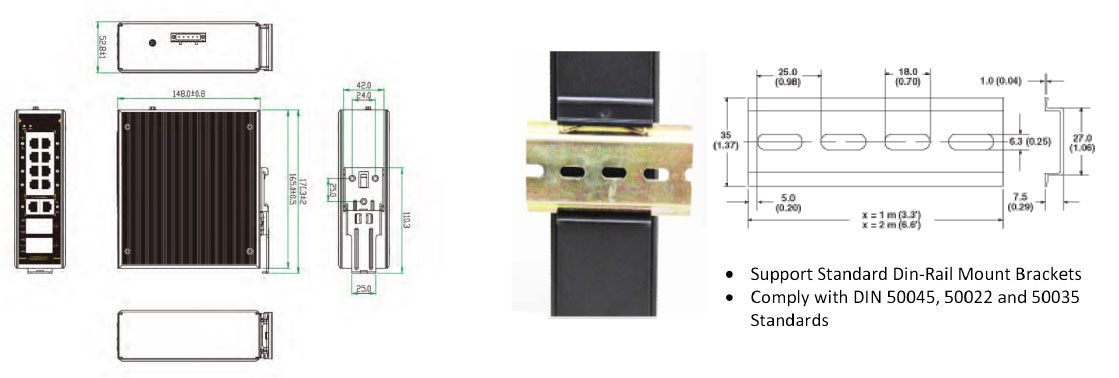

Din Rail Mount
