Inscape Data offers a broad range of Power over Ethernet Surge Suppressor and Injector products that are purposely built to protect Ethernet enabled electronics and equipment from lightning and harmful transient voltage.  The products are designed with low impedance and insertion loss to minimize data packet loss and information integrity while traveling across the lines.  Polymer data line protection allow data transmission up to 100 Mbps.  The Power over Ethernet Surge Suppressor and Injector are offered in two product models:

  • PIS100 1-Port PoE DC Injector with Surge Suppressor
  • PIS200 2-Port PoE DC Injector with Surge Suppressor
  • PIS1000 Gigabit IEEE802.3af PoE Injector


Key Features



Key Benefits

  • All 8 PoE Pins Protected
  • Data Clamp Voltage 7.5VDC
  • Power Clamp Voltage 60 VDC
  • Fast Response Time < 5 nS
  • Max Shunt Capacitance < 25 pF
  • > 132A Peak Pulse Current
  • Support Data Rates up to 100mbps

  • Protect equipments and investment
  • Increase the life time of equipments
  • Lower the probability of service call or operation failure

PIS1000 Key Features

  • 2x 10/100/1000Mbps RJ45 ports
  • Support network port, lightning-proof power input port (the secondary lightning protection)
  • PoE power supply method:  4/5(+) 7/8(-)
  • Support LTPoE++ standard, and compatible with IEEE802.3af standard
  • Single PoE port output power is 15.4W, the voltage is 24V
  • No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall







System Configurations



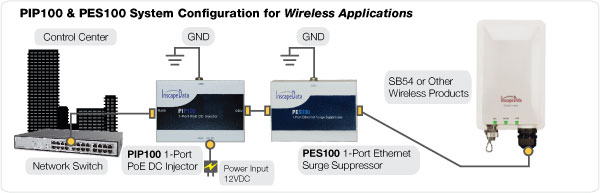

diagram3







Technical Specifications

Model Name

PIS100

1-Port PoE DC Injector

with Surge Suppressor

PIS200

2-Port PoE DC Injector

with Surge Suppressor

Product Dimensions

(WxHxD): 70x48x24mm

PIS200 PIS200

No. of Power Injector Ports

1

2

Total No. of Ports

2

2

Surge Protection

Yes

Yes

Data Line Tx/RX Crossover

Yes

Yes

Max Operating Voltage

48VDC

48VDC

Data Clamp Voltage

7.5VDC

7.5VDC

Power Clamp Voltage

60VDC

60VDC

Data Transfer Rate

100mbps

100mbps

Protection Mode

Line-Line and Line-GND

Line-Line and Line-GND

Response Time

< 5 ns

< 5 ns

Max Shunt Capacitance

< 25 pF

< 25 pF

PoE Pins Protected

All 8

All 8

Peak Pulse Current (10/1000uS)

Pins: 1,2,3,6 = 132A

Pins: 4,5,7,8 = 100A

Pins: 1,2,3,6 = 132A

Pins: 4,5,7,8 = 100A

RJ45 Port

Metal Sheilded

Metal Sheilded

Temperature

-40oC to +85oC

-40oC to +85oC

Humidity

0 ~ 90% RH

0 ~ 90% RH

Ground Wire

16 AWG, 10" Long

16 AWG, 10" Long

Ground Screw

Yes

Yes

Power Fuse

1.5A

1.5A

Warranty

2 Years

2 Years
