Outdoor 51.2V DC UPS battery backup system for critical PoE, security, wireless, and remote network deployments. Designed for harsh outdoor environments, the UPS1048V2 Pro LFP12 provides stable 51.2V DC backup power inside a rugged IP68-rated enclosure.
260W Power Output
1.5A Fast Battery Charging
IP66 / IP68 Weatherproof
12Ah LFP Battery Pack
The LinkPower™ UPS1048V2 Pro LFP12 is an outdoor 48V DC UPS system designed to keep critical PoE and network infrastructure powered during AC power interruptions. Built inside a rugged weatherproof enclosure, the system combines AC input, battery backup, charging, and regulated DC output in one contractor-grade outdoor solution.
It is ideal for security cameras, wireless bridges, access control, smart city equipment, remote network nodes, and outdoor PoE switch deployments where reliable backup power is required.

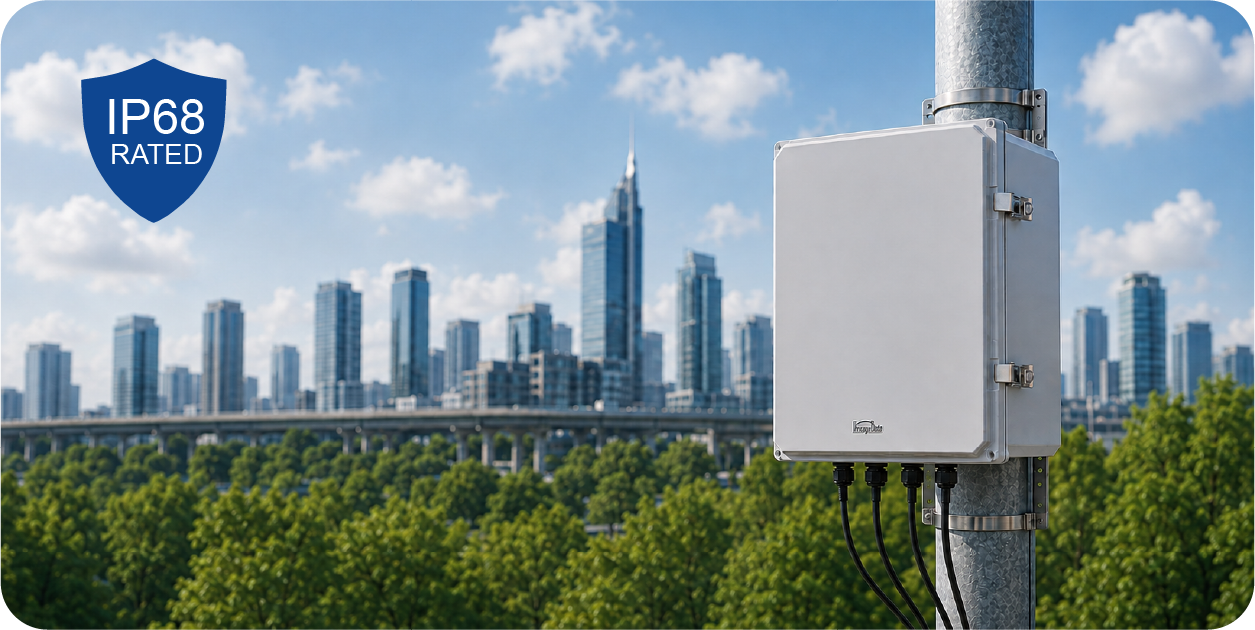

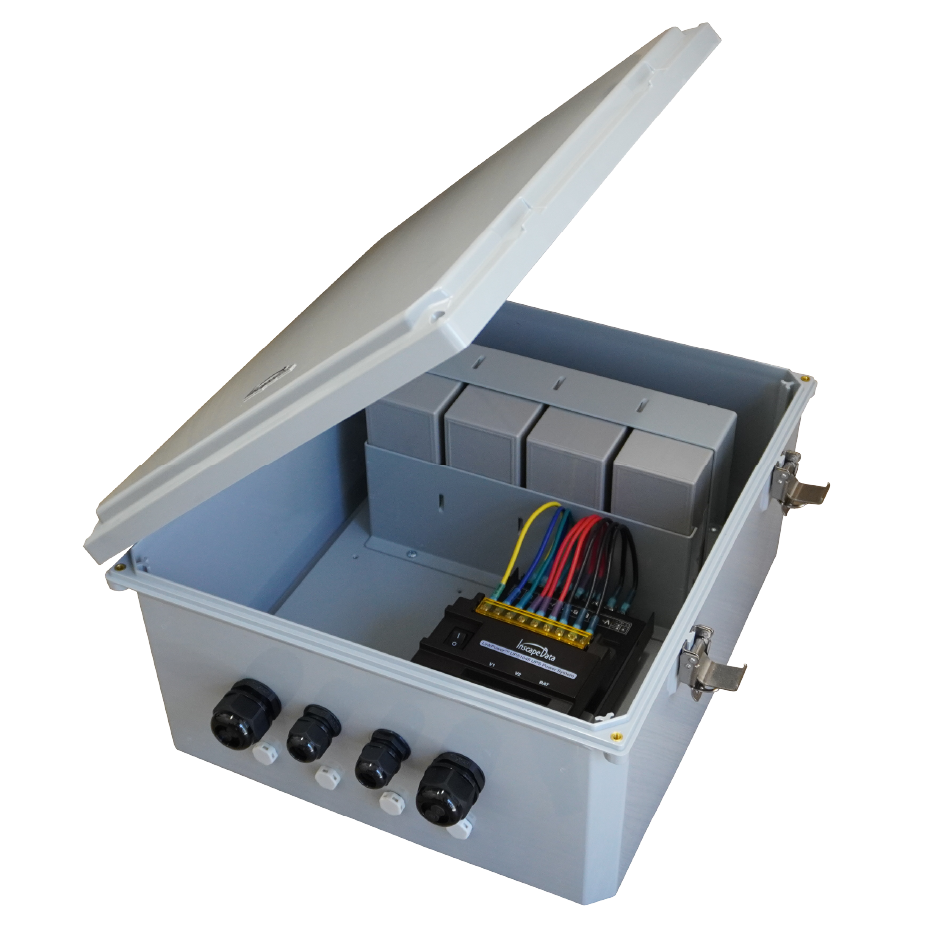

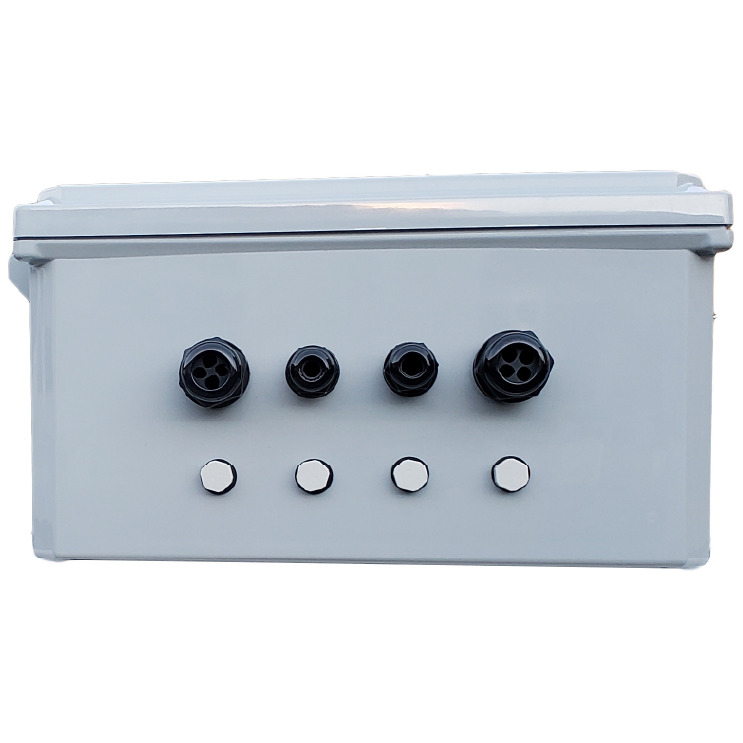

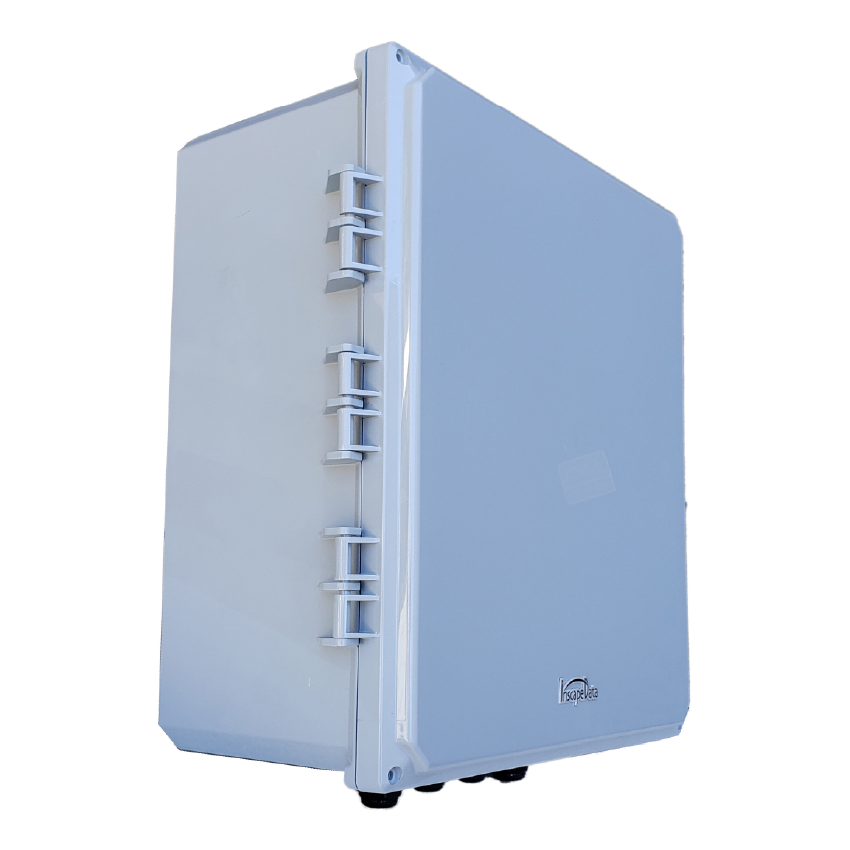

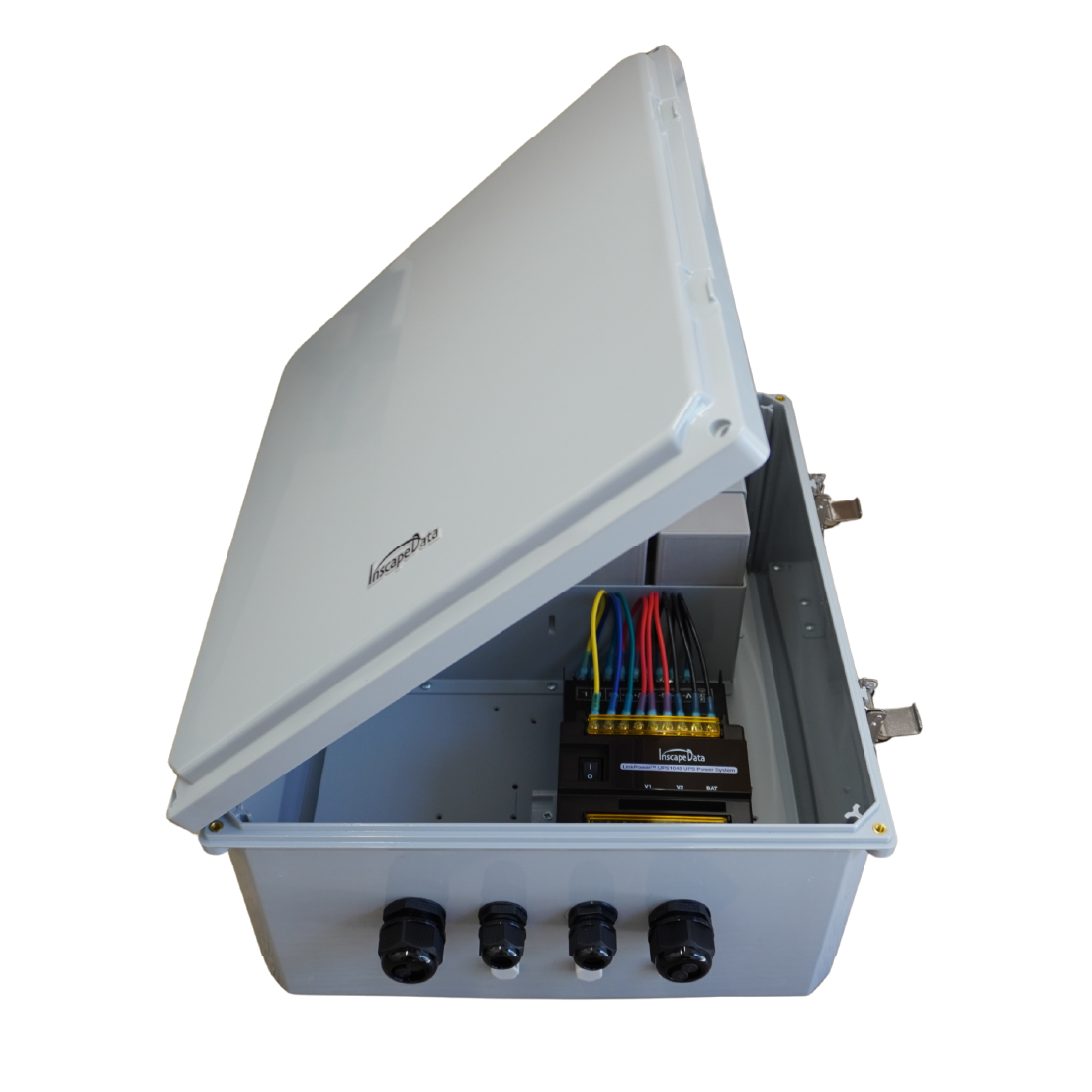

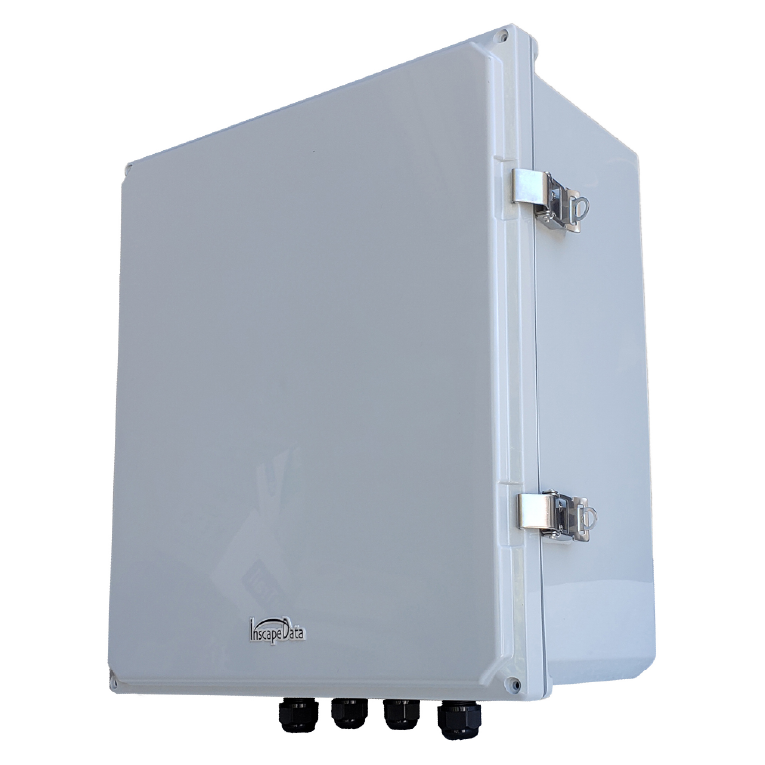

The UPS1048V2 Pro LFP12 is housed in a durable outdoor-rated enclosure designed to protect the internal components from rain, dust, and harsh installation conditions.
Weatherproof outdoor battery backup without requiring a separate indoor UPS, external battery cabinet, or additional weatherproofing.
When AC power is available, the system powers the connected load while charging the batteries. During an outage, the UPS automatically transfers to battery backup to keep connected equipment powered.
Simplifies outdoor deployments by combining power conversion, battery backup, and enclosure protection in one integrated system.
| Output Voltage | 48V DC |
| Output Power | Up to 260W |
| AC Input | 100-240V AC |
| Battery Type | LFP |
| Battery Capacity | 12Ah |
| Charging Current | 1.5A |
| Warranty | 3-year warranty; battery warranty per manufacturer |
The integrated UPS management system that allows users to monitor power status, battery voltage, battery current, temperature, alerts, and system events through a network interface.
This option is ideal for deployments where service teams need remote visibility into UPS health, battery condition, and system status without visiting the site.
Real-time monitoring
Alert notifications
Battery & system health
Network connectivity
| Model | Battery Type | Output Power | Battery Capacity | Nominal Stored Energy |
|---|---|---|---|---|
| UPS1048V2 AGM7 | AGM | 260W | 7Ah | 336Wh |
| UPS1048V2 Pro AGM12 | AGM | 260W | 12Ah | 576Wh |
| UPS1048V2 Pro LFP12 | LFP | 260W | 12Ah | 576Wh |
| UPS1048V2 Pro LFP30 | LFP | 260W | 30Ah | 1,440Wh |
Contact our sales team to match the correct UPS system, battery
configurations and management option to your project requirements.
