LPS9000RMG Outdoor Rack Mount PoE Switch System


The LinkPowerTM LPS9000RMG is designed with Inscape Data's All-in-One Box outdoor enclosure patent. The LPS9000RMG Outdoor Rack Mount PoE Switch System is integrated with a duplex AC Power Receptacle power supply, offering support for LinkPower Passive PoE Switch Series. The LPS9000RMG is ideal for Smart City Wifi, IP Video Security, and high bandwidth video transmission.

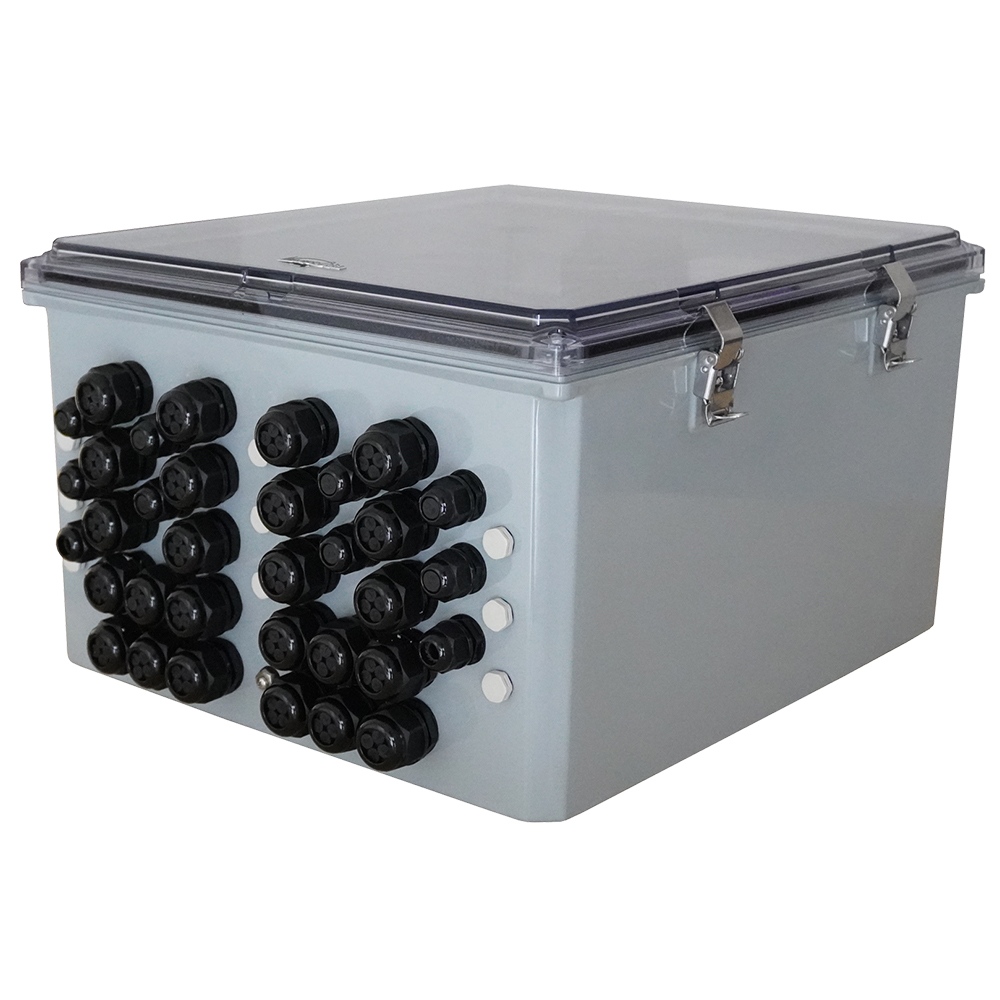

  • Impact-resistant polycarbonate Enclosure IP68 with Hinged cover with stainless steel hardware and four cover screws
  • Stainless steel latch with area for padlock
  • 24 RJ45 Ports, 4 RJ45/SFP Ports, 2 AC Ports and 6 Vents, Cable Gland IP68 Waterproof Connectors
  • Use GFI compliant AC receptacle
  • Support for switch width up to 15 inches

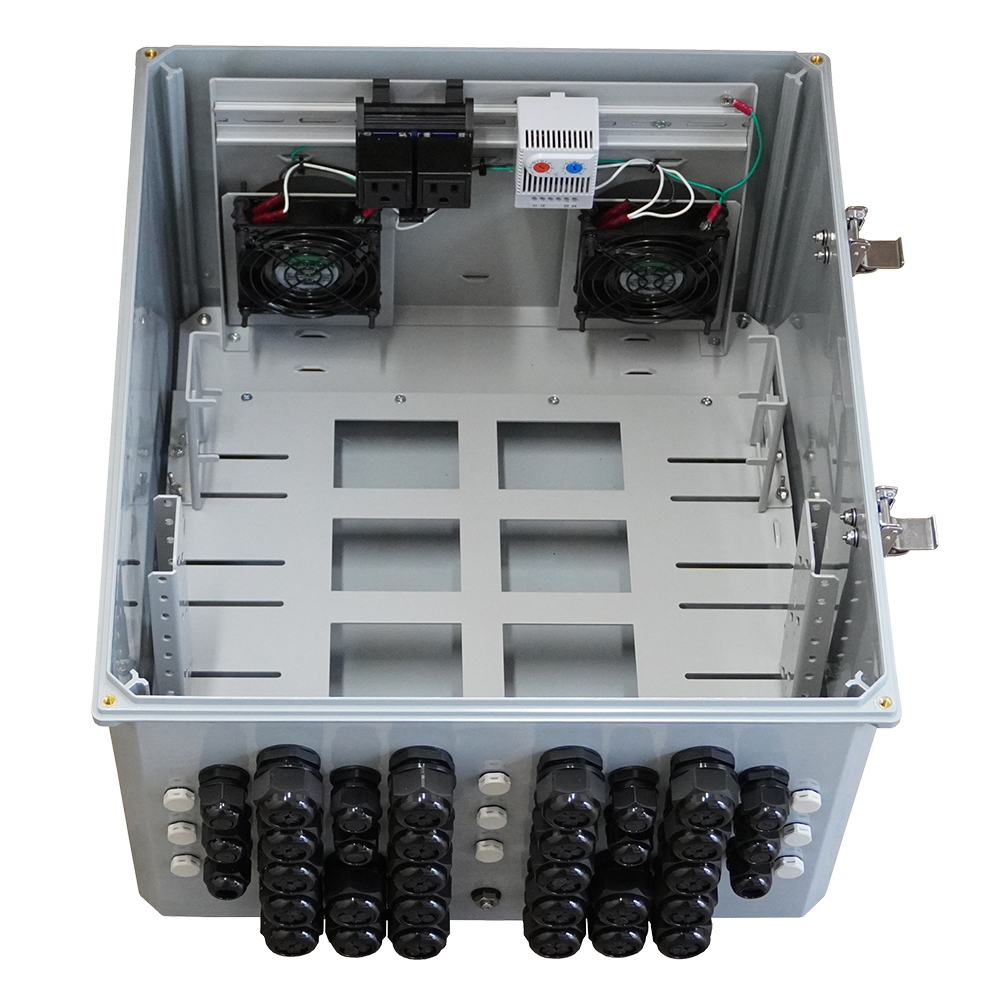

  • Custom-design inside frame for better space management and potential water immersion prevention
  • Internal cable storage and management for easy access and safety
  • Easy access the switch and the AC receptacle
  • Ventilation for the enclosure to reduce the internal moisture

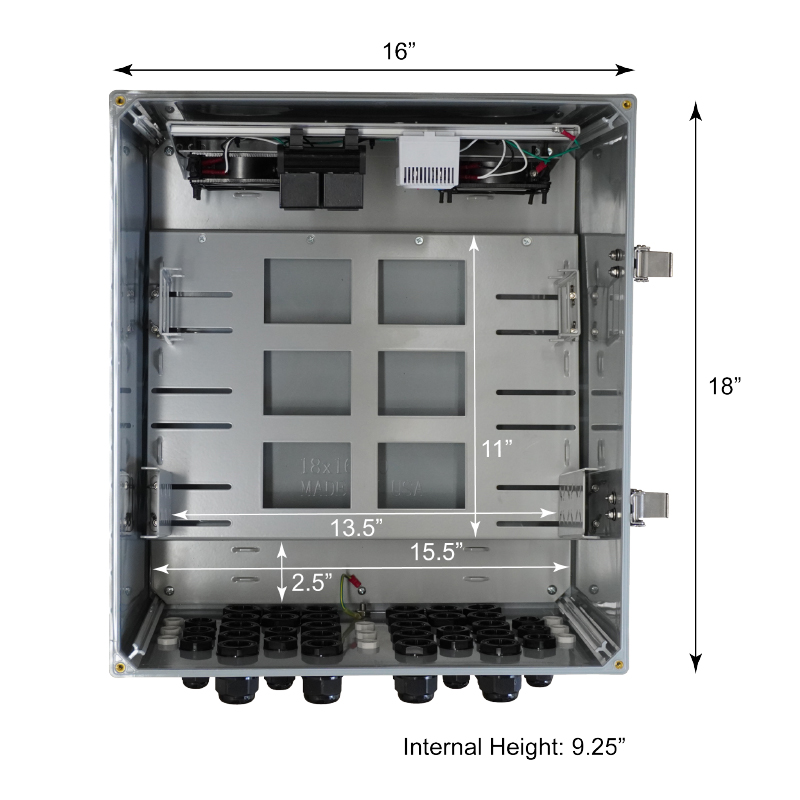

  • Enclosure dimensions, 18x16x10 Inch
  • Certification includes UL94 V-0, UL746C 5VA
