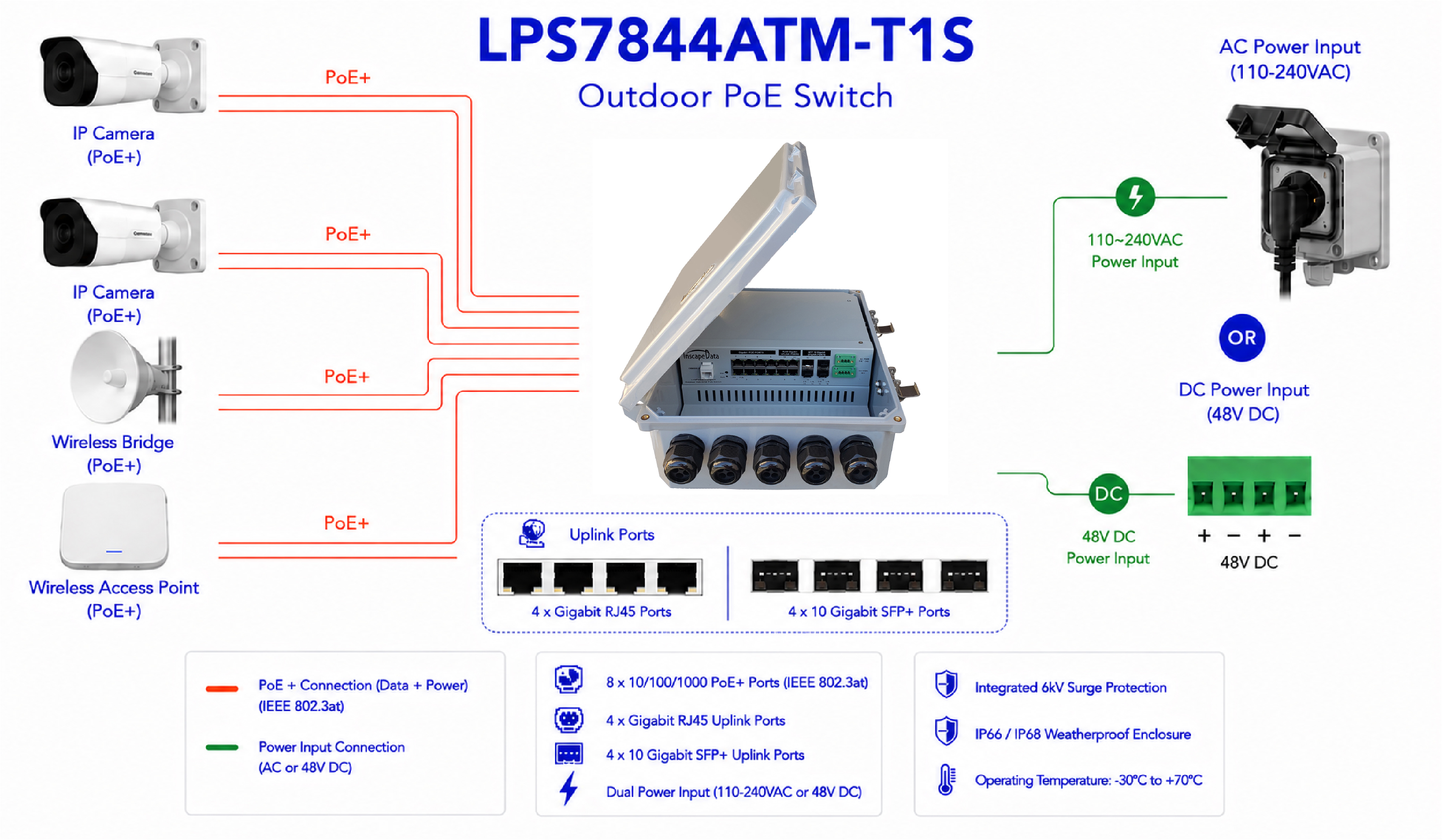

The LinkPower™ LPS7844ATM-T1  Outdoor L3 Managed 16-Port PoE (Power over Ethernet) Network Switch offers 8 PoE Ports, 4 Gigabit RJ45 and 4 10 Gigabit SFP Uplink Ports with dual power input redundancy, i.e.,120V~240AC and/or 48~52V DC.  This is the industry first 10 Gigabit outdoor weatherproof industrial Gigabit Ethernet switch that delivers data and power over one single network cable protected with an IP68 compliant weatherproof enclosure.  The following are the product highlights


High-performance hardware and software systems

The 10G L3 Industrial PoE Switch uses top-rated 10G network  switching chip, multiple layers PCB design,  as well as the in-house switch software. With combination of powerful hardware and software, it offers the product quality from forwarding stability, packet processing speed, and other great Layer 3 network features.


Support the fast ring network protocol, free configuration

The switch supports stable and reliable fast Ring Protection Protocol (RSTP) / MSTP. It features real ring loop redundancy protection. Besides, there is no need to configure 10G port when users using this switch to reduce probability of network failure.


Stringent network security

Supports dynamic or static binding by users’ definition, such as IP, MAC, VLAN, PORT, etc. Support port isolation, to prevent communication between two neighbor network equipment within the same broadcast domain, for reducing network risk; Supports perfect storm control function which can suppress broadcast, multi-cast, and uni-cast storm; Support specific ARP inspection which can effectively prevent ‘‘ARP spoofing attack’’ created by hackers or attackers via ARP packets.


Convenient management and maintenance

By easy WEB interface (http and https protocol supported), the user can conveniently operate and configure all kinds of function in this switch. Support management by CLI, Telnet, Console port.


Key Features Datasheet Downloads
  • 12*10/100/1000M Base-TX RJ45 Ports + 4*10Gb SFP+ Ports. All ports support line-speed forwarding mode, 368GB Switching Capacity
  • Support L3 Switching features, including Static route, Default route, ARP, VLAN, TRUNK, Mirroring, Port isolation/flow control/speed limit, Storm control, QOS, ACLs etc.Port security, allows setting different security level on each port with password, 802.1x, IP&MAC address Guard, RADIUS, & TACACS+
  • 1-8 port support PoE. Compliant with both IEEE 802.3af/at. Allow PoE configuration for each PoE port
  • Support spanning tree STP, RSTP and MSTP.
  • Support enhanced management through WEB, CLI, TELNET, SNMP
  • Operating Temperature: -22ºF to +158ºF (-30ºC to +70ºC)

LinkPower™ Outdoor LPS7844ATM-T1 Outdoor Managed L3 Gigabit PoE Switch Datasheet



dimension drawing

Internal View

internal view

Standard Accessories


4-Hole Cable Gland

Ethernet & SFP Connector Kit

Power and Fiber Connector Kit



Wall Mounting Kit


AC Power Cable Kit

AC Power Cable Kit


Optional Accessories


Mast Mounting Kit



APC1024 and APC1048 Active (802.3af/at) to Passive PoE Converter


MMK0001 MMK0001

SFP Module Accessories

SFP-Single-ModeLPS SM 7832i-SFP+ LC Single Mode SFP+ Transceiver with LC Connector

SFP-Single-ModeLPS MM 6630i-SFP+ LC Multimode SFP+ Transceiver with LC Connector
