PIS1030

PIS1030 30W IEEE802.3af/at
Gigabit PoE Injector

PIS1060

PIS1060 60W IEEE802.3bt
Gigabit PoE Injector

PIS1095

PIS1095 95W IEEE802.3bt
Gigabit PoE Injector

Inscape Data’s LinkPower PIS1030, 1060, and 1095 10/100/1000Mbps Hi-Power PoE Injectors are Power over Ethernet (PoE) mid-span devices and single port PoE injectors.  There are 2 RJ45 PoE ports, and one of which is the Ethernet In Port for the uplink upper switches or other upper network devices and another RJ45 port is PoE Out port used as the port for network data and power output. These single-port PoE injectors supply power with the spare line pair (4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method.  These single-port PoE injectors provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s ideal choice for providing PoE power to WIFI devices and high power infrared and high-speed pan/tile dome IP video cameras through Cat5 Ethernet cable.

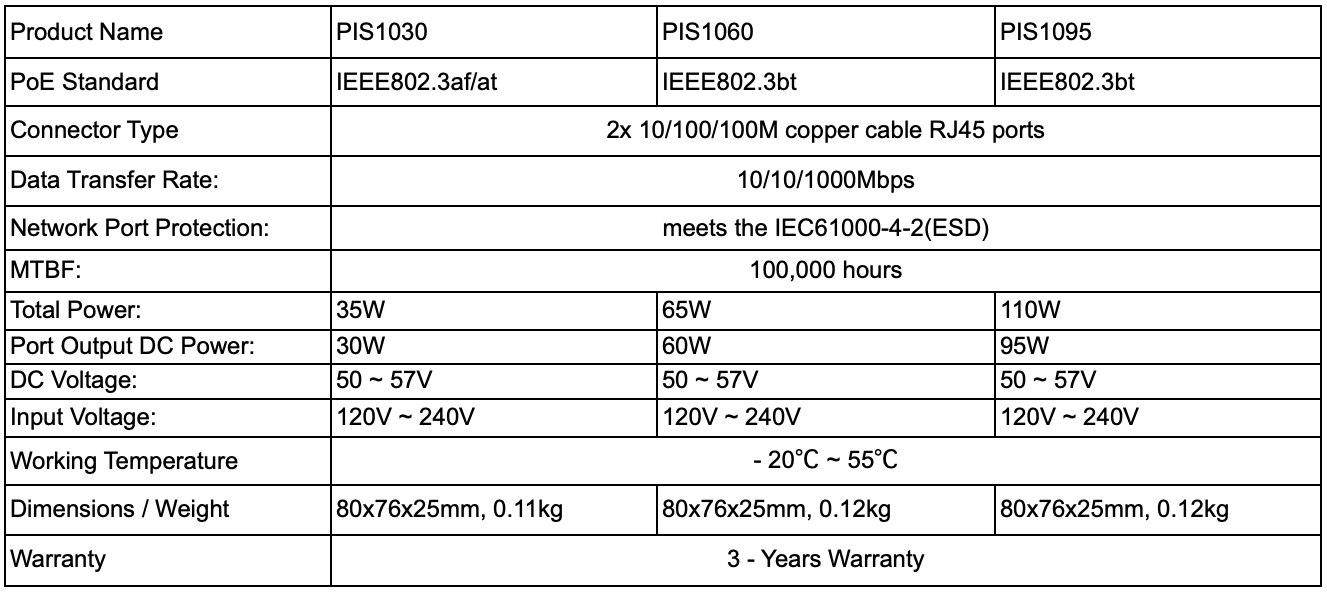

  • Key Features

    • Supply DC power to all 5 PoE classes network surveillance cameras
    • 2x 10/100/1000 Mbps RJ45 ports
    • Support network port, lightning-proof power input port (the secondary lightning protection)
    • PoE power supply type is four line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, and the negative power supply side is 3/6 or 7/8 line pair
    • For PIS1030, Support IEEE802.3af/ IEEE802.3at standards
    • For PIS1060 & PIS1095, Support LT PoE++ high power standard, compatible with IEEE802.3af/ IEEE802.3at standards
    • For PIS1030, each port output power is 30W, compliant with IEEE802.3af/at PoE+ standards
    • For PIS1060, each port output power is 60W, voltage is 50-57V, and the total power is 65W
    • For PIS1095, each port output power is 95W, voltage is 50-57V, and the total power is 110W
    • No fans, natural cooling, small and exquisite, no noise design, suitable for desktop or wall
