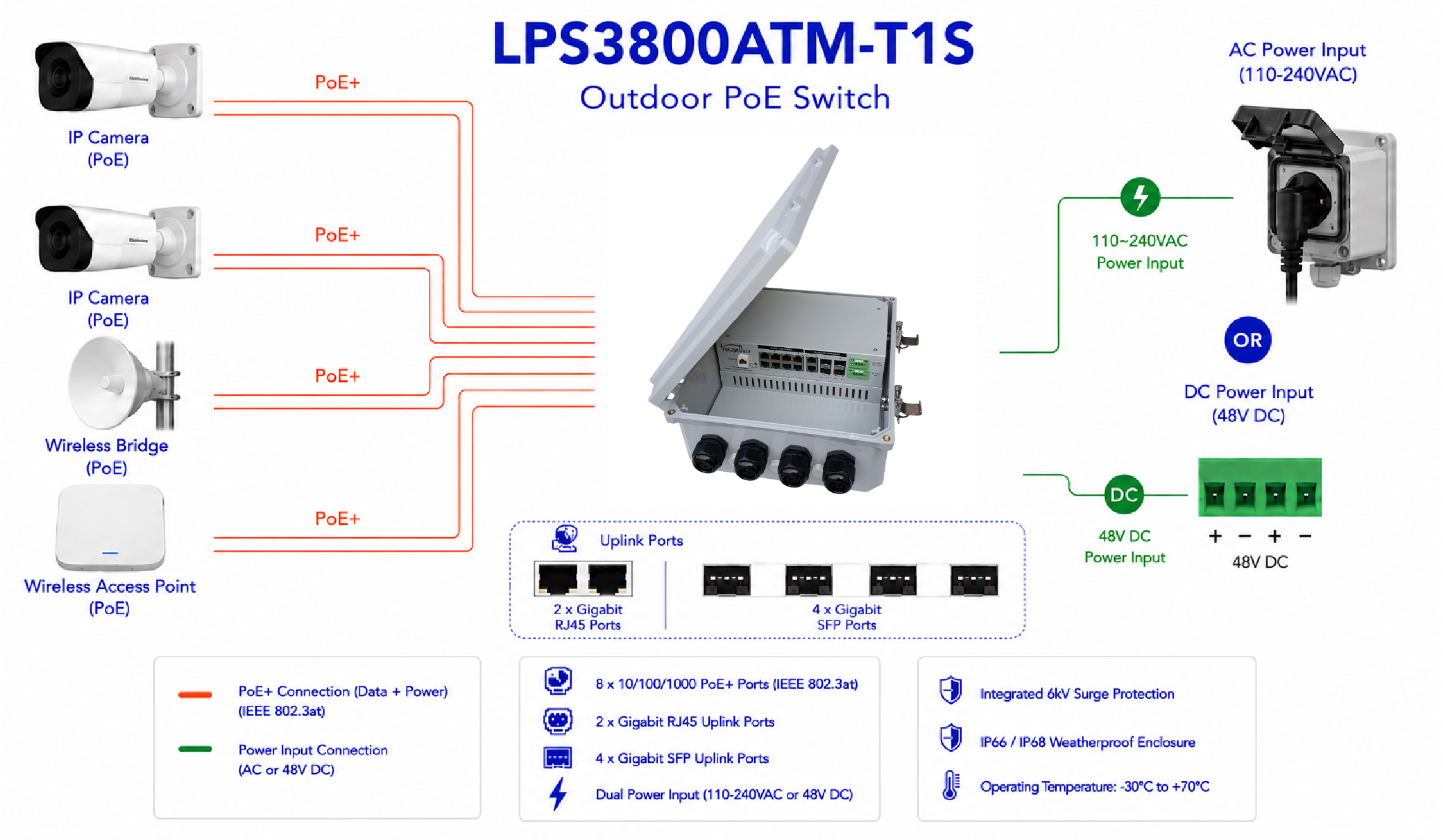

A 14-port L2+ managed outdoor Gigabit PoE switch with 8× PoE ports and 2× RJ45 & 4× SFP Gigabit uplink ports, protected inside an IP66/68 weatherproof enclosure for harsh outdoor deployments
8× 1G 802.3af/at PoE Ports
2× 1G RJ45 & 4× 1G SFP Uplinks
IP66 / IP68 Weatherproof
-22°F to +158°F Working Temp.
The LPS3800ATM-T1S is designed for integrators who need reliable outdoor PoE power and network connectivity without adding external power supplies, or extra weatherproofing. It combines switching, power delivery, surge protection, and enclosure protection in one contractor-grade system.
CORE ADVANTAGE
IP66 protection when latched closed and IP68 protection when the top cover is secured with screws, helping protect critical network equipment in harsh-weather environments.
INSTALLER BENEFIT
Supports outdoor camera, wireless, and remote network deployments while reducing installation complexity and minimizing external failure points
– Security Integrator
– Network Installation Partner
| Feature | LPS3800ATM-T1S | LPS840-T1P | LPS3802ATM-T1S |
|---|---|---|---|
| Series | Elite - T1S | Professional - T1P | Expert - T1E |
| Best For | High-performance outdoor networks | Small outdoor deployments | Mid-Size managed deployments |
| Input | 120~240V AC and/or 48V DC | 120~240V AC & 802.3bt | 120 ~ 240V AC and/or 48V DC |
| PoE Output | 802.3af/at | 802.3af/at | 802.3af/at |
| Uplink Type | 1G RJ45 & 1G SFP | 1G RJ45 | 1G SFP |
| Manageability | L2+ Managed | Unmanaged | L2+ Managed |
| Enclosure Size | 12 × 8 × 4" | 10 × 8 × 2" | 12 x 8 x 4” |
