LinkPower3400ATMP-T1 Outdoor Gigabit PoE Switch - 6KV Network Port Surge Protection -40~ +75°C Working Temperature IP68 Outdoor Compliant


The LinkPower™ LPS3400ATMP-T1 Series is All Weather Outdoor 6 Port High Power IEEE802.3bt Managed Gigabit PoE (Power over Ethernet) Switch, All-in-One-Box switch with dual power output redundancy, i.e., 120V~240AC and/or 48V DC, 300W and 400W total system power, depending on the models, and is the industry's first cost effective high power 802.3bt weatherproof ready high speed gigabit Ehternet switch that delivers data and power over one single network cable protected with an IP66/68 compliant weatherproof enclosure.

  1. Remote system reset
  2. QoS per port on policing, scheduler, traffic shaping, and store control
  3. Supports VLAN, GVRP, Dynamic VLAN MAC Address Authentication, IGMP, LACP Aggregation, STP, ERPS, & LLDP
  4. Port configuration, i.e., enable/disable, speed control
  5. PoE configuration, i.e., PoE modes (802.3bt)
  6. Port security, allows setting different security level on each port with password, 802.1x, IP&MAC address Guard, RADIUS, & TACACS+
  7. Port thermal protection, turn off port when temperature exceeding the setting for device protection

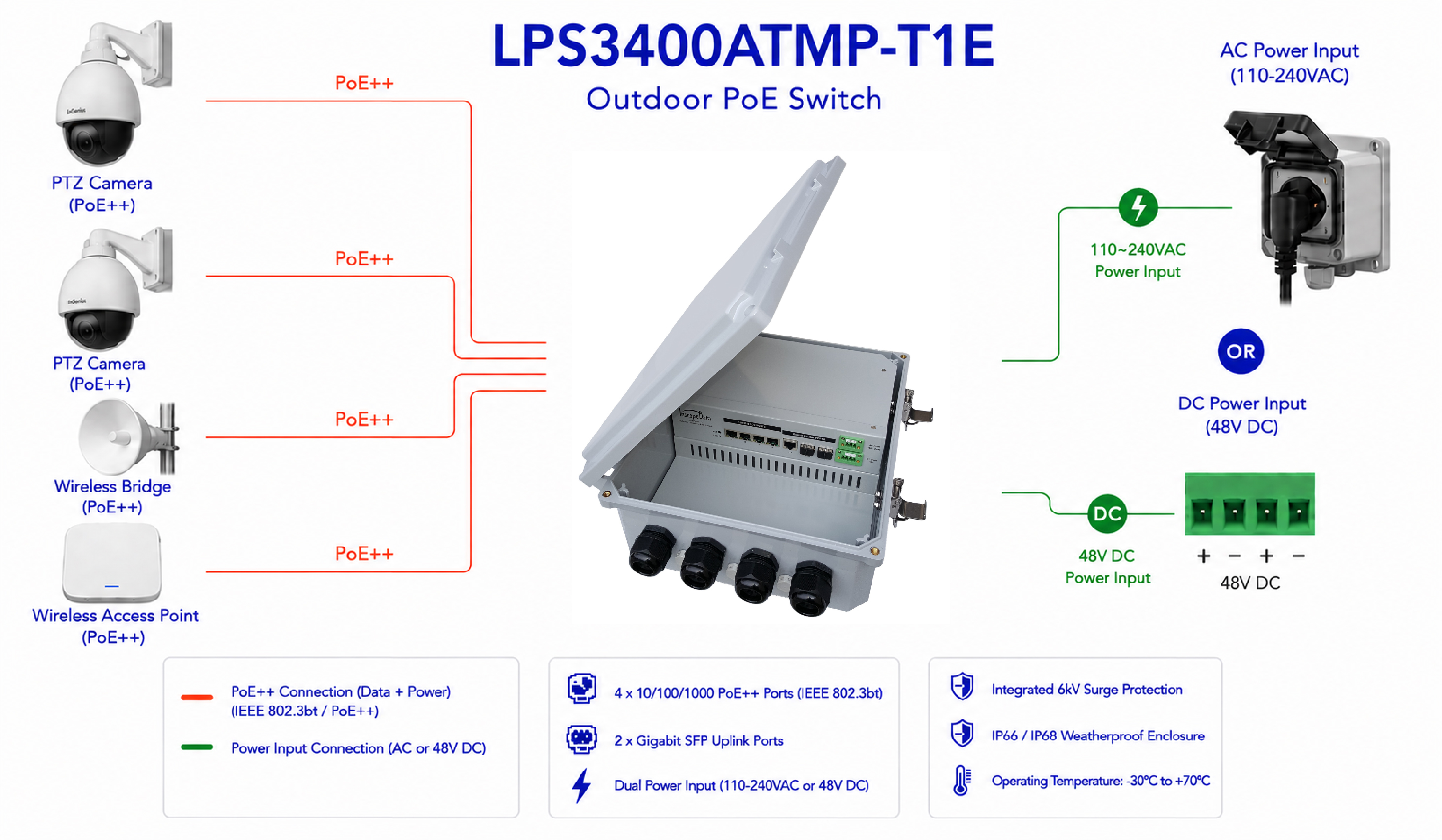

The LPS3400ATMP-T1 Managed Outdoor PoE Series is designed for outdoor industrial and commercial network applications, e.g., video surveillance, remote security, wifi/wireless mesh, and telco carrier installations.

The LinkPower LPS3400ATMP-T1 Managed Outdoor Gigabit PoE Network Switch Series offers 2 sub-models as shown below:


Product Model

Model Name Description

PoE Output


Outdoor Managed 10/100/1000Mbps 6-Port 802.3bt PoE Switch with 2 Gigabit SFP Fiber Ports, Up to 95W per PoE Port

95W per Port / 300W Total


Outdoor Managed 10/100/1000Mbps 6-Port 802.3bt PoE Switch with 2 Gigabit SFP Fiber Ports, Up to 95W per PoE Port

95W per Port / 400W Total


The LPS3400ATMP-T1 Series All Weather 6 Port Gigabit PoE Switches are manageable network switch solutions and are designed designed to meet the accelerating demand for powering the most demanding outdoor PoE devices without the requirement for the management feature. In addition, the LPS3400ATMP-T1 Series All Weather managed Gigabit PoE Switch provide LED displays that show device status for easy power management and troubleshooting. The PoE technology significantly reduces the installation cost by eliminating the separate power supply units for PoE enable network devices, thereby reducing equipment and installation costs.


  • Dual Power Input Redundancy with 120V~240AC and/or 48V DC
  • Supports 2.5Gbps on SFP 13 & 14 Uplink Ports
  • IP66/68 Compliant All Weather Enclosure and the weatherproof rating is based on the top cover closed by the hinges only or together with screws
  • MTBF:300,000 hours
  • Remote manageable, remote reset, auto pin, network statistics, and SNMP on all LPS3000-T1 models
  • Integrated Industrial 6KV Ethernet surge protection
  • Supports IEEE802.1p QoS & IEEE802.1Q
  • IEEE 802.3bt Type 4 Power over Ethernet (PoE) standard
  • 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Gigabit Power over Ethernet RJ45 ports
  • Supports 802.3bt PoE Power maximum 95W PoE++ maximum 95W and 48V DC for each PoE poty
  • Internal LEDs for individual port status: Network Activity, PoE Power, & System Power
  • Full wire-speed non-blocking, 12G for LPS3400-T1 & 48G for LPS3800/3802-T1, reception and transmission
  • 1MBit frame buffer memory and 8K entries MAC address table
  • IEEE802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
  • Supports integrated address look-up engine, automatic address learning and address aging
  • Supports Link Aggregation IEEE 802.3ad and fail over
  • Each SFP fiber port supports single mode (9/125um) fiber transmission, the transmission distance can be up to 25km( Default dual fiber, can be customized single fiber)
  • Supports Jumbo Frame in all speeds (up to 10K bytes packet frame size)
  • Operating Temperature:  -30 Degree C ~ +70 Degree C
  • Three-Year Limited Warranty

sys config

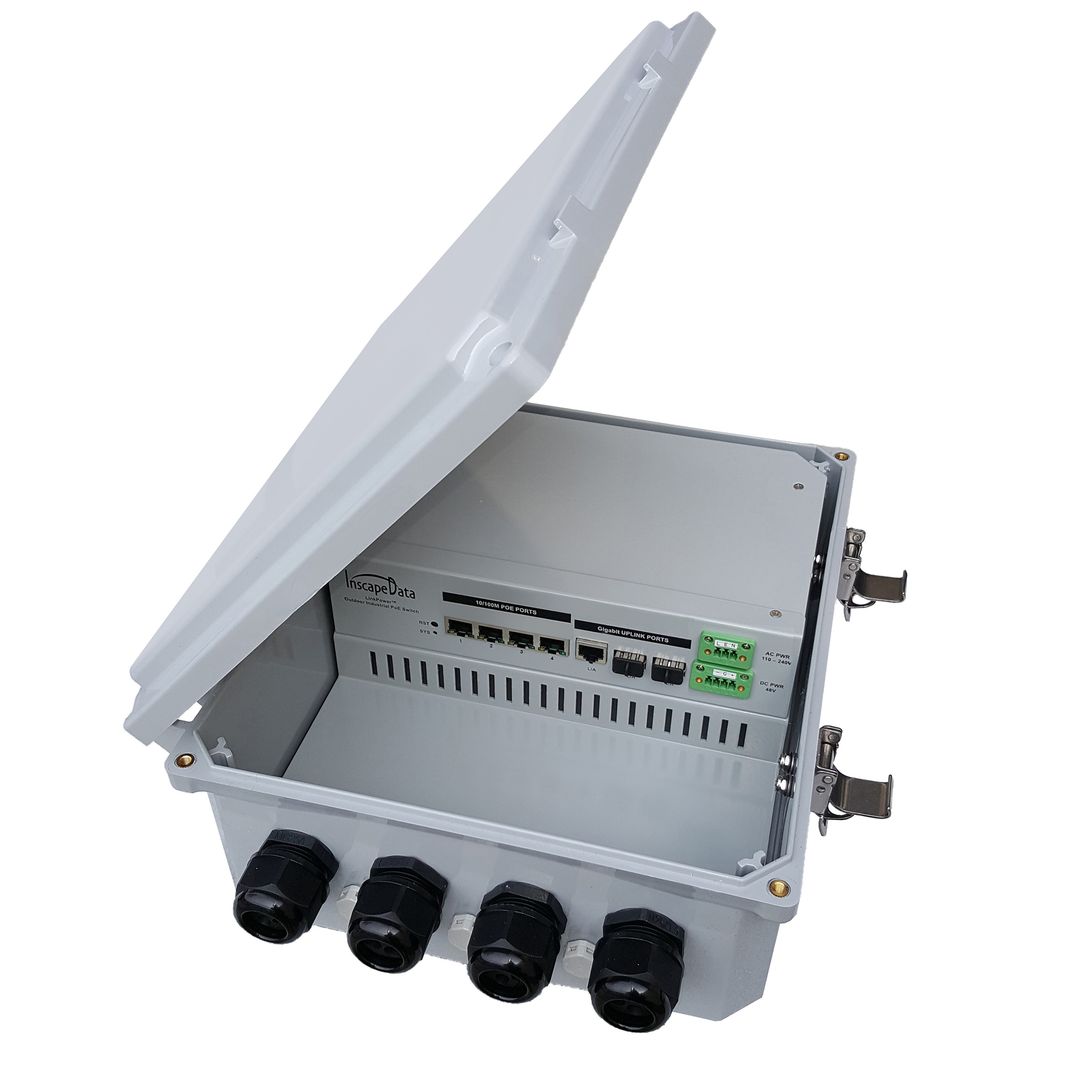

Internal View


Standard Accessories

Power & Fiber Connector Kit
Power and Fiber Connector Kit
Ethernet Connector Kit
Ethernet Connector Kit
Wall Mounting Kit

AC Power Cord Kit, U.S.

AC Power Cable Kit, US

DC Power Cord Kit, U.S. & International

DC Power Cable Kit

Optional Accessories

MMK0001-S Mast Mounting Kit


MMK0001-L Mast Mounting Kit



SFP Module Accessories

SFP Duplex 1.25Gbps 3.3V Single-Mode Transceiver

Industrial Grade | Learn more | Datasheet

SFP Duplex 1.25Gbps 3.3V Multi-Mode Transceiver
Industrial Grade | Learn more | Datasheet
