A 6-port unmanaged outdoor Gigabit PoE switch with 4× PoE ports and 2× SFP Gigabit uplink ports, protected inside an IP66/68 weatherproof enclosure for harsh outdoor deployments
4× 1G 802.3af/at PoE Ports
2× 1G SFP Uplinks
IP66 / IP68 Weatherproof
-22°F to +158°F Working Temp.

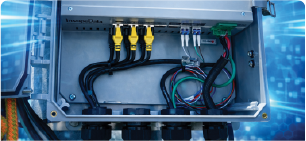

The LPS2400-T1P is designed for integrators who need reliable outdoor PoE power and network connectivity without adding external power supplies, or extra weatherproofing. It combines switching, power delivery, surge protection, and enclosure protection in one contractor-grade system.
CORE ADVANTAGE

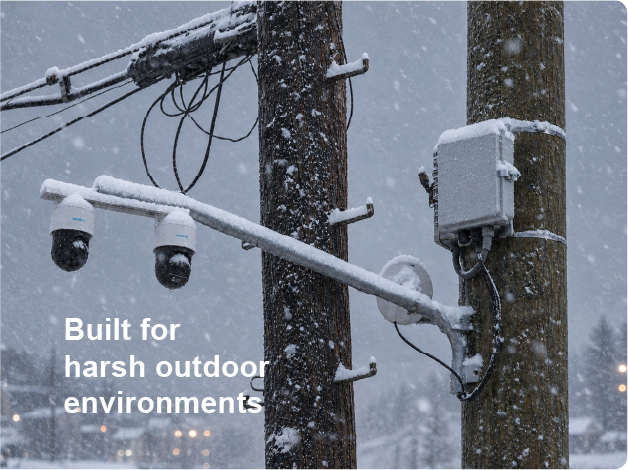

IP66 protection when latched closed and IP68 protection when the top cover is secured with screws, helping protect critical network equipment in harsh-weather environments.
INSTALLER BENEFIT

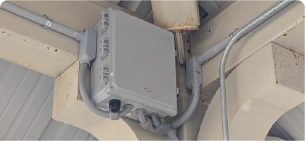

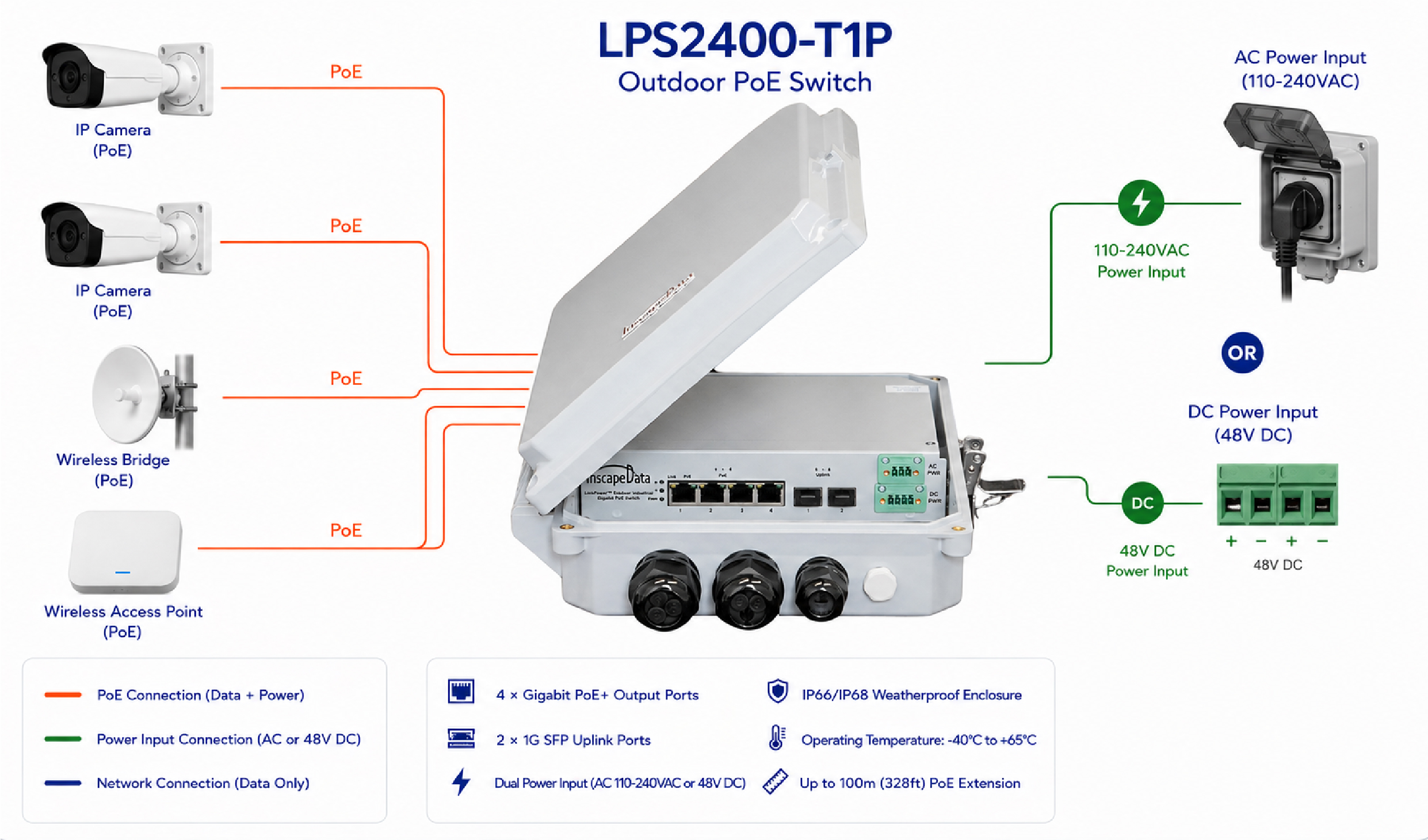

Supports outdoor camera, wireless, and remote network deployments while reducing installation complexity and minimizing external failure points
– Security Integrator
– Network Installation Partner
| Feature | LPS2400-T1P | LPS3802ATM-T1E | LPS10868ATMP-T1S |
|---|---|---|---|
| Series | Professional - T1P | Expert - T1E | Elite - T1S |
| Best For | Small outdoor deployments | Mid-size managed deployments | High-performance outdoor networks |
| Input | 120 ~ 240V AC and/or 48V DC | 120~240V AC and/or 48V DC | 120~240V AC and/or 48V DC |
| PoE Output | 802.3af/at | 802.3af/at | 802.3bt Type 3/4 |
| Uplink Type | 1G SFP | 1G SFP | 10G SFP+ |
| Manageability | Unmanaged | L2+ Managed | L2+ Managed |
| Enclosure Size | 10 × 8 × 2" | 12 × 8 × 4" | 12 × 8 × 4" |
