LPS940-T1

BUY

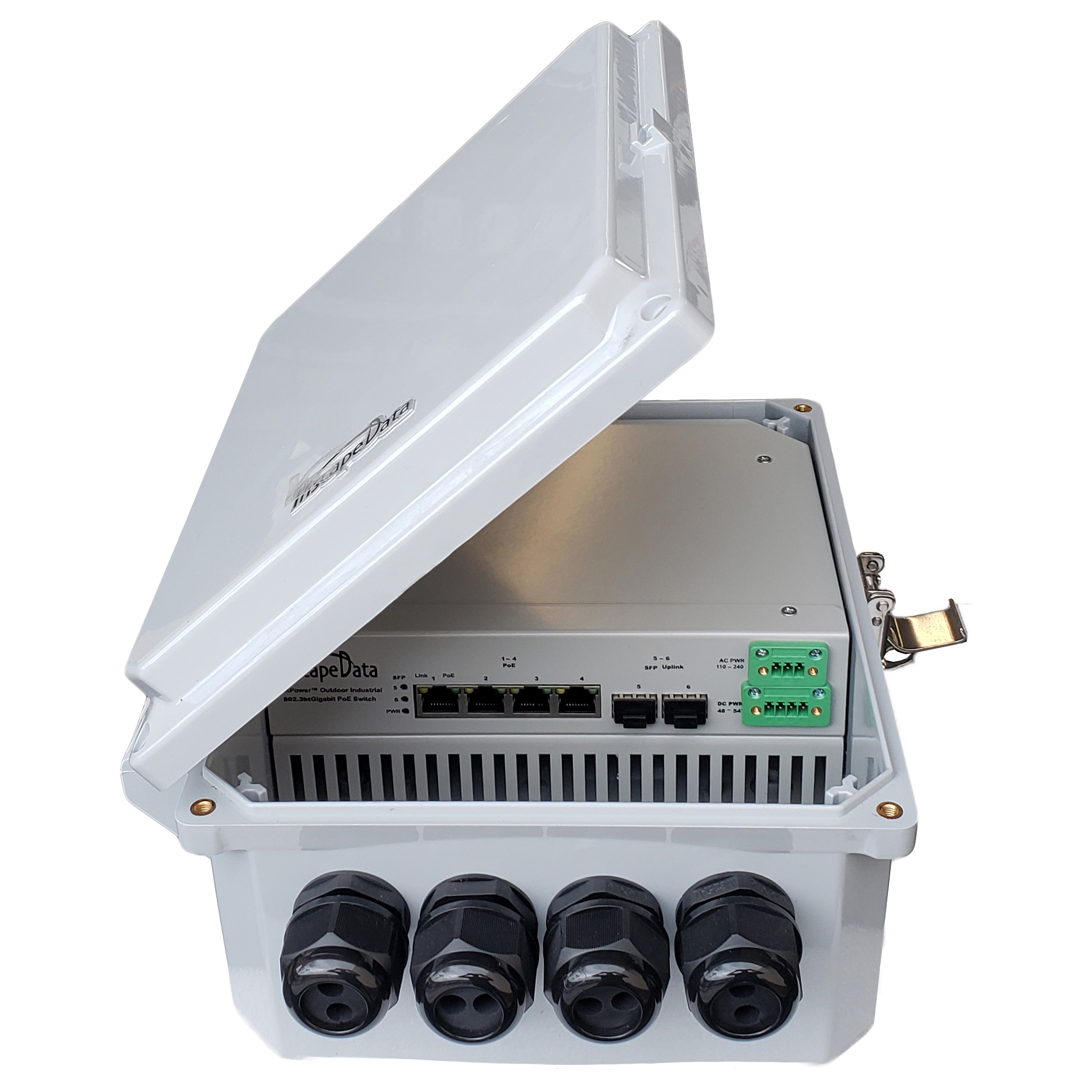

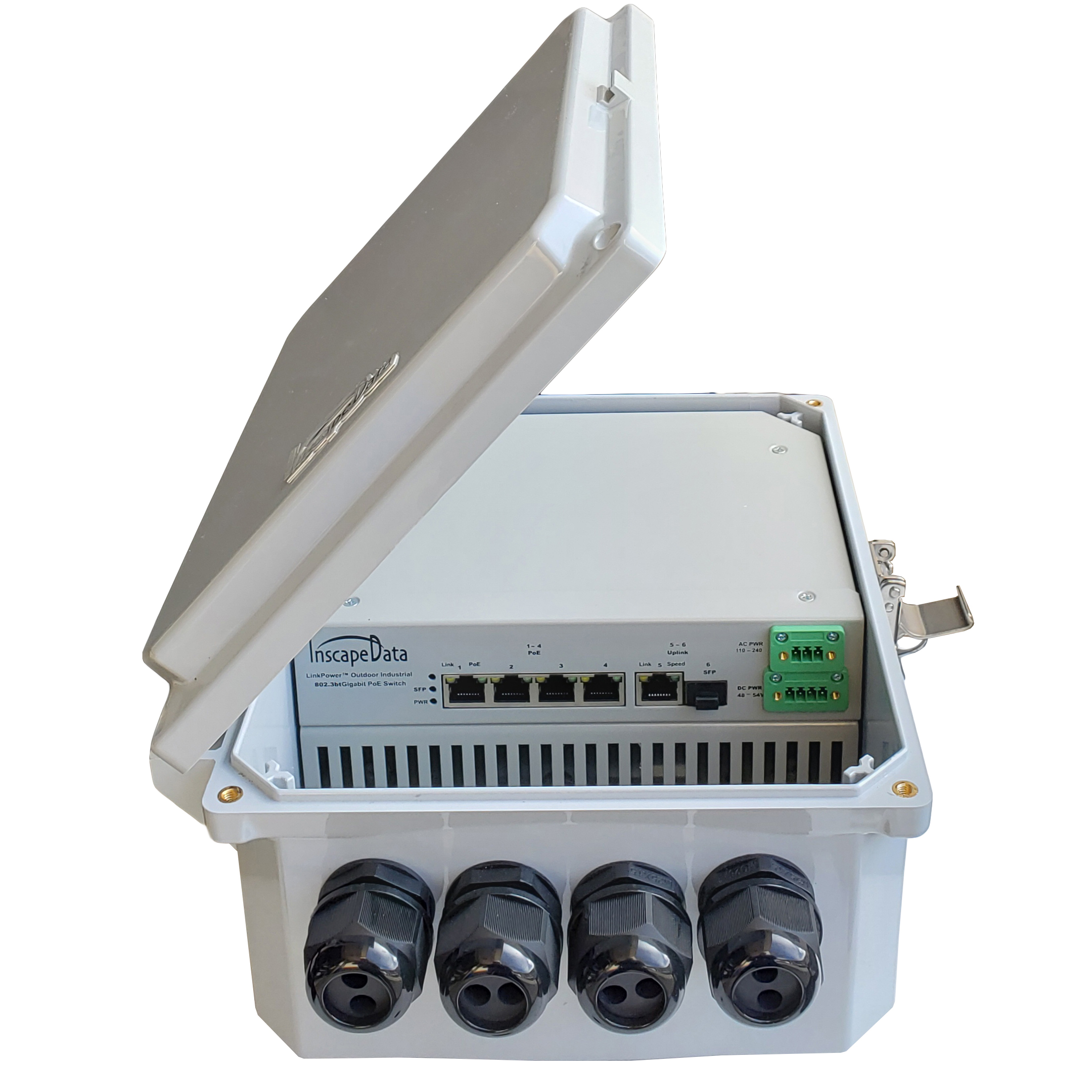

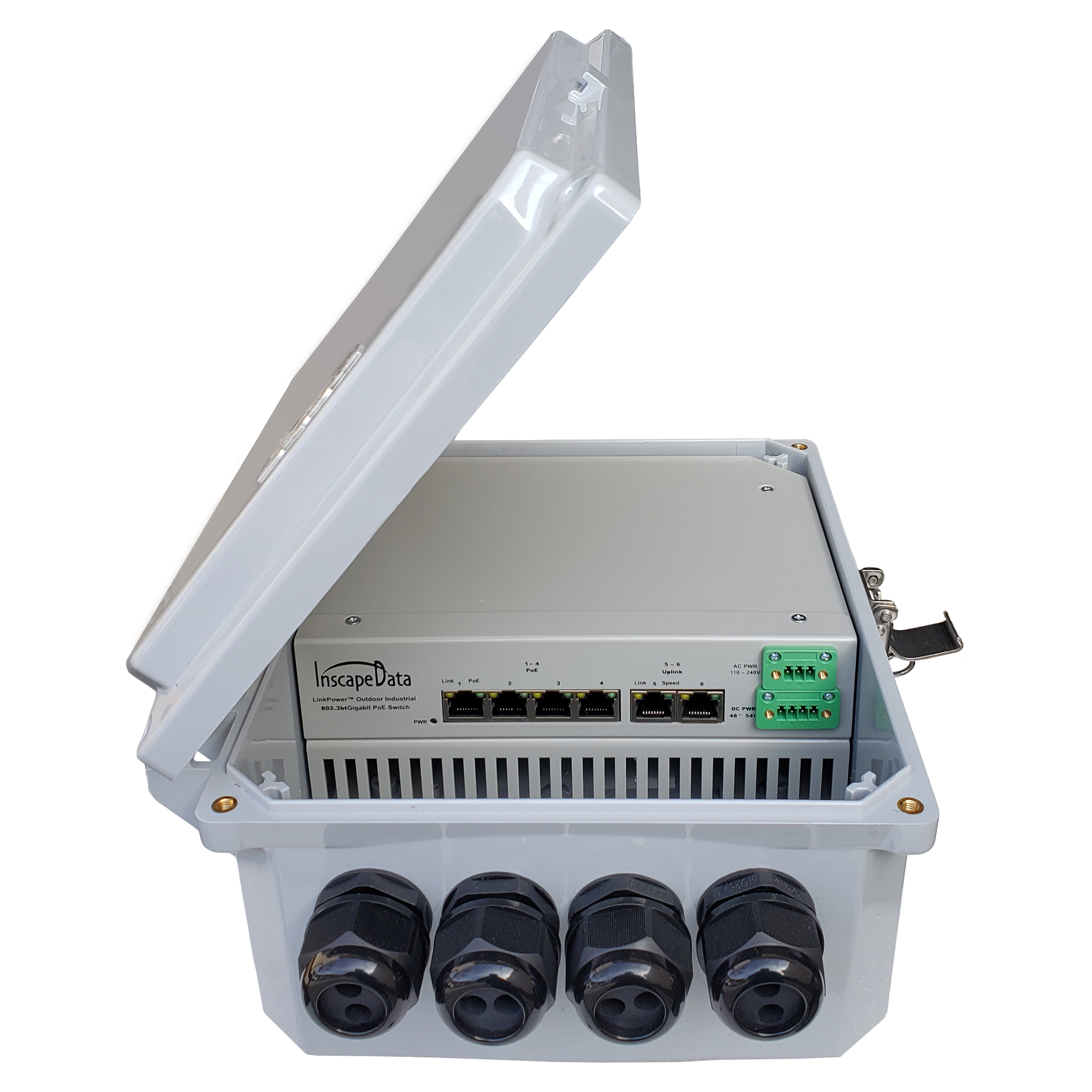

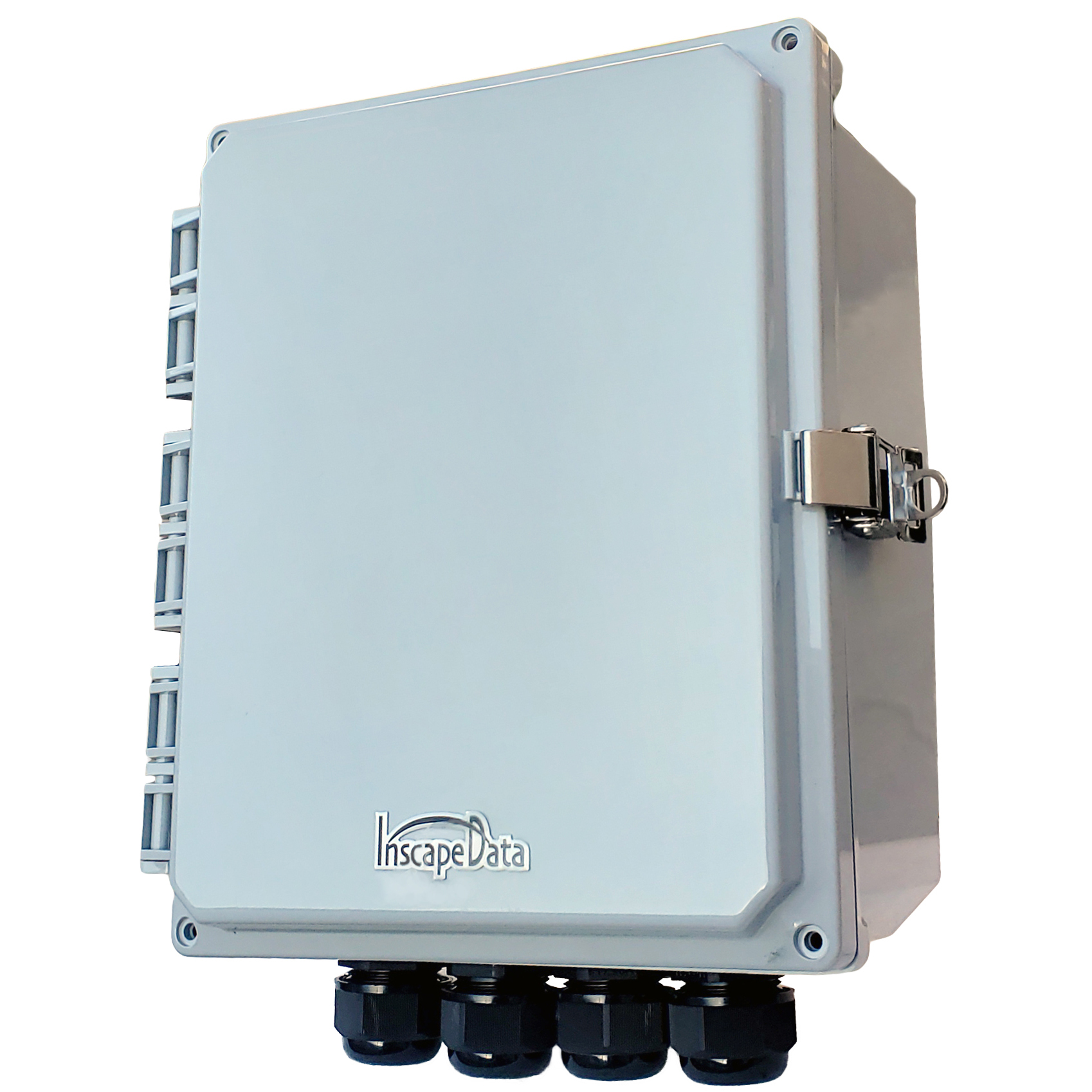

The LinkPower™ LPS940-T1 Outdoor PoE Switch Series offers from 6-Port Gigabit Unmanaged IEEE802.3bt PoE (Power over Ethernet) Network Switch with 2 Uplink Ports with RJ45 or SFP depending on the models and is the industry first outdoor weatherproof industrial Gigabit Ethernet switch that delivers data and power over one single network cable protected with an IP67 compliant weatherproof enclosure. The LPS940-T1 Gigabit PoE Series has the following six sub-models:


Product Line

Product Model

PoE Output

Model Description

LPS940-T1 Outdoor Unmanaged Gigabit 802.3bt PoE Network Switch Series

LPS940R-300-T1

90W per Port / 300W Total

Outdoor Unmanaged 10/100/1000Mbps 6-Port 802.3bt PoE Switch, 4 PoE Ports with 2 RJ45 1 Gb Uplink Ports, Up to 90W per PoE Port, 802.3bt Type 4, Not to Exceed 300W for a Total of 4 PoE Ports

LPS940F-300-T1

90W per Port / 300W Total

Outdoor Unmanaged 10/100/1000Mbps 6-Port 802.3bt PoE Switch, 4 PoE Ports with 2 Fiber SFP 1.25 Gb Uplink Ports, Up to 90W per PoE Port , 802.3bt Type 4,  Not to Exceed 300W for a Total of 4 PoE Ports

LPS940RF-300-T1

90W per Port / 300W Total

Outdoor Unmanaged 10/100/1000Mbps 6-Port 802.3bt PoE Switch, 4 PoE Ports with 1RJ45 and 1 Fiber SFP 1.25 Gb Uplink Ports, Up to 90W per PoE Port, 802.3bt Type 4, Not to Exceed 300W for a Total of 4 PoE Ports

LPS940R-400-T1

90W per Port / 400W Total

Outdoor Unmanaged 10/100/1000Mbps 6-Port 802.3bt PoE Switch, 4 PoE Ports with 2 RJ45 1 Gb Uplink Ports, Up to 90W per PoE Port, 802.3bt Type 4, Not to Exceed 400W for a Total of 4 PoE Ports

LPS940F-400-T1

90W per Port / 400W Total

Outdoor Unmanaged 10/100/1000Mbps 6-Port 802.3bt PoE Switch, 4 PoE Ports with 2 Fiber SFP 1.25 Gb Uplink Ports, Up to 90W per PoE Port, 802.3bt Type 4, Not to Exceed 400W for a Total of 4 PoE Ports

LPS940RF-400-T1

90W per Port / 400W Total

Outdoor Unmanaged 10/100/1000Mbps 6-Port 802.3bt PoE Switch, 4 PoE Ports with 1RJ45 and 1 Fiber SFP 1.25 Gb Uplink Ports, Up to 90W per PoE Port, 802.3bt Type 4, Not to Exceed 400W for a Total of 4 PoE Ports

  • Three different Gigabit RJ45 ports and SFP fiber port combination, high-speed high-bandwidth connection to meet different networking needs of various applications
  • 12Gbps Non-blocking switching capacity & 8.93Mpps forwarding rate @ 64 byte
  • Maximum PoE power per port is 90W, backward compatible with IEEE802.3af/at, automatically detect PoE devices to supply power without damaging non-PoE device
  • PoE port priority allows the switch to supply power to the high priority level port first when the power budget is insufficient and avoid overloading of the device
  • IEEE802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
  • Operating Temperature: -22ºF to +158ºF (-30ºC to +70ºC)

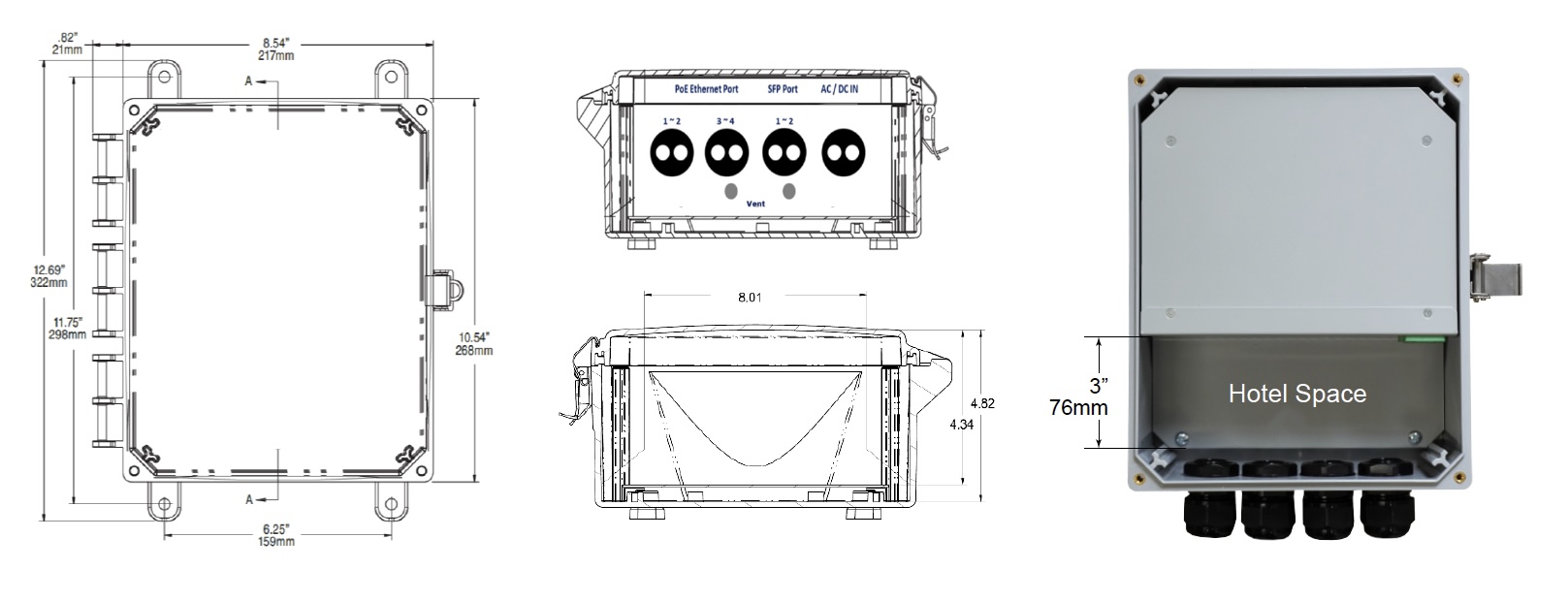

Dimensions

dimension drawing

Internal View

LPS2800 internal internal internal

LPS940R-300-T1 / LPS940R-400-T1



LPS940RF-300-T1 / LPS940RF-400-T1

LPS940F-300-T1 / LPS940F-400-T1

Standard Accessories


PFCK0001-2
2-Hole Cable Gland
Ethernet & SFP Connector Kit
Power and Fiber Connector Kit
WMK0001 Wall Mounting Kit
MMK0001
APCK-0001
AC Power Cable Kit
AC Power Cable Kit

Optional Accessories


MMK0001-L Mast Mounting Kit

Datasheet

MMK0001
APC1024 and APC1048 Active (802.3af/at) to Passive PoE Converter
APC1024 APC1048
