LPS3400ATMP Industrial PoE Switch

BUY

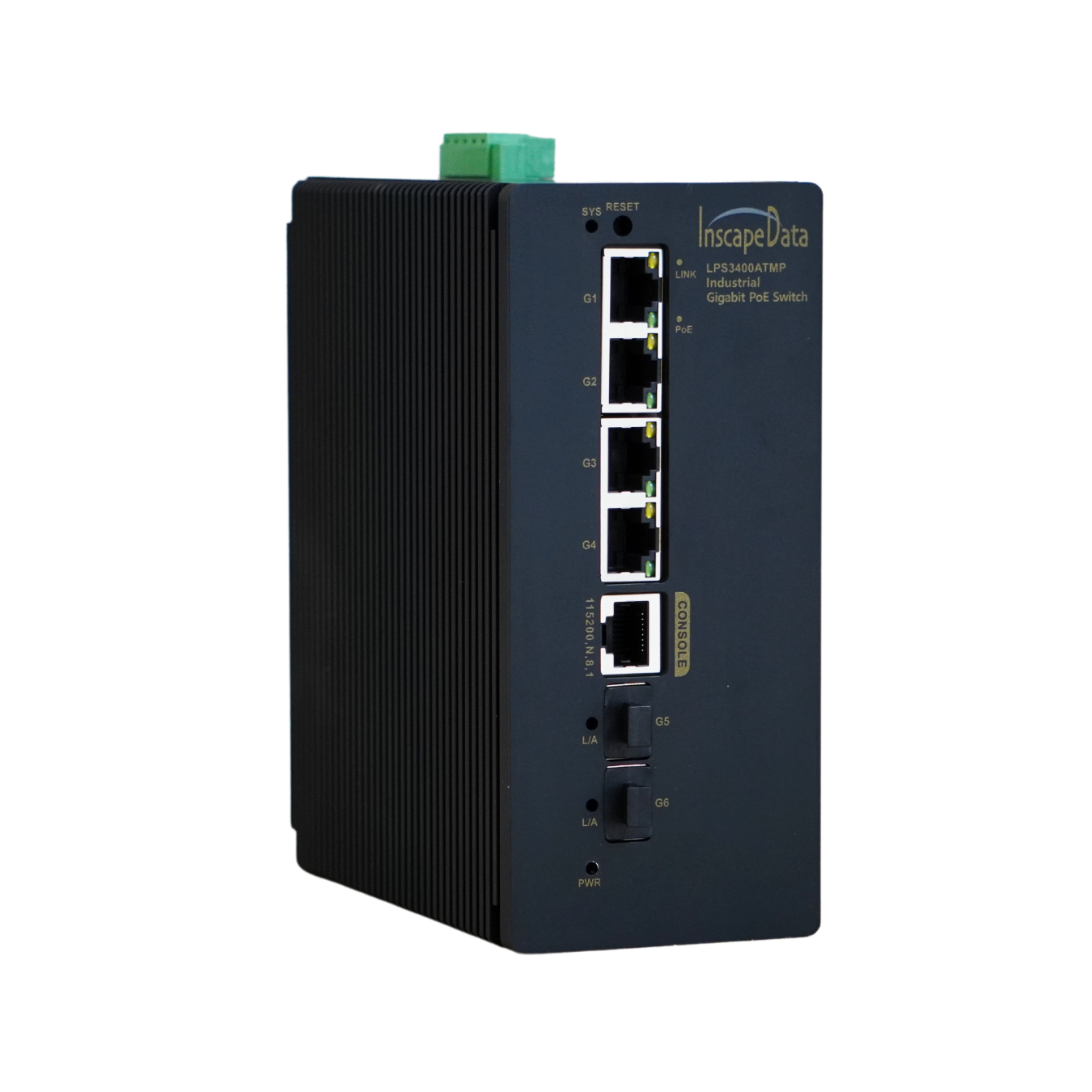

The LinkPowerTM LPS3400ATMP Layer 2+ 6-Port Managed Din-Rail Industrial PoE (Power over Ethernet) IEEE802.3bt Switch offers 4-Port Gigabit PoE with 2 SFP Uplink Port Network Switch with dual power input redundancy with 48-57V DC and up to 95W Type 4 per PoE port, over one single network cable, and the total system power is 300W. The LPS3400ATMP Industrial Layer 2+ Managed Gigabit PoE Swtich is designed for industrial and commercial applications, e.g., high performance video surveillance, high bandwidth wireless mesh, carrier wifi installations, and etc. The terminal equipment, i.e., powered devices, such as high power IP camera, high performance wireless AP and industrial IP telephony. With the two port Gigabit fiber ports, it can transfer data up to a distance of 120Km from SFP fiber port to a remote control center and the systems is also offer with powerful anti-electromagnetic interference feature. Additionally, the LPS3400ATMP Layer 2+ Managed Gigabit PoE Switch is a Managed network switch with Link Aggregation, VLAN, Trunking, SNMP, and QoS technology to meet the accelerating demand for powering the most demanding outdoor PoE devices. The LPS3400ATMP Gigabit PoE Switch provide LED displays internally that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices with multiple wires, such as Inscape Data's IP cameras and SB300/BR300, and B3000/BR3000 wireless products, thereby reducing equipment and installation costs. The LPS3400ATMP Gigabit PoE Switch offers the following key features:

KEY SYSTEM FEATURES

  • Dual Power Input Redundancy with 48-57V DC
  • Compliant to IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x,IEEE 802.1D, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p, IEEE802.1x, IEEE 802.1W, SNMP, IGMP standards
  • Four 10/100/1000M self-sensing RJ45 port, support IEEE802.3bt Type 3 & Type 4 PoE power supply function
  • Four gigabit SFP fiber ports are capable of high bandwidth and long distance transmission
  • All ports support auto-flip (Auto MDI/MDIX)
  • Each PoE port can provide power 60W and up to 95W
  • Supply 95W PoE++ DC power for powered devices compatible with IEEE802.3af/at
  • Port security, allows setting different security level on each port with password, 802.1x, IP&MAC address Guard, RADIUS, & TACACS+
  • Support IEEE802.3x full duplex flow control and duplex back pressure flow control
  • Two SFP fiber optic ports, support 2.5Gbps uplink network speed
  • 8K MAC address table, 12Gbps backplane bandwidth
  • Its 4.5KV network port surge protection can adapt to harsh outdoor environment
  • Compatible with Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocols, & Dynamic VLAN MAC Address Authentication
  • Support authentication features including TACACS+, IEEE 802.1x, HTTPS and SSH, and MAC address port locking
  • Support SNMP V1/V2c/V3 for different levels network management • Adopt RMON to effectively improve network surveillance and forecasting capabilities Auto accident report through E-mail and the output of electric relay

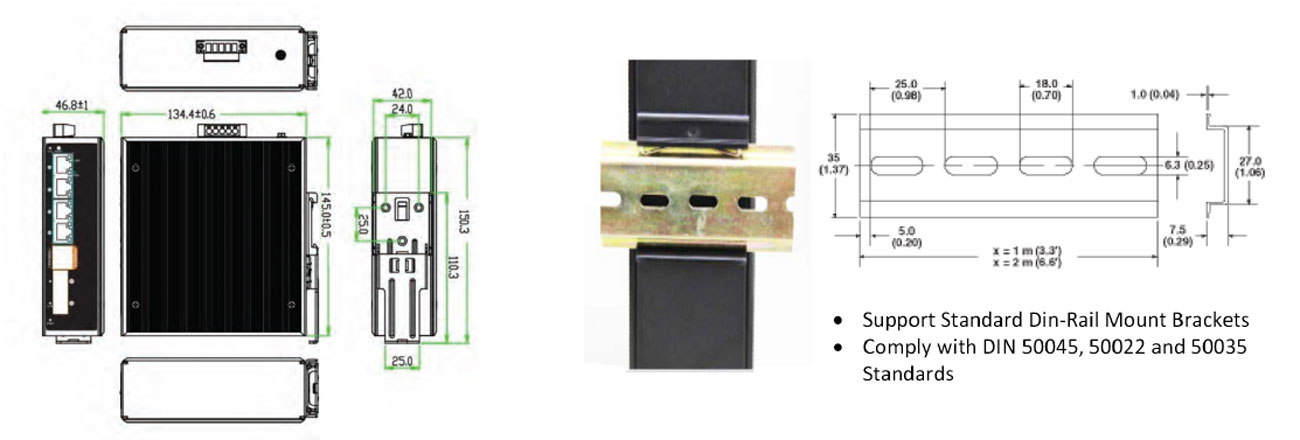

Dimensions

dimensions

Din Rail Mount

din-rail-mount
