home > products > airether dual band wireless systems > sc54

Features | Documents | Dimensions | Accessories | Related Products

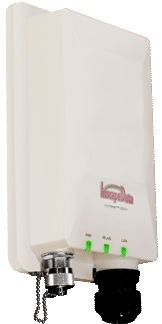

Inscape Data’s AirEther™ SC54 Dual Band Outdoor Wireless Client Bridge is designed for outdoor long-range wireless communication up to 50km. Based on the IEEE 802.11 a/b/g standards operating on 2.4GHz and 5GHz frequency with peak transmit power up to 500mW* and 300mW* respectively. The AirEther SC54 is an ideal cost-effective solution for wireless network service provider subscriber solution. The ruggedness of IP68 rated enclosure and extreme temperature ratings along with host of product features makes the AirEther SC54 the product choice for long range wireless subscriber for network service provider.

*For continuous power specification at various data rates, please refer to backside of datasheet.

» Key Features

License Free Long Range Dual Band Operation
Software Selectable 2.4 GHz or 5 GHz operation offers over 20 non-overlapping channels for the most flexible interference free application scenario without the need for regulatory frequency licensing.

Internal and External Antenna Selection
Integrated 12 dBi 2.4 GHz antenna offers nominal wireless range. If extended range up to 50km is desired, the use of an optional external 2.4 GHz or 5GHz antenna is required.

Software Selectable Internal or External Antennas

Software selectable antenna feature is determined by the user friendly GUI. When using an external antenna in either 2.4GHz or 5GHz, simply enable the antenna selection and connect to the desired extenal high gain antenna for longer range communications or use the integrated 2.4GHz 12dBi antenna.

Wireless Multimedia

Based on the IEEE 802.11e standard, Wireless multimedia (WMM) provides enhancement for voice and video over IP applications.
