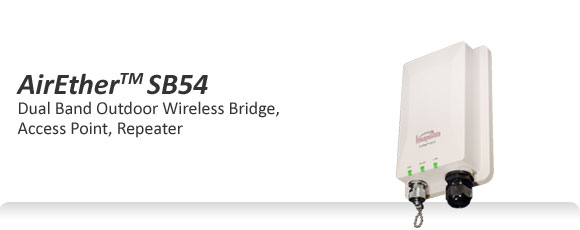

Inscape Data’s AirEther™ SB54 Dual Band Outdoor Wireless Bridge, Access Point, Repeater product is designed for outdoor long-range wireless communication up to 50km. Based on the IEEE 802.11 a/b/g standards operating on 2.4GHz or 5GHz frequency with peak transmit power up to 500mW* and 300mW* respectively. The AirEther SB54 is an ideal cost-effective solutions for building-to-building wireless communications, parking lot security, and last-mile internet subscriber applications. The SB54 product is capable of operating at one of the four modes: Access Point, Wireless Bridge, Repeater, or Client Bridge. The ruggedness of IP68 rated enclosure and extreme temperature ratings along with host of product features makes the AirEther SB54 the product choice for long range wireless networking and IP video security applications.

Our AirEther SB54 products are designed with the Power over Ethernet (PoE) feature, which allows power and data transmitted over a single network cable. This capability provides for simple, convenient installation. When you use the LPS1000 Outdoor PoE Switch and networking with any of the NVC Series Cameras, all the wireless devices and the cameras are networked within a single outdoor LAN (local Area Network). It becomes much easier to manage, integrate, install, maintain, and troubleshoot. Based on Inscape Data's patent-protected technology, our new Outdoor PoE Switch greatly lessens challenges for outdoor LAN design, integration, and deployment.

*For continuous power spcification at various wireless data rates, please refer to backside of datasheet.

back to top^

back to top^

back to top^

a. 7.5 inches

b. 4.73 inches

c. 1.84 inches

back to top^

» Accessories

Panel Antennas

Sector Antennas

WC002

Water-Tight Connector Kit

PoE Injectors

LSS0001 RF Lighting Arrestor
