home > products > wireless box camera



Package includes...

NVC210MP2 or NVC210MP2-WDN

H.264 IP Video Cameras


BR300 Wireless Radio


PCH3100HB PoE Ready Housing


PIS100 Ethernet Surge Injector

&

PIA200 Gigabit PoE Injector


WC100 100ft Outdoor shielded CAT5 Cable

Related Datasheets

Wireless

Camera

BR300 PDF

NVC210MP PDF

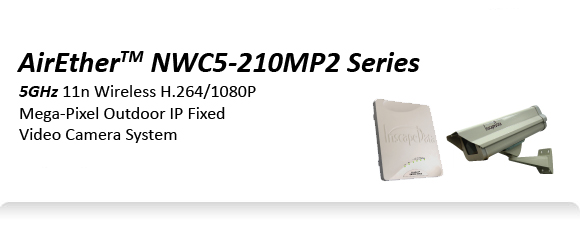

The NWC5-210MP2 Series is a professional wireless fixed day/night video camera consisting of two main parts: a long range wireless radio with 5GHz built-in 18dBi panel antenna, and a fixed IP day/night camera.  The wireless radio is compliant to IEEE802.11n standards using 5GHz frequencies and functions as a Wireless Bridge for point-to-point or point-to-multi-point communication.  The NWC5-210MP2 Series dual band wireless fixed day/night camera comes standard with a 3.5mm ~ 8mm auto-iris vari-focal lens and supports full D1 720 x 576 video resolution based on the H.264 & Motion JPEG digital video compression standards. The NWC5-210MP2 Series product offers the following four key benefits:

  1. IEEE 802.11n Standard Radio with 5GHz Frequency - Integrated with a 5GHz, 18dBi dual polarity 2x2 panel antenna, the wireless video camera system operates at the 5GHz wireless frequency with minimum interference for reliable with 300Mbps data rate and secure video transmission.
  2. Proven Cost Effective Products – Complete cost effective wireless and IP video day/night camera product ready for outdoor deployment and installation.
  3. Secure Video Transmission – Secure video transmission over wireless links by the secure MAC layer access control (ACL) and WPA2 with AES encryption (Wi-Fi Protected Access) security as a point-to-point wireless bridge
  4. All Weather Enclosures – Designed for all weather outdoor applications based on the IP66 camera and IP68 radio compliant enclosures.
  5. Friendly Solar Integration – The overall system is with an option to be powered directly by a 12V DC solar battery, and this greatly reduces overall cost for a solar installation



Wireless Features

Camera Features

802.11n

802.11n 5GHz

Day and Night

H.264, MPEG & MJPEG Triple Codec Support

Antenna

18 dBi 2x2 Integrated Antenna

PTZ

Multi-Profile Streaming

Wireless Media

Wireless Multimedia

IPCCTV

802.3af Power over Ethernet







^back to top



More Product Features

Wireless

Video Camera

Carrier Class Quality
Carrier class broadband wireless access solution provides scalability, reliability, and superior performance in the most challenging environments.



License Free Long Range 5GHz Frequency Operation
5 GHz operation offers over 20 non-overlapping channels for the most flexible interference free application scenario without the need for regulatory frequency licensing.



Integrated 18dBi 2x2 Dual Polarity Antenna
Integrated 5GHz 18 dBi 2x2 dual polarity high gain and high sensitive antenna offers longer wireless range. If extended range up to 50km is desired, the use of higher gain DA5G28M or DA5G32M antenna is optional.


Wireless Multimedia
Based on the IEEE 802.11e standard, Wireless multimedia (WMM) provides enhancement for voice and video over IP applications



Rugged Outdoor Weatherproof Design
The IP68 compliant weatherproof enclosure, connectors, and extreme weather rating electronic components continue to perform in the most extreme weather conditions.



Multi-Mode Configuration
Single device with up to four modes of operation: IEEE compliant 802.11a/b/g Access Point, Wireless Bridge, Wireless Repeater, and IEEE compliant 802.11a/b/g Client.



Power over Ethernet
The built-in PoE feature eliminates power connection at the camera location. This eliminates the need of running an additional power line cable.



Integrated RF Site Survey Tool
RF wireless site survey tool built into every radio for simplified frequency planning and installation.



Secure Wireless Transmission
Equipped with Government Strength Advance Encryption System (AES), transmission of top level information is highly secure with the AirEther outdoor wireless system.



H.264, MPGE, & MJPEG Triple Codec Operation

State of the art H.264 digital video encoding allows for the highest quality D1 video at the lowest bandwidth possible. Motion JPEG (MJPEG) and MPEG digital still video encoding allows for high quality recording



Multiprofile Streaming

High performance streaming profiles offers 3 streams of different resolution & frame rates providing IP video flexibility for the most demanding IP video applications.



802.3af Power over Ethernet (PoE)

Run up to 300 feet or 100 meter of network cable away from the power source with optional 48VDC PoE Injector



Wide Dynamic Video Technology

To ensure details of high contrast scenes to appear clear with accurate color in both bright and dark areas simultaneously. The suite of functions from the embedded streaming web server make accessing real-time video easy from any Internet Explorer enabled computer



Synchronized Audio/Video and Two-Way Audio Communication

Audio line in and line out interface(s) with software selectable audio feature provides synchronized audio surveillance and announcement capabilities from the monitoring station



Event Driven Real-Time Notification

The integrated sensor input, alarm output, and video motion detection provides actionable event trigger functionality able to send a video clip via email or FTP and turn on/off external relays



Embedded Streaming Web Server

The suite of functions from the embedded streaming web server make accessing real-time video easy from any Internet Explorer enabled computer



Optional flash memory for local storag
