home > products >airgoggle > nvc1020mp2

0

Mounting | Dimensions | Related products



Datasheet Application Note

Key Features

Day and Night

H.264, MPEG & MJPEG Triple Codec Support

PTZ

2 Megapixels

IPCCTV

Multi-profiling

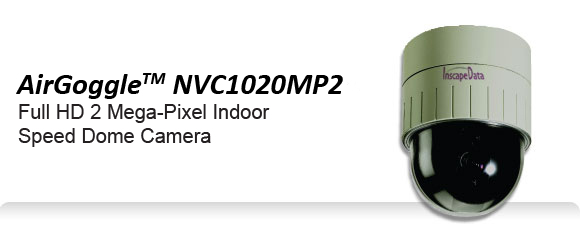

AirGoggle NVC1020MP2 Full HD 2 Mega-Pixel Speed Dome Camera uses a triple codec supporting H.264, MPEG & Motion JPEG digital video compression standards. With full HD 1980x1080 H.264 video resolution and efficient network real-time streaming, the NVC1020MP2 PTZ speed dome IP video camera provides high quality digital video without the high demand of network bandwidth. Standard features sets of the NVC1020MP2 include selectable ADPCM audio, event-driven recording video motion detection or quad external sensor inputs, pan / tilt / zoom to 165 preset location, and integrated IP video web server. In addition, the NVC1020MP2 model is designed with a Pixim CMOS WDR Image Sensor for viewing in extreme lighting situations and more clearly in darkness, and it provides excellent resolution and color accuracy allows better object and person identification.



The AirGoggle NVC1020MP2 are offered in optical zoom lens, filter changeable day & night, or wide dynamic digital imaging optics. The rugged mechanical design, along with a host of convenient features, makes the high-performance AirGoggle NVC1020MP2 ideal for professional security surveillance applications.



back to top ^

Mounting Specifications

The following table shows the parts to include when using each specific mounting method.

Wall Mounting

Wall Mounting with Junction Box

Wall Mounting

with

Junction Box & Wiring Kit (1)

Pole Mounting

Corner Mounting

Embedded Mounting (2)

Ceiling Mounting

SDGHA001SDGHA001

Indoor Wall Bracket Kit

SDGHA001SDGHA001

Indoor Wall Bracket Kit

+

SDJB001SDJB001

Junction Box

SDGHA001SDGHA001

Indoor Wall Bracket Kit

+

SDJBPC001SDJBPC001

Junction Box with PCB and Cable

SDGHA001SDGHA001

Indoor Wall Bracket Kit

+

SDPA001v2SDPA001v2
Outdoor Pole Mount Adaptor

SDGHA001SDGHA001

Indoor Wall Bracket Kit

+

SDPA001v2SDCA001v2
Outdoor Pole Mount Adaptor

SDEM001SDEM001
Indoor Embedded Mount Bracket

SDPHM001SDPHM001

Indoor Ceiling Bracket Kit

(1) Wiring kit junction box for Ethernet, Power, Relay, I/O Port, RS485



Dimensions



a. 128mm
b. 203mm
c. 121.7mm

d. 147mm
