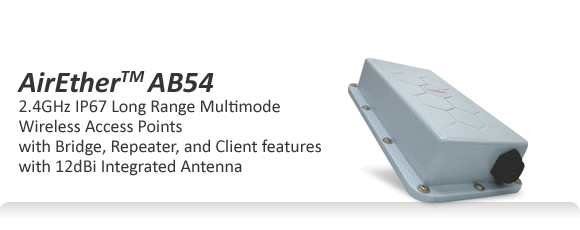

AirEtherTM AB54 / AB54E / AB54E Pro
|
Long Range Wireless Base Station |
| IP67/68 Certified All Weather Enclosure |
| Datasheets |
 |
Datasheet |
| Firmware Upgrades |
 |
Version 1.2.3 |
| Software |
 |
AirEther Location Utility v2.2.2 |
| Application Notes |
 |
How to build an outdoor wireless network using AirEther products |
|
Waterproof Connector Assembly Diagram for AB54 and AB54E |
|
Antenna Again Analysis Tool - help you to determine antenna gain and select a best antenna |
|
Effective Deployment of Integrated Wireless Network Video Systems for the Homeland Security and Government Sectors
|
|
Effective Deployment of Integrated Wireless Network Video Systems for the Transportation and Networked Campuses Sectors |
|
Effective Deployment of Wireless Backhaul and Hotspot Base Station Systems |
|
|
|
The AirEther™ AB54, AB54E and AB54E Pro are low cost wireless base station products, and the products are designed for carrier class outdoor wireless applications capable of operating at one of the four modes, such as Access Point, Wireless Bridge, Repeater mode or Long Range Client Bridge. The AB54 and AB54E are manufactured with an IP67 certified weatherproof enclosure and the AB54E Pro is manufactured with an IP68 certified weatherproof enclosure and all of these systems are designed for Near Line of Sight conditions. The radio performance of the AirEther AB54, AB54E, and AB54E Pro is designed and optimized for long range and high throughput wireless communications based on the IEEE 802.11 b/g standards.
The AirEther AB54 and AB54E Outdoor Wireless Access Point, Wireless Bridge, Repeater and Client Bridge offer a high performance, robust, and extensive wireless coverage area that is an ideal outdoor Wireless Client Bridge solution for operating in a point-to-point mode and supporting point-to-point topology for the following environments:
- Airports
- Campuses
- Stadiums
|
- Public Parks
- Marinas
- Beaches
|
- Building to Building
- Convention Centers
- Security & Surveillance
|
|
 |
 |
 |
| AB54 |
AB54E |
AB54E PRO
Up to 1W tx power
|
Antenna Selection
Inscape Data offers the AirEther Panel, Sector and Omni series of high gain and cost-effective antennas designed specifically for
1) Point-to-Point
2) Point-to-Multipoint
3) long haul Point-to-Point wireless communications
|
| To get a recommended1 antenna gain based on a noise level and distance,
please click here |
For Point-to-Point applications, depending on the desired beamwidth, radio coverage and distance, you should select one of the following three types of AirEther antennas:
- Panel Antennas
For Point-to-Multipoint applications, depending on the desired beamwidth, radio coverage and distance, you should select one of the following two types of AirEther antennas:
- Panel Antennas
- Sector Antennas
|
Ideal Wireless Bridge/Router Solutions
The Most Economical Long Range Outdoor Wireless Backhaul and Bridge/Router Solutions
The AirEther AB54/ AB54E/ AB54E Pro is the most robust and affordable 54 Mbps wide area wireless bridge/router and is an ideal solution for public parks, outdoor shopping malls, marinas, stadiums and other outdoor venues. The AirEther AB54/ AB54E/ AB54E Pro are IP68 certified and built with die-cast all-weather housing that is dust-proof and protected from strong water jets and/or constant immersion. The AirEther AB54/ AB54E/ AB54E Pro easily provides an outdoor wireless backbone to the Internet or LAN. With the AirEther AB54, Internet Service Providers can cost-effectively deploy last mile access networks for business and residential customers in medium-sized communities.
Flexible Backhaul Systems to Expand Wide Area Wireless Networks
The AirEther AB54/ AB54E/ AB54E Pro offers flexibility and can function as either a wireless bridge or a wireless router, connecting LANs to remote buildings and locations. The economical backhaul alternative to a leased line, the AirEther AB54/ AB54E/ AB54E Pro can function reliably as a wireless backhaul to link and network remote branch offices, creating a wide area wireless LAN for your wireless communication needs.
Secure and Reliable Outdoor Network Extension and Backhaul Applications
The AirEther AB54/ AB54E/ AB54E Pro provides secure and reliable connectivity with IEEE 802.1x authentication and 64/128-bit WEP and WPA with TKIP & AES 152-bit encryption between wireless clients, e.g. laptops, PDAs and LANs. The system can be easily integrated into existing networks and network management systems. The IEEE 802.1b SSID is hidden for site survey presentation. Firewall features include a MAC address filter, DoS and IP-based access control.
|
Features and Benefits
|
- IP cofiguration software designed with user friendly GUI for easy configuration of the wireless system, such as factory default setting, IP address setting, and wireless setting
- Allow either vertical or horizontal antenna polarity alignment
- The AirEther AB54E Pro offers 30 dBm transmit power (i.e., 1W) when operating under the 802.11b mode, and it offers 27 dBm transmit power (i.e., 500mW) when operating under the 802.11g mode (FCC only)
- The AirEther AB54E and AB54E Pro offer an external N-Female antenna for using with more flexible antennas, such as high gain omni directional or a more narrow beamwidth sector antenna
- Supports WPA and WPA-PSK with AES and TKIP, 152-bit encryption for the highest data security
- Easy to install with cost effective Power over Ethernet (PoE)
- Low profile enclosure designed for minimum wind resistance
- Trasmit power control for optimal long range radio performance
- The AirEther AB54 is designed with a built in 12 dBi directional panel antenna and AB54E/Pro with type N female antenna connector
- Compliant to the IEEE 802.11 b/g standards, DSSS for 802.11b mode radio operations and OFDM technology for 802.11g mode radio operations, and support Super G mode for up to 108 Mbps of data rate
- Built in site survey and management tools for simplified installations and operations of wireless system
- Swivel mounting accessories provide an out-of-the-box solution for quick and easy installation
- IP67 certified all weather housing for outdoor environments; protected by a heavy-duty UV stable glass filled Polycarbonate plastic housing • Fully weatherized outdoor unit operates in temperatures ranging from -22ºF to+180ºF (-30ºC to +70ºC)
|
1 The recommended antenna gain is to be used for reference only.
2The distances referenced here are approximate and are to be used for estimations only.
|
|
